DTC Troubleshooting

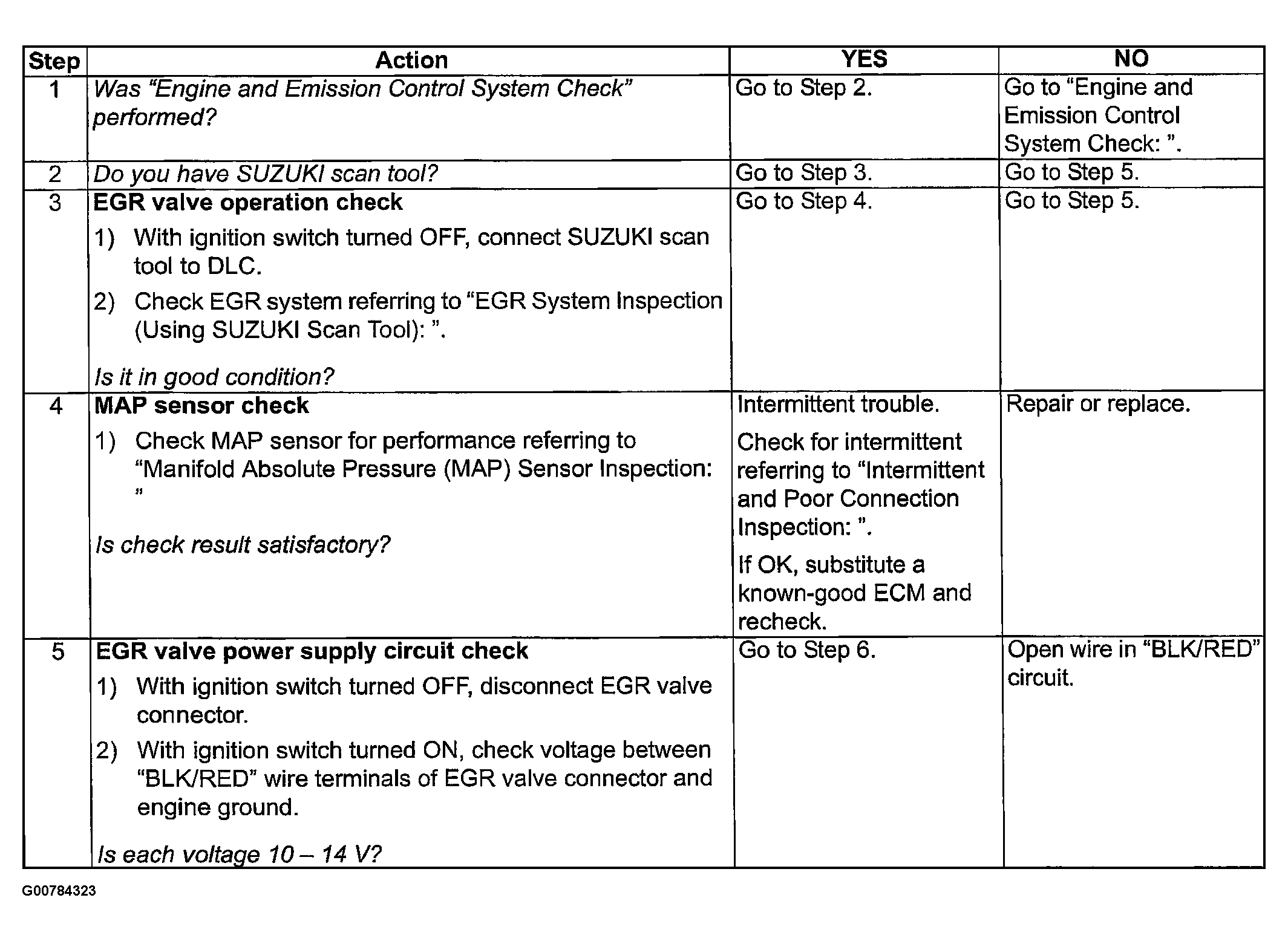

Fig 1: DTC Troubleshooting Chart (1 of 2)
G00784323Courtesy of SUZUKI OF AMERICA CORP.

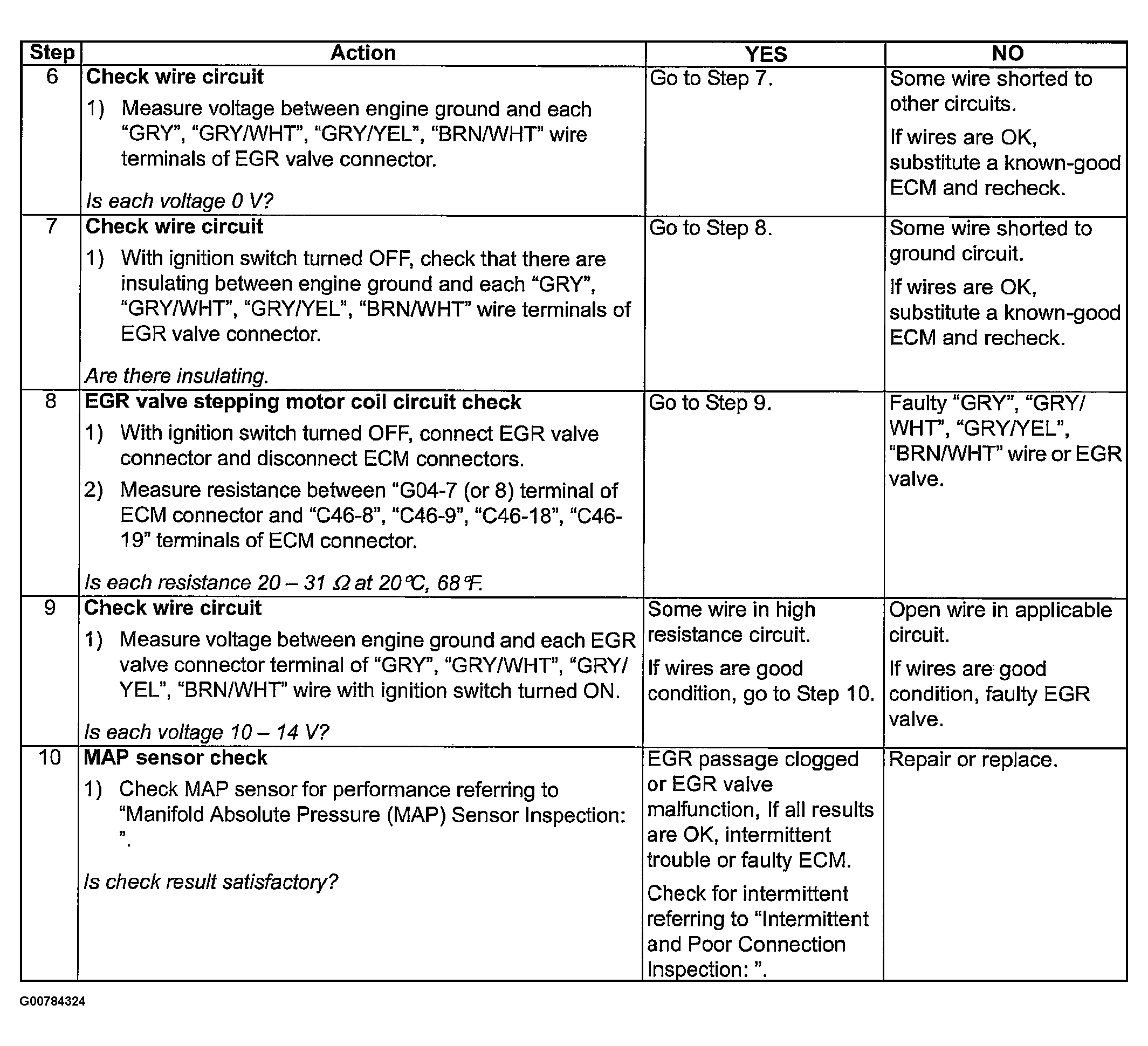

Fig 2: DTC Troubleshooting Chart (2 of 2)
G00784324Courtesy of SUZUKI OF AMERICA CORP.
