System/Wiring Diagram

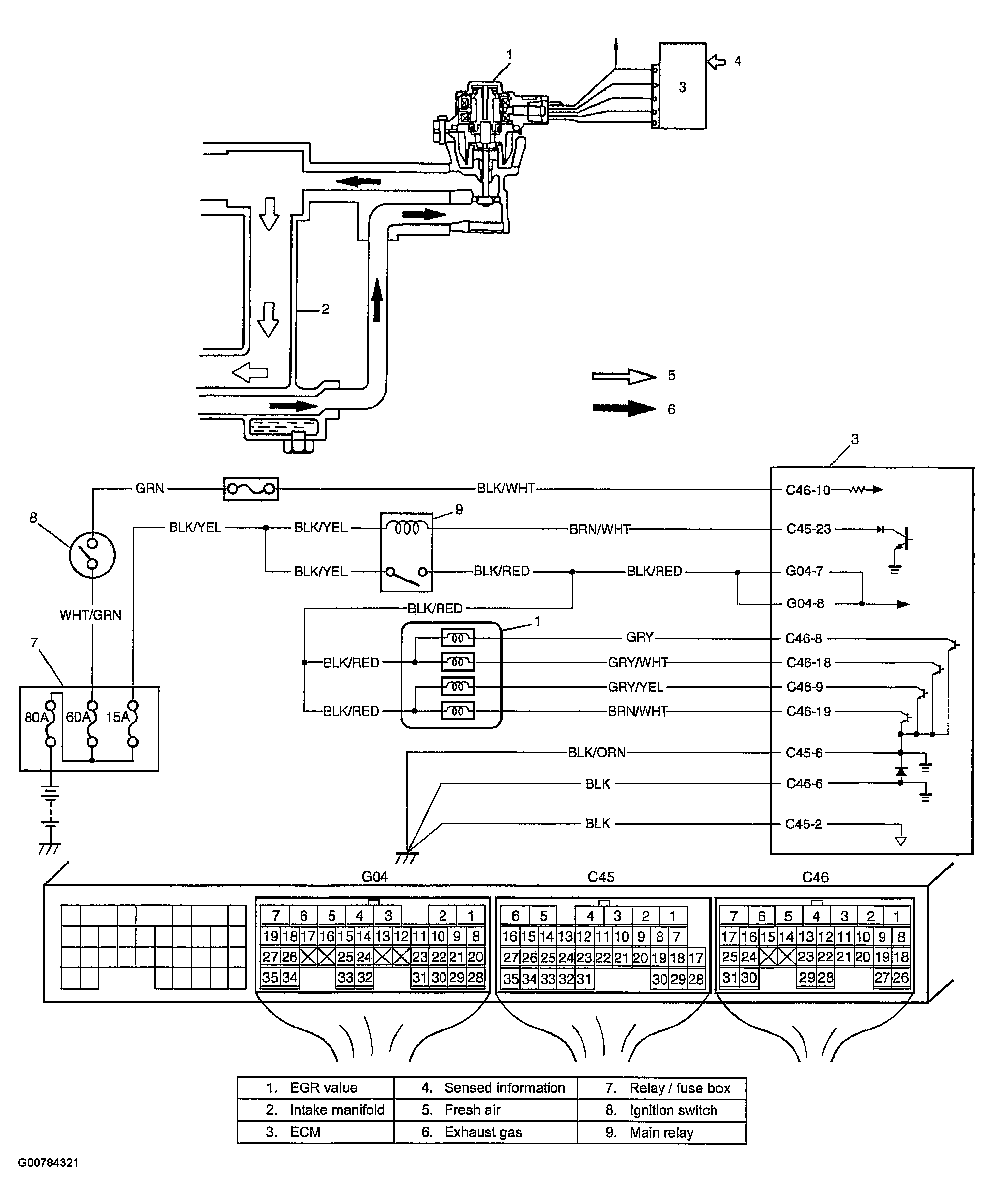

Fig 1: DTC P0401/P0402 Exhaust Gas Recirculation Flow Insufficient/Excessive Detected - System Wiring Diagram
G00784321Courtesy of SUZUKI OF AMERICA CORP.
