System/Wiring Diagram

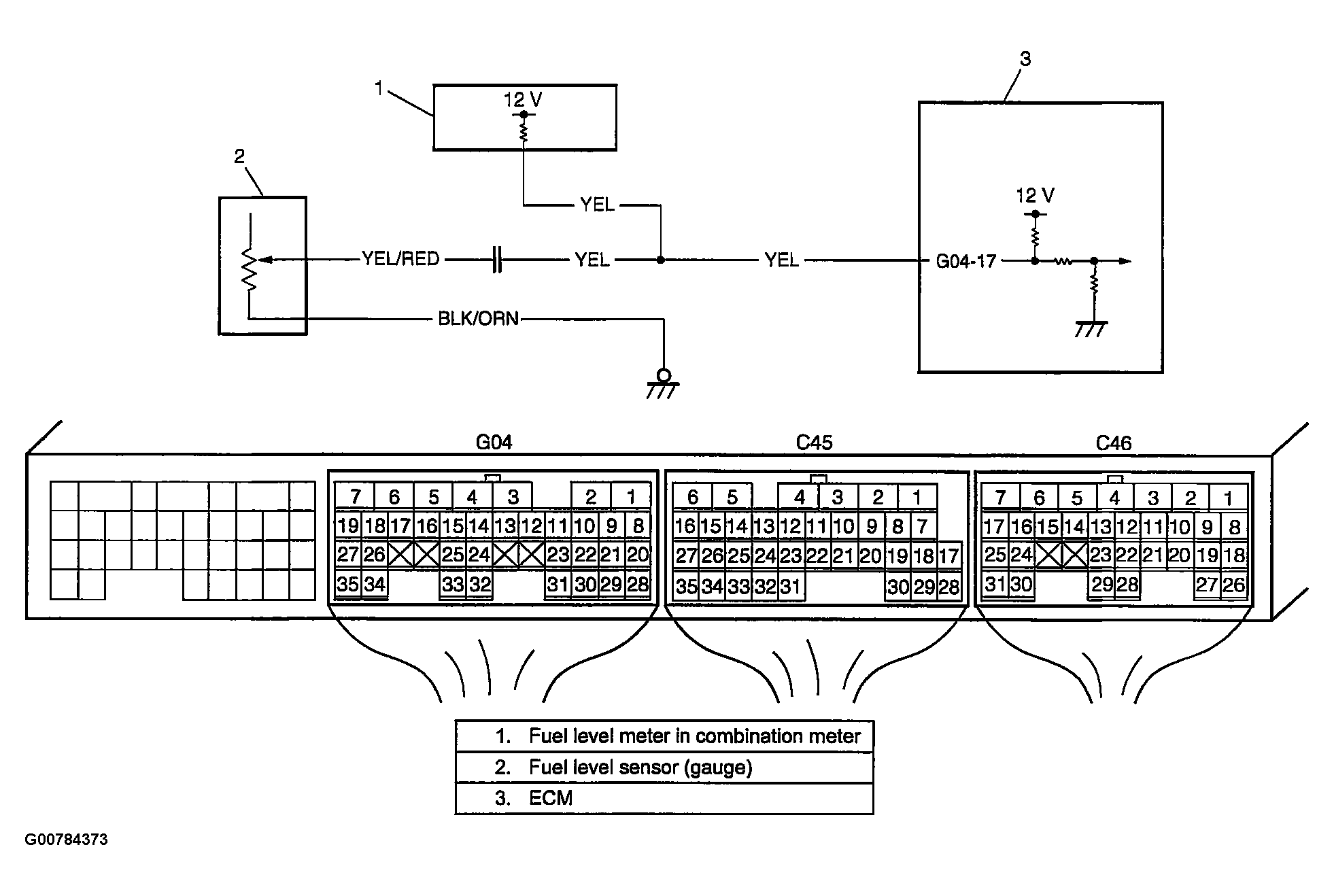

Fig 1: DTC P0463 Fuel Level Sensor Circuit High Input - System Wiring Diagram
G00784373Courtesy of SUZUKI OF AMERICA CORP.
