Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

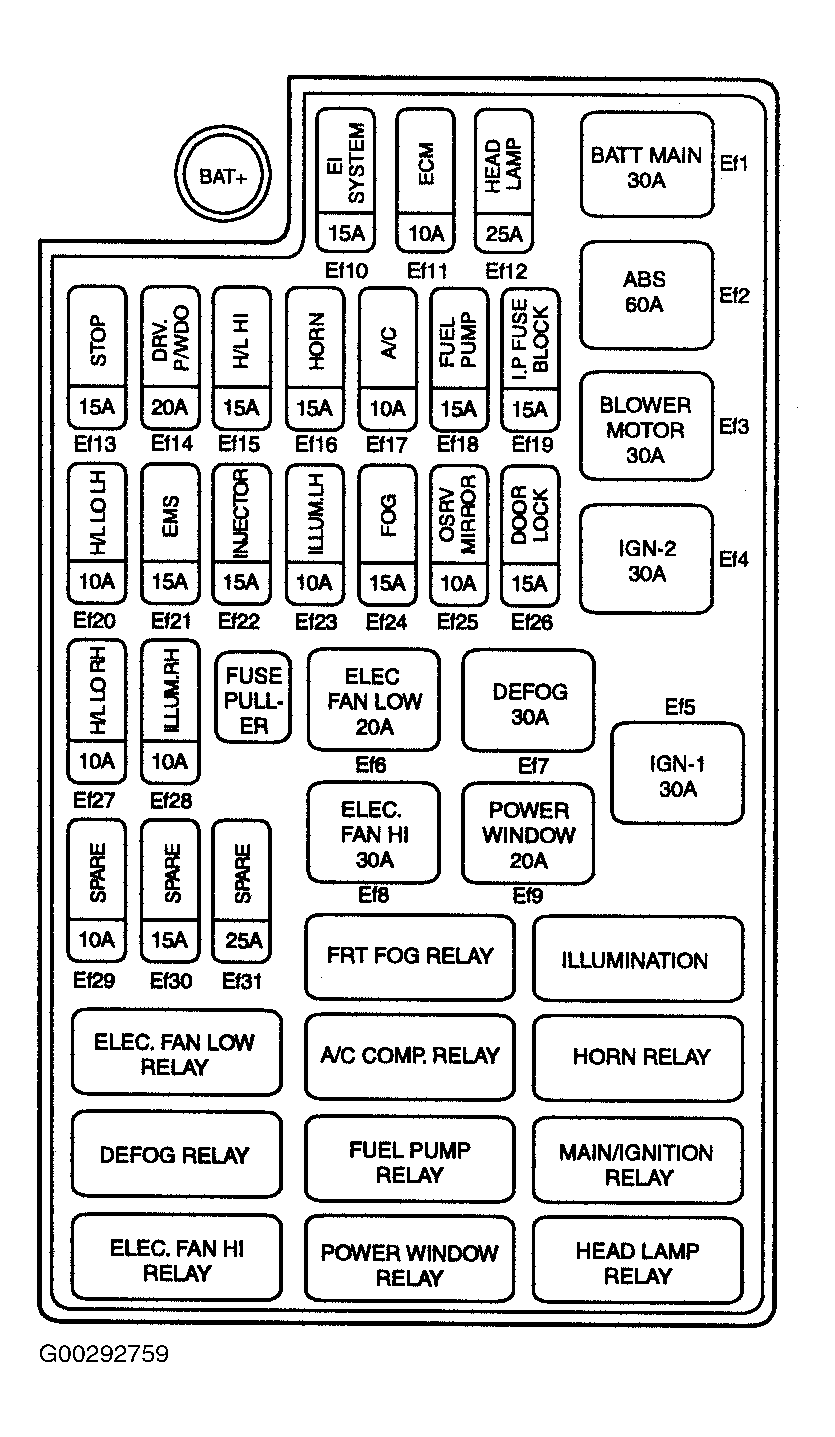

Fig 1: Engine Room Fuse & Relay Block

Courtesy of SUZUKI OF AMERICA CORP.

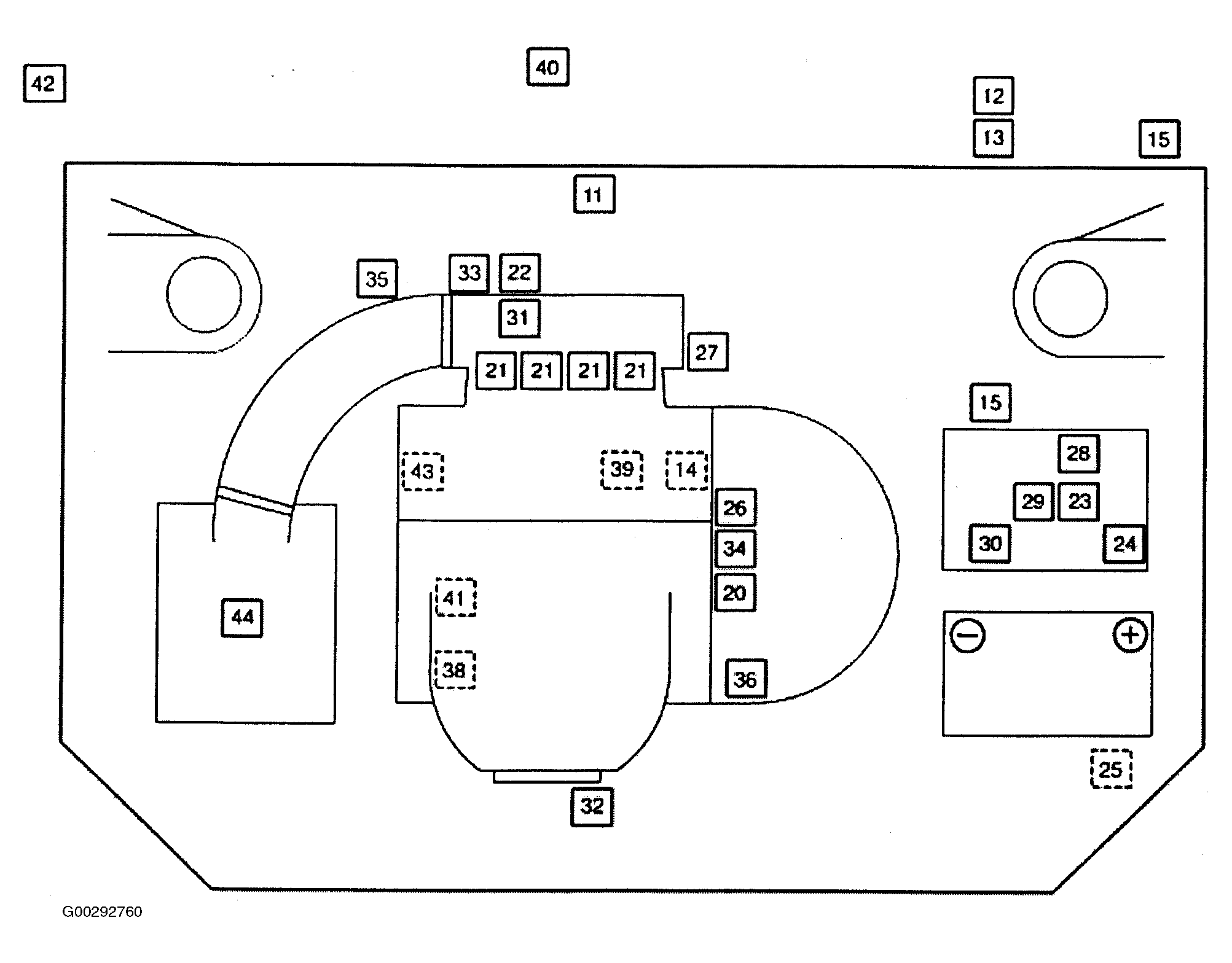

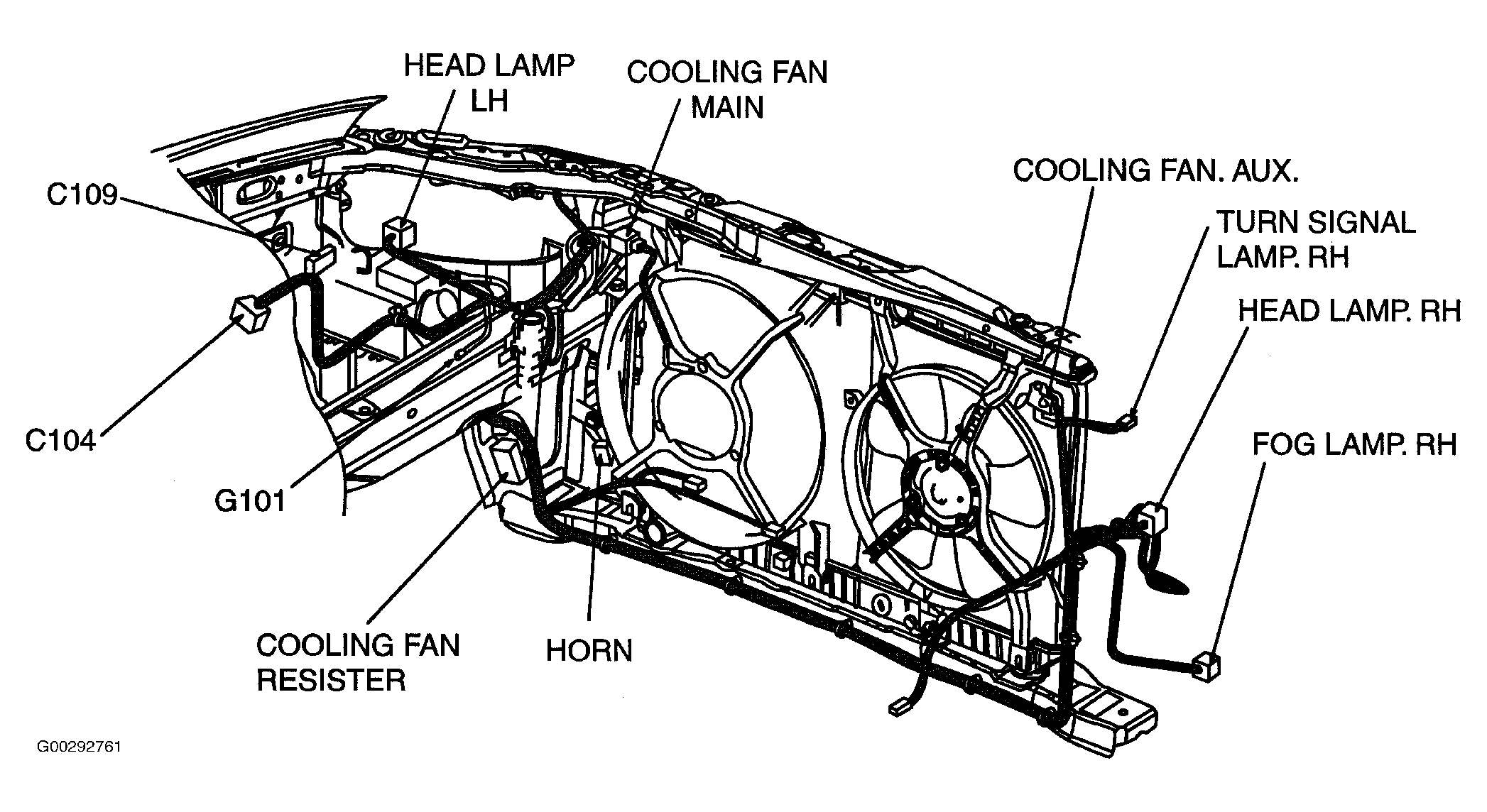

Fig 2: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Left Front Of Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

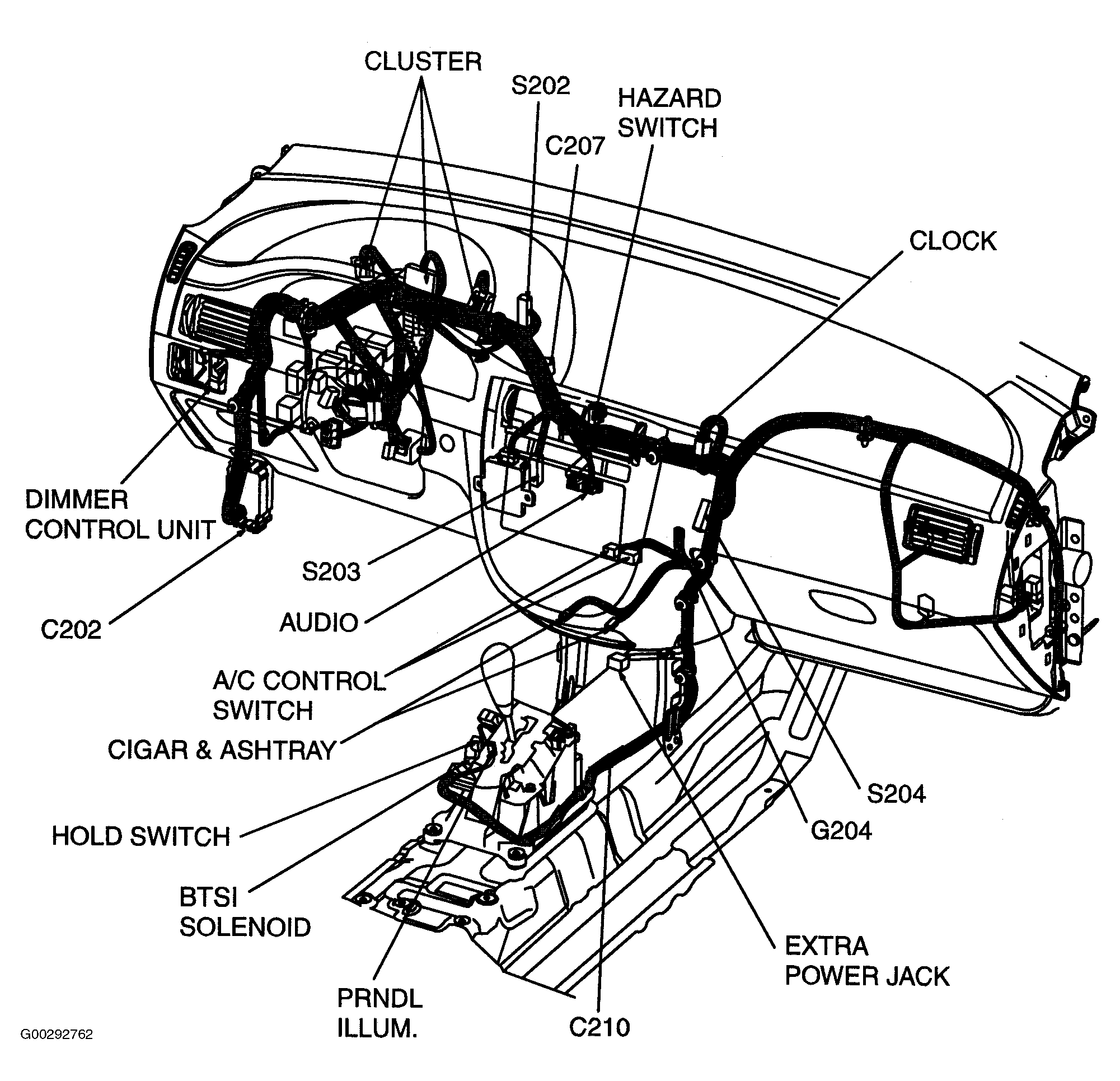

Fig 4: Dash & Center Console

Courtesy of SUZUKI OF AMERICA CORP.

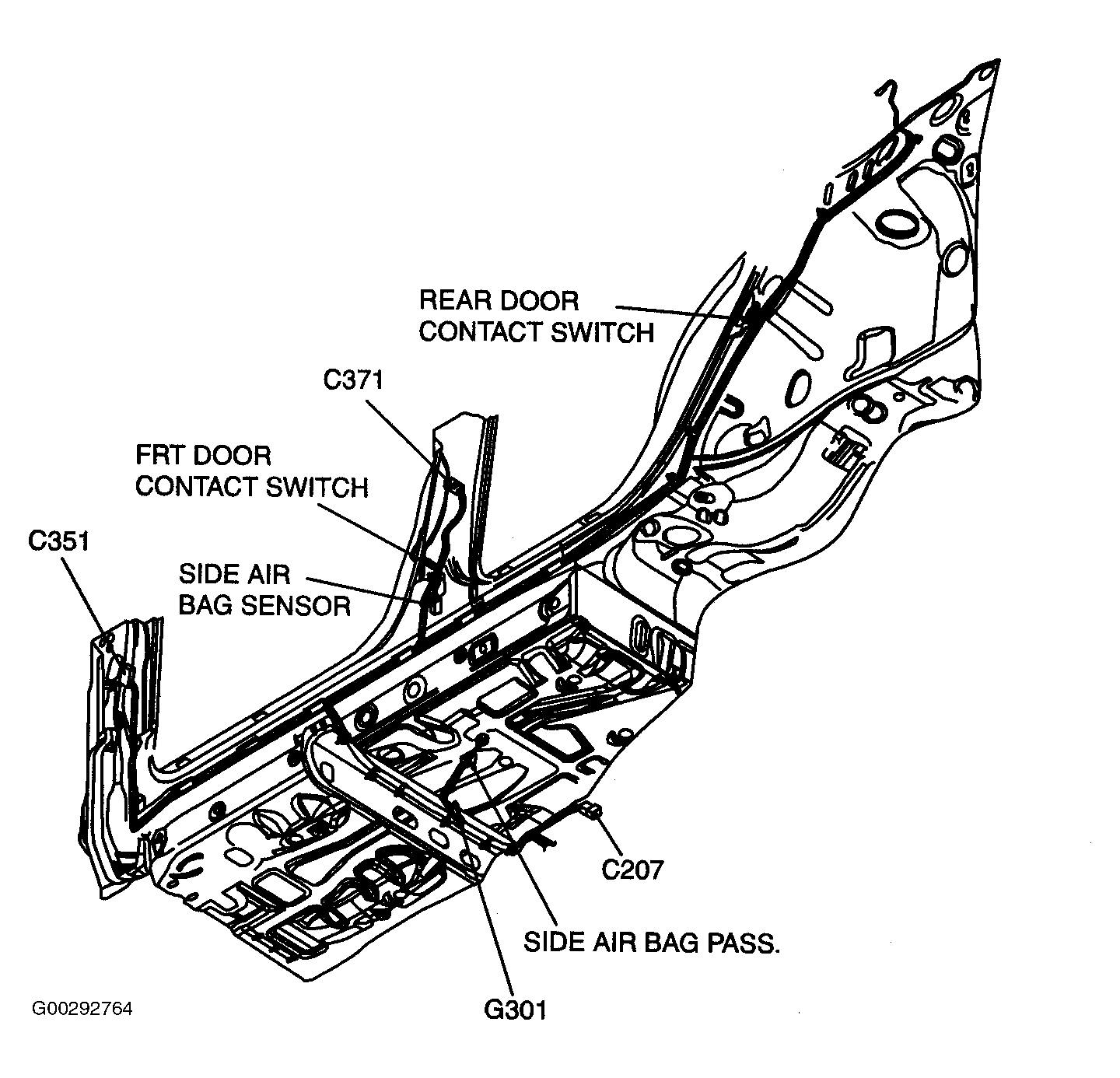

Fig 5: Left Side Of Vehicle Floor

Courtesy of SUZUKI OF AMERICA CORP.

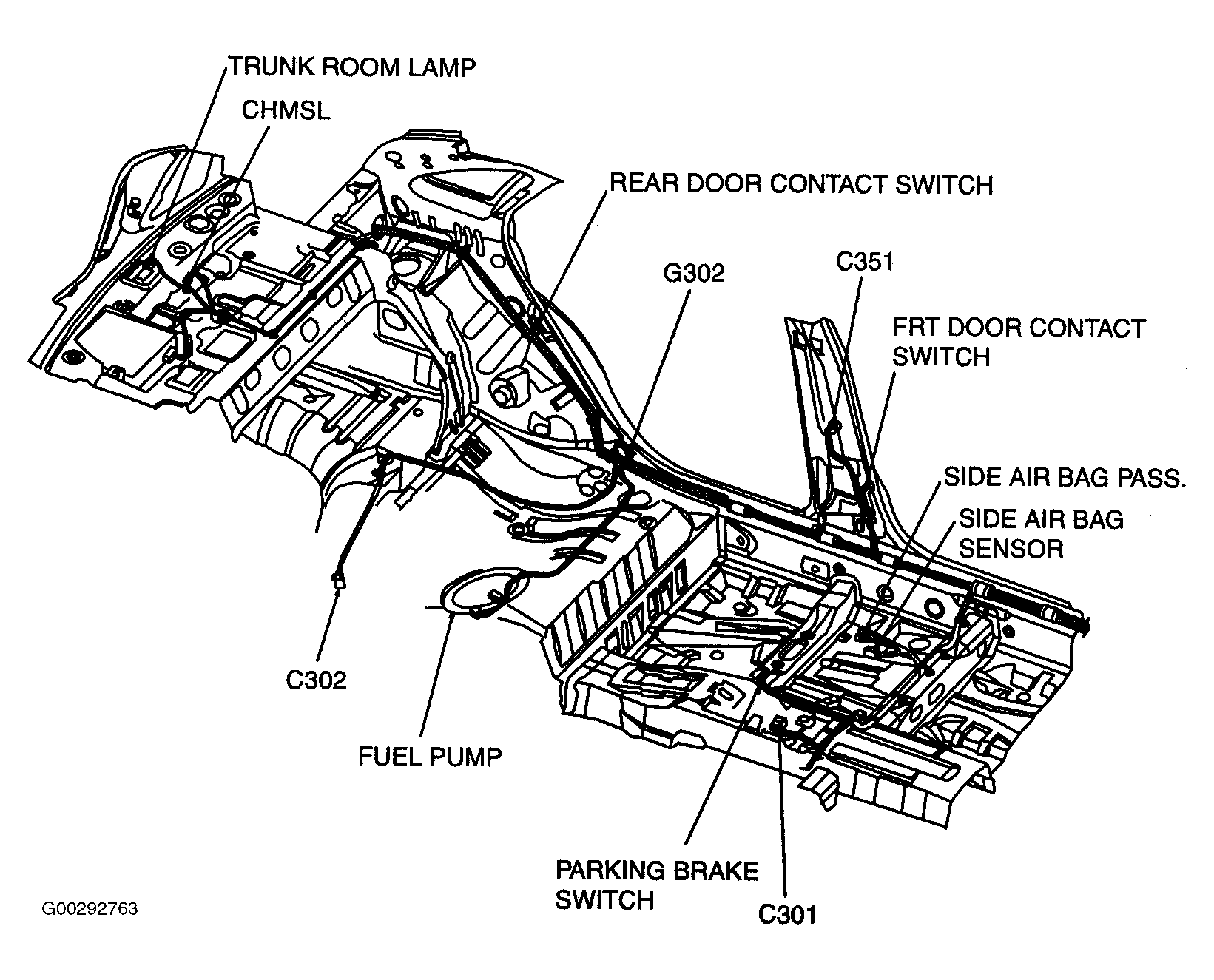

Fig 6: Right Side Of Vehicle Floor

Courtesy of SUZUKI OF AMERICA CORP.

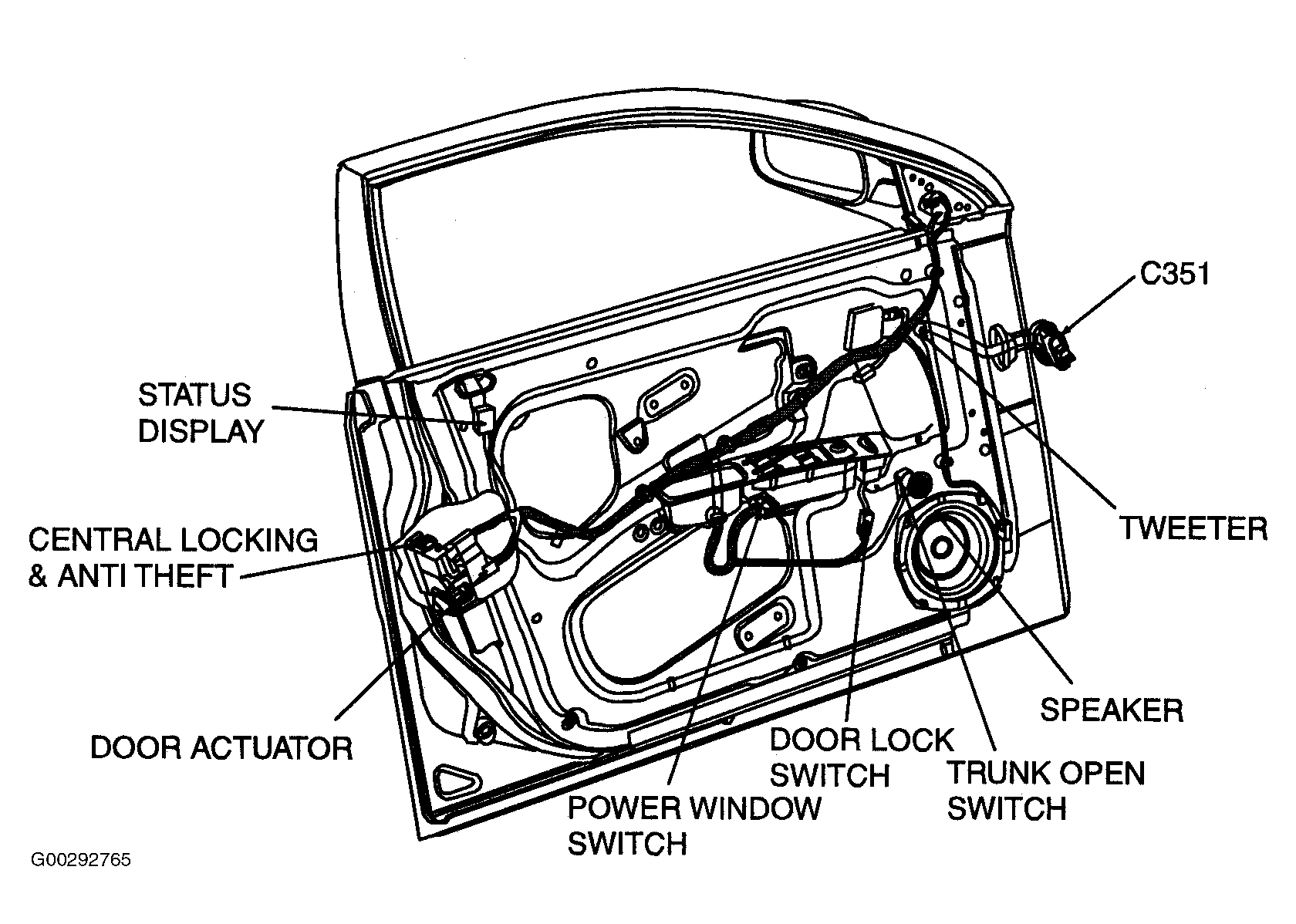

Fig 7: Left Front Door

Courtesy of SUZUKI OF AMERICA CORP.

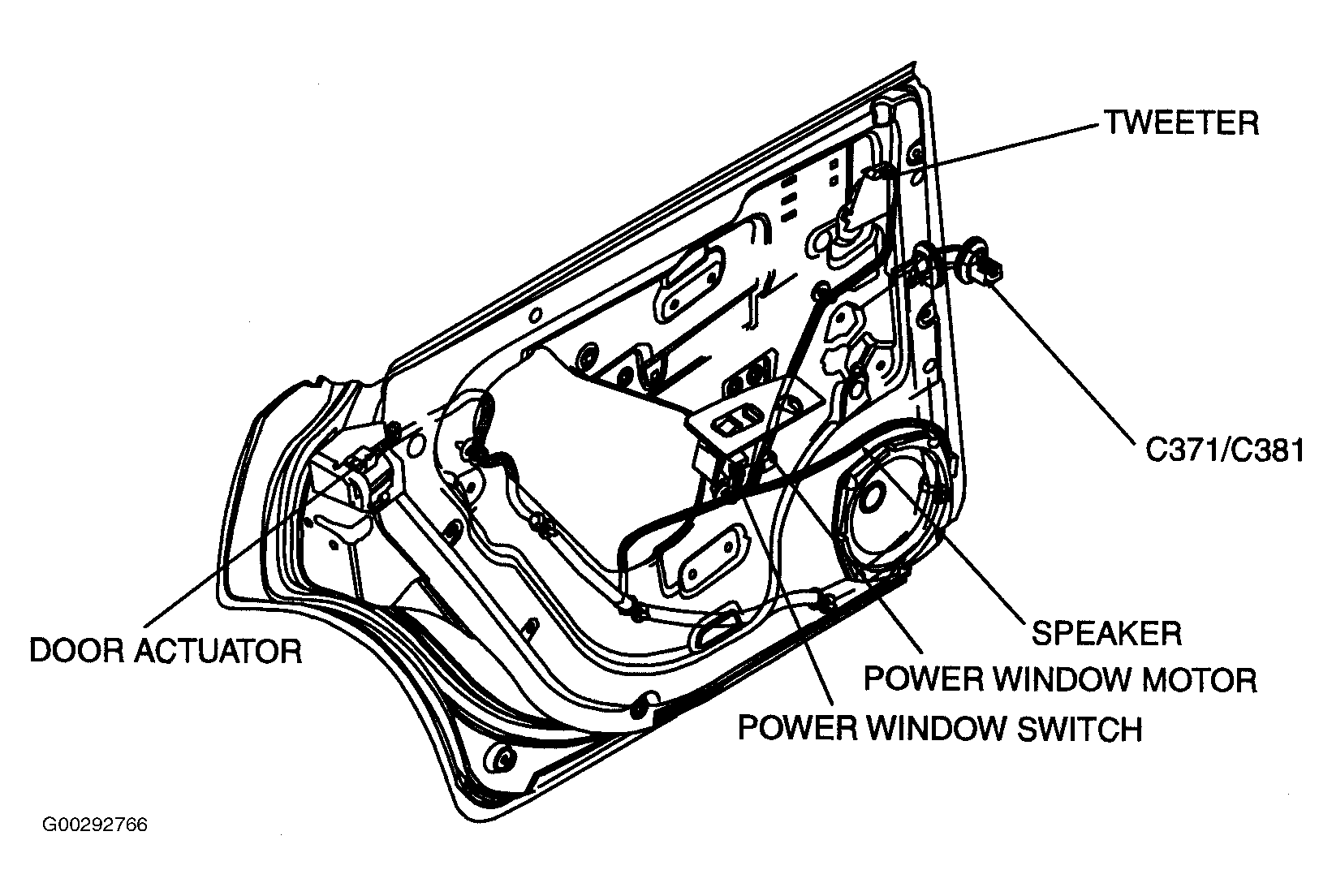

Fig 8: Left/Right Rear Door (Left Shown)

Courtesy of SUZUKI OF AMERICA CORP.

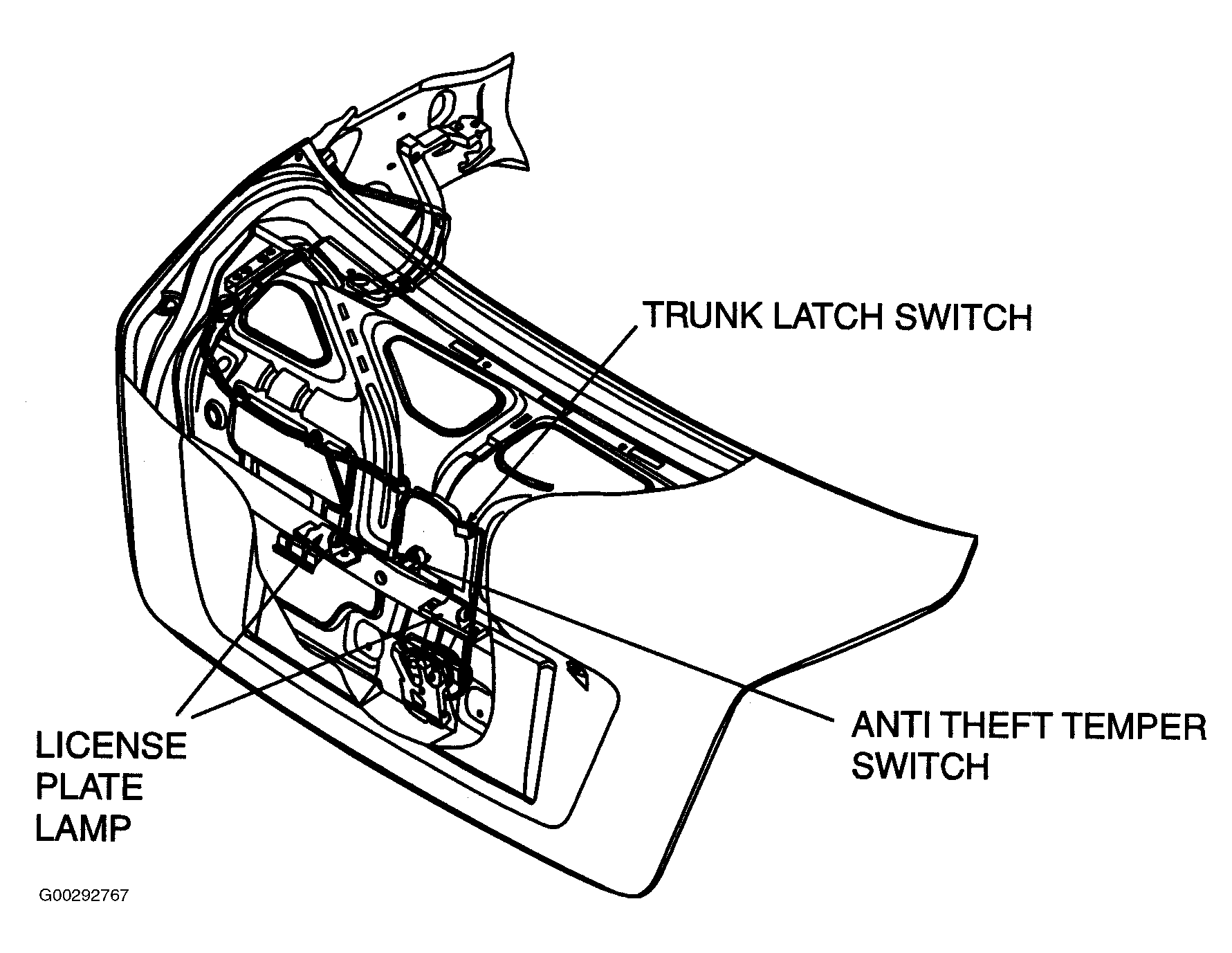

Fig 9: Trunk Lid

Courtesy of SUZUKI OF AMERICA CORP.

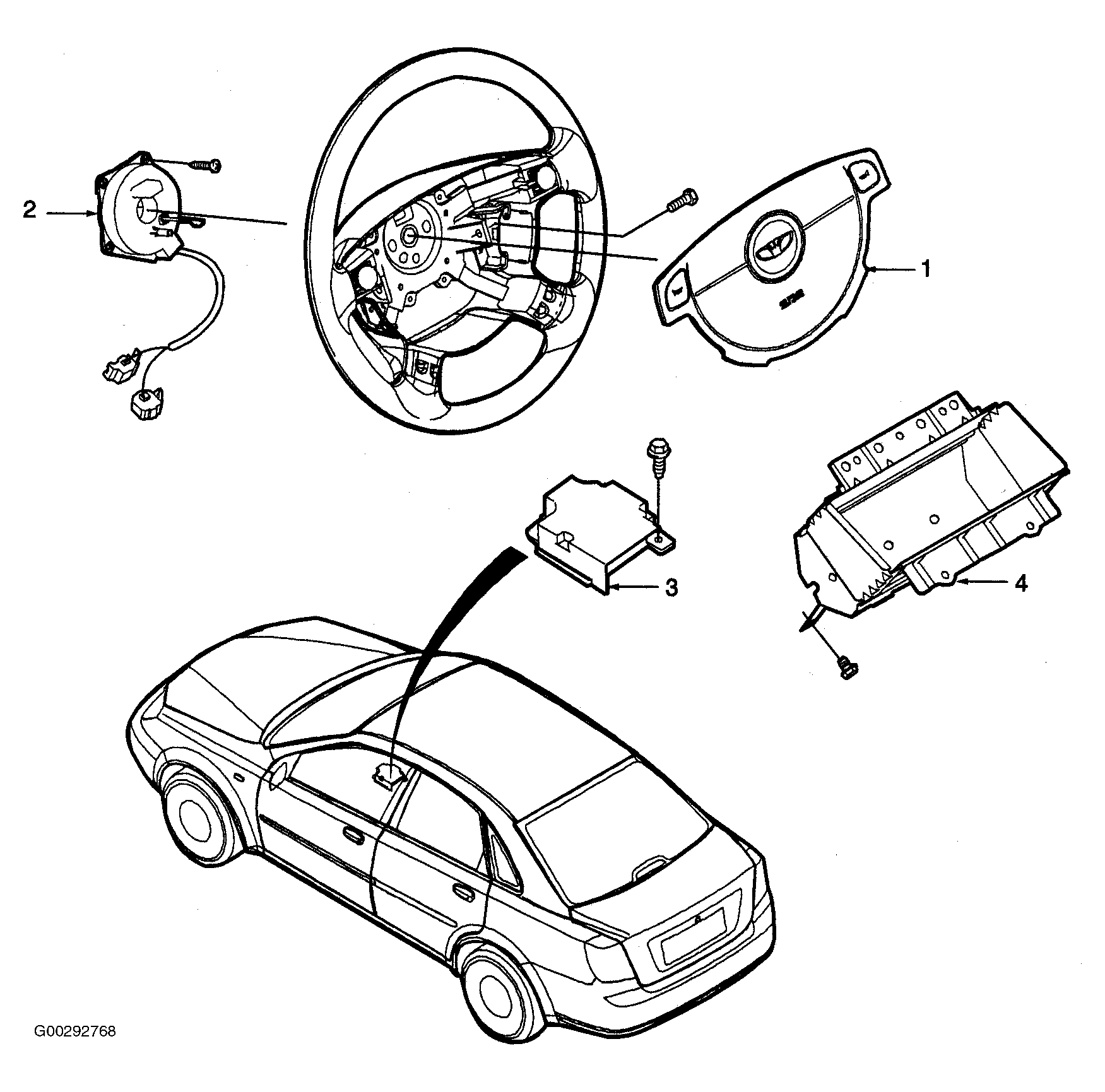

Fig 10: SIR Component Locations

Courtesy of SUZUKI OF AMERICA CORP.

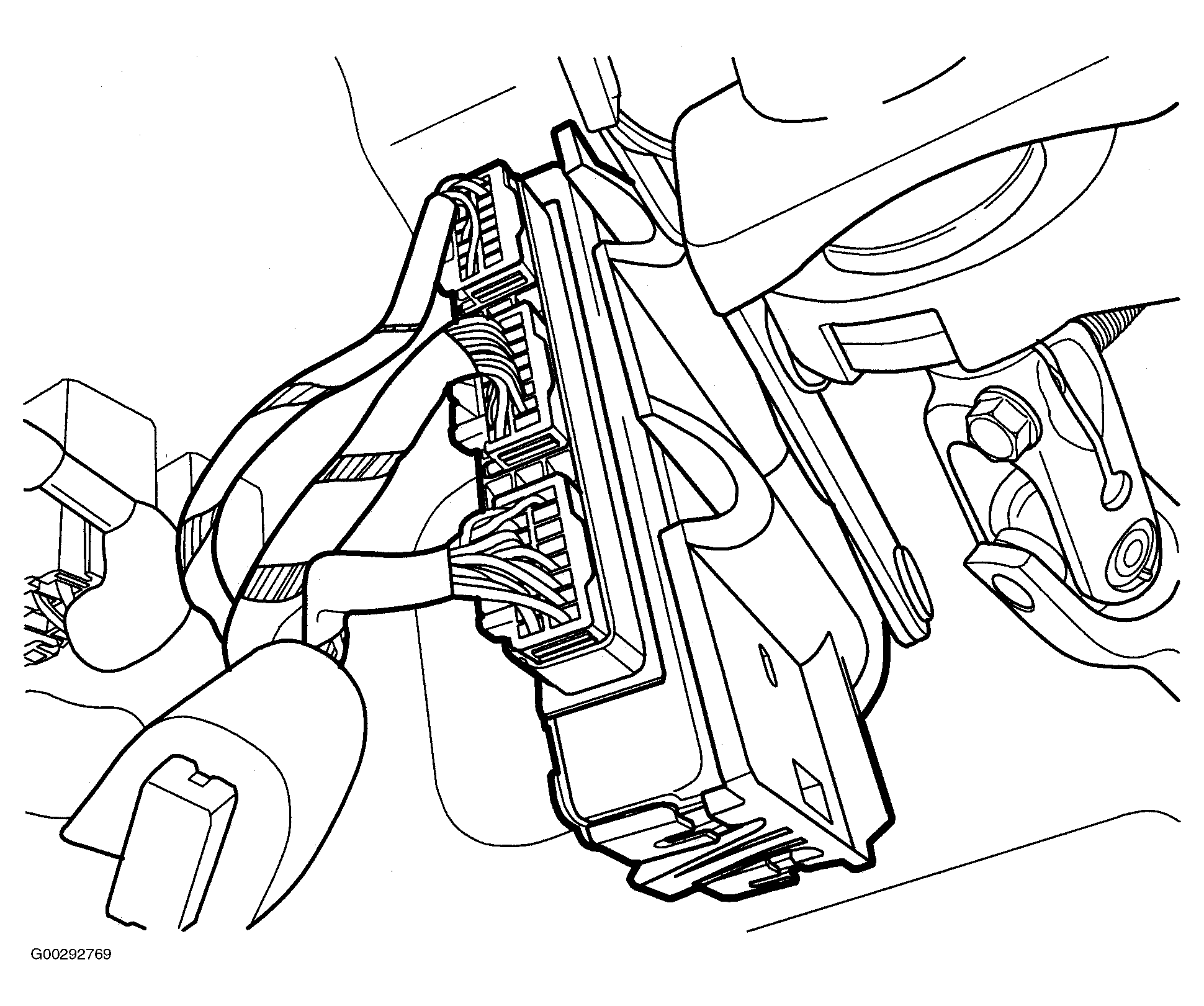

Fig 11: Under Left Side Of Dash

Courtesy of SUZUKI OF AMERICA CORP.

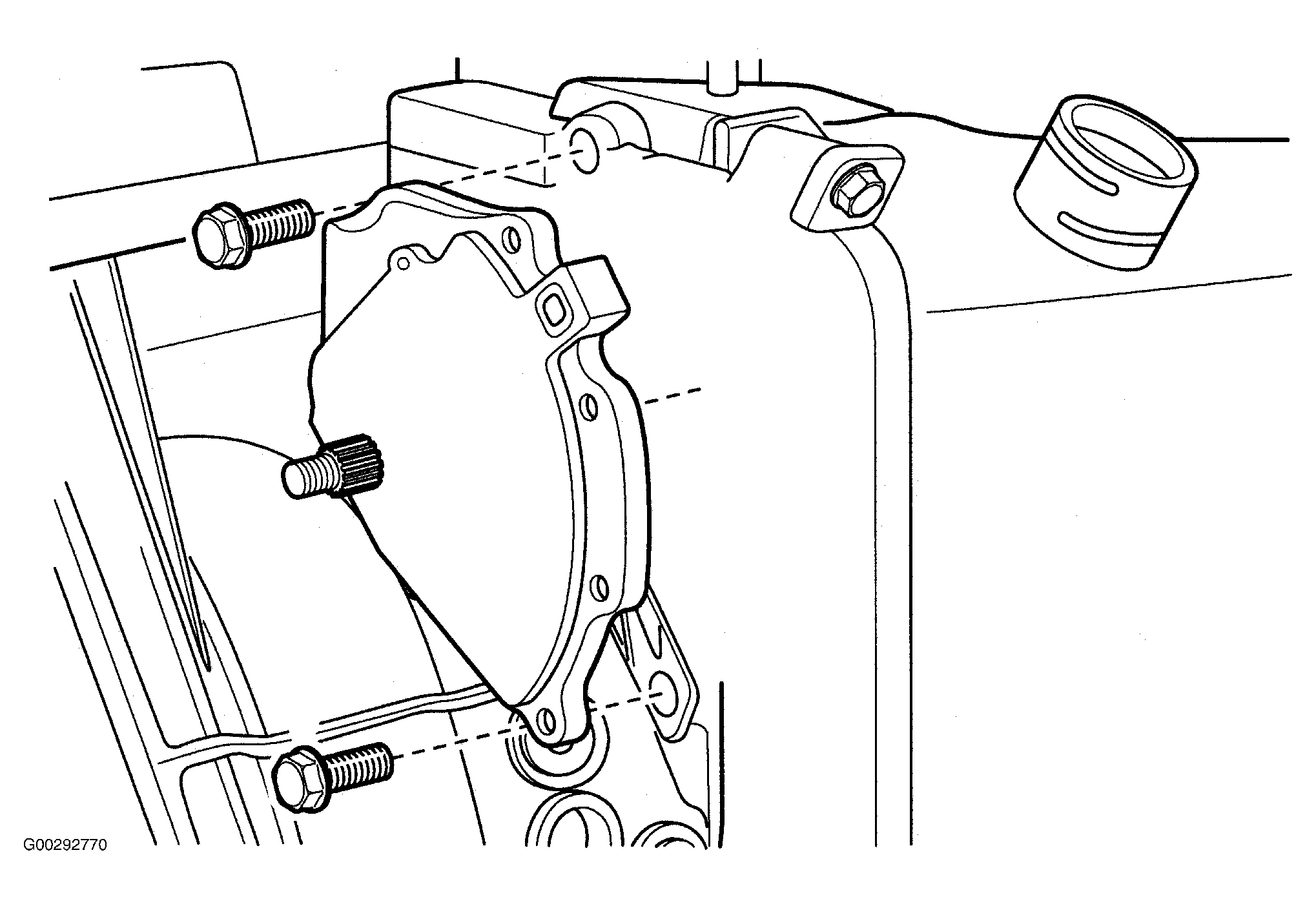

Fig 12: Left Side Of Transaxle

Courtesy of SUZUKI OF AMERICA CORP.

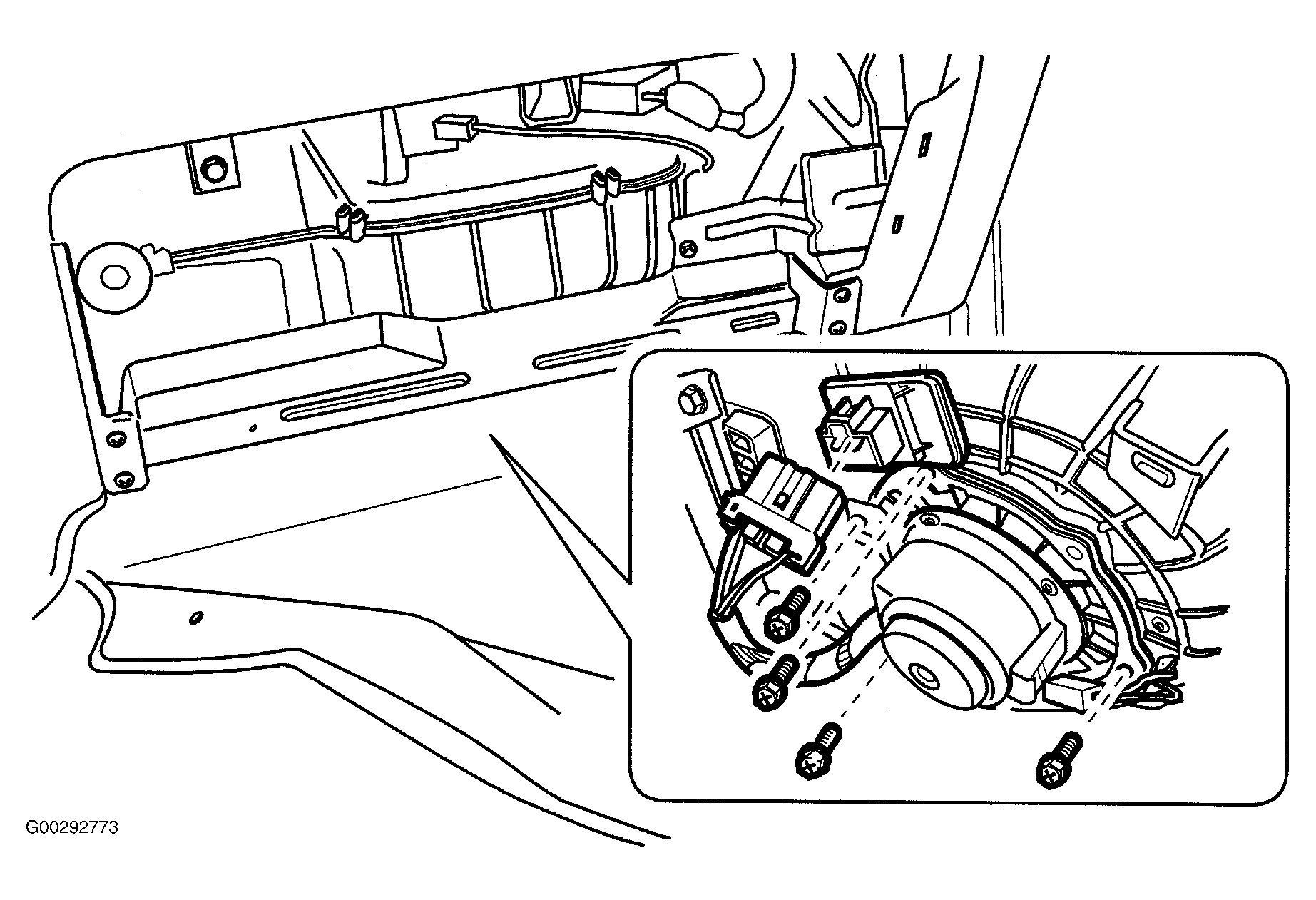

Fig 13: Under Right Side Of Dash

Courtesy of SUZUKI OF AMERICA CORP.

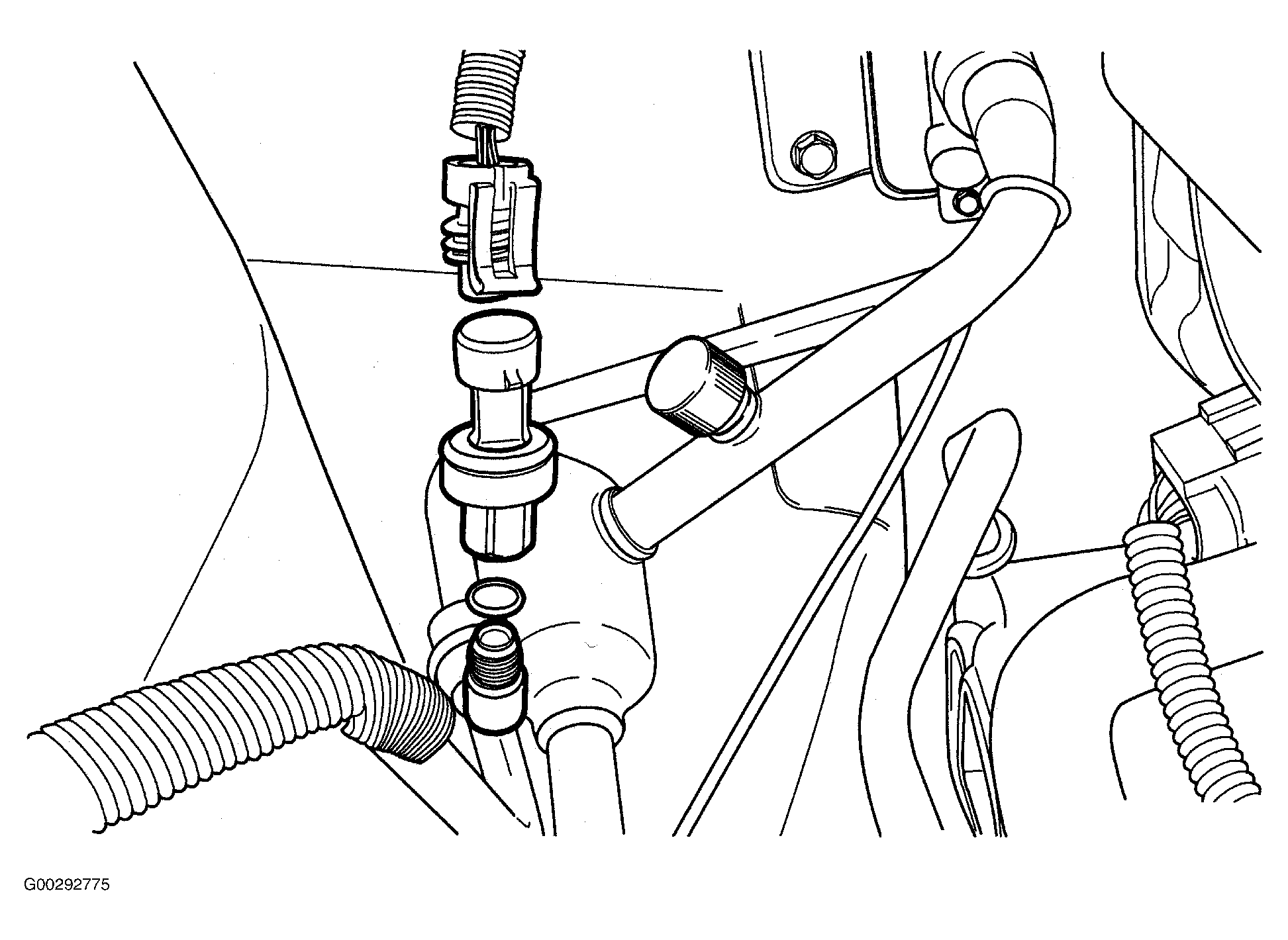

Fig 14: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

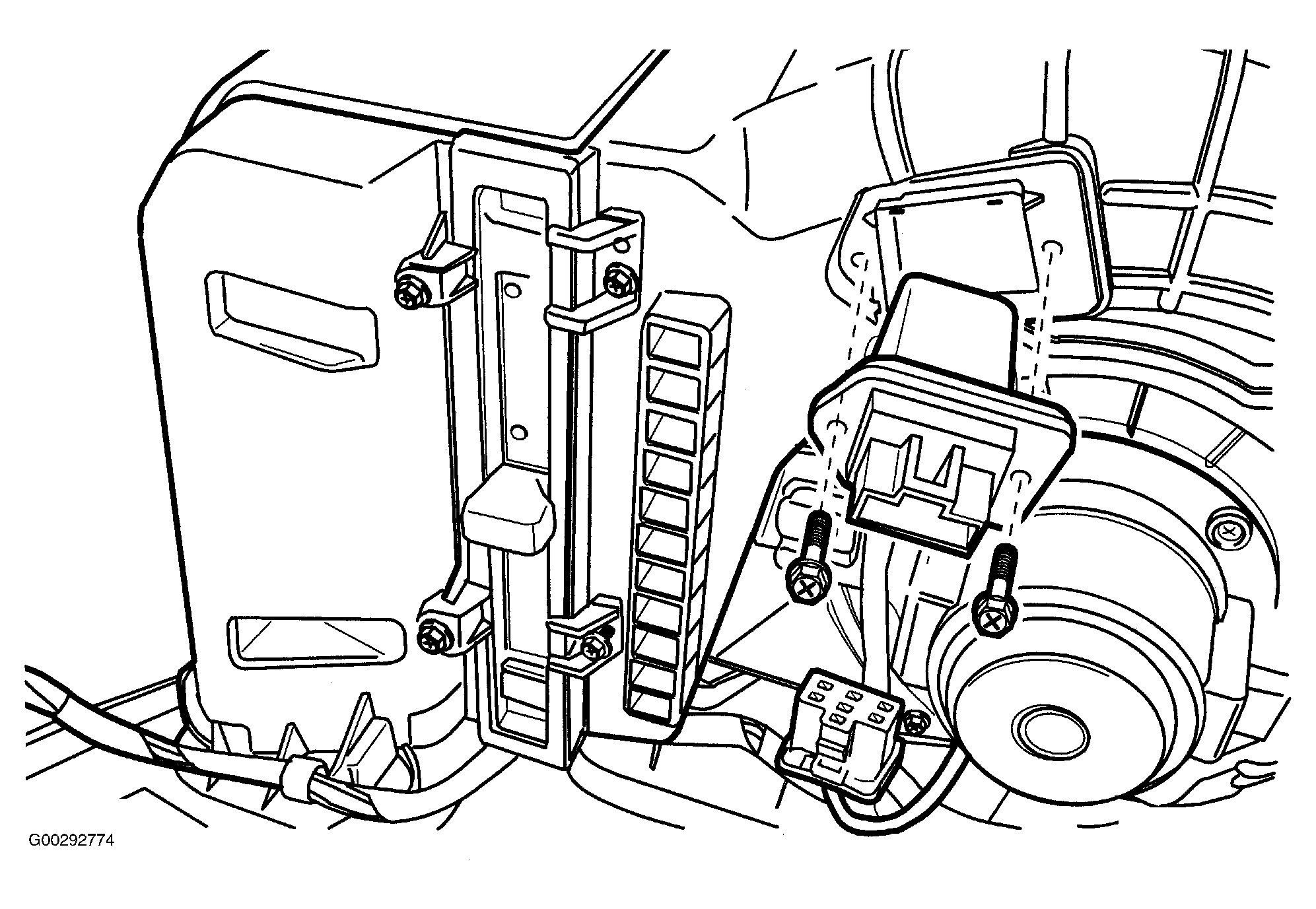

Fig 15: Behind Right Side Of Dash

Courtesy of SUZUKI OF AMERICA CORP.

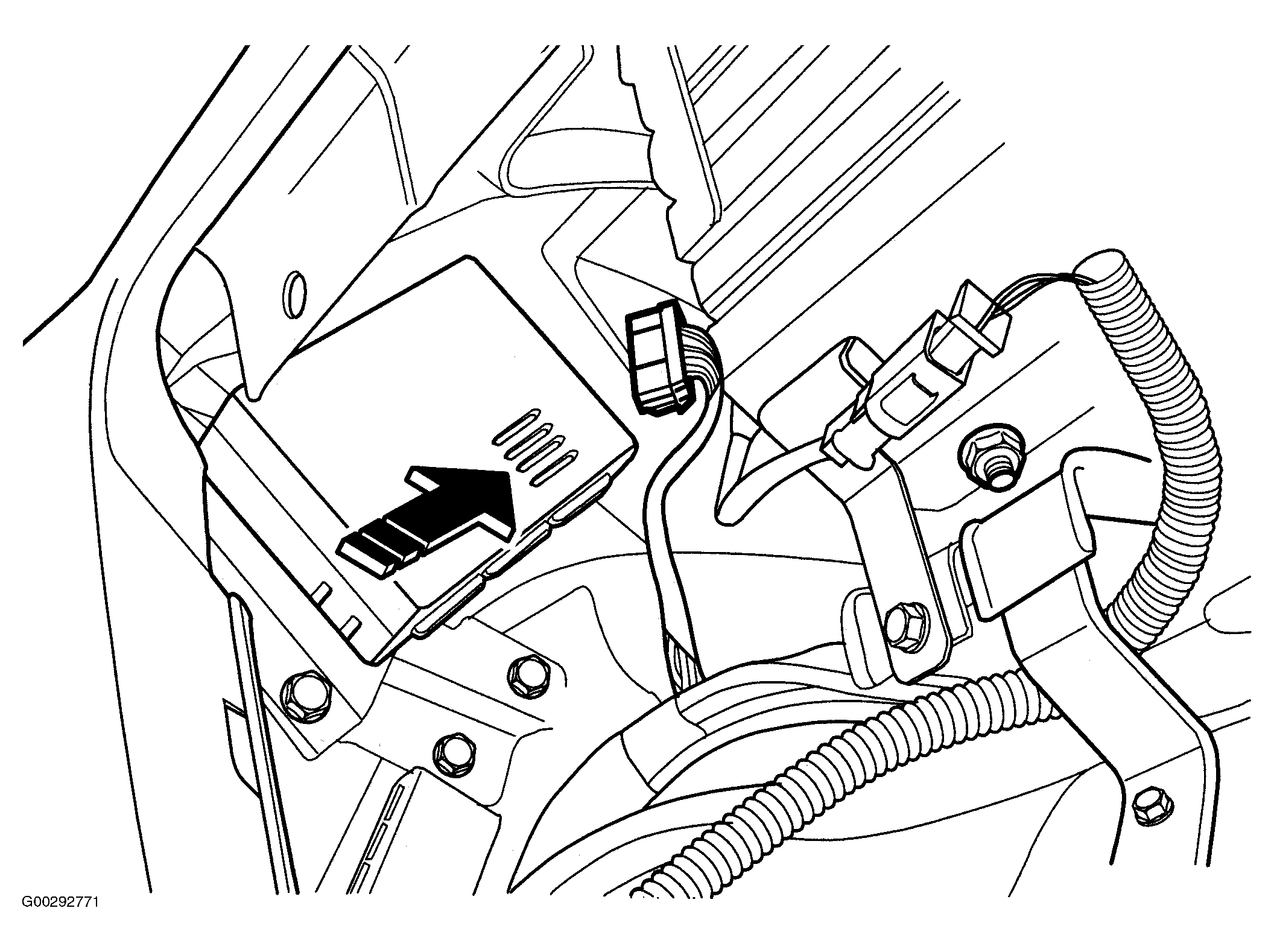

Fig 16: Behind Right Side Of Dash

Courtesy of SUZUKI OF AMERICA CORP.

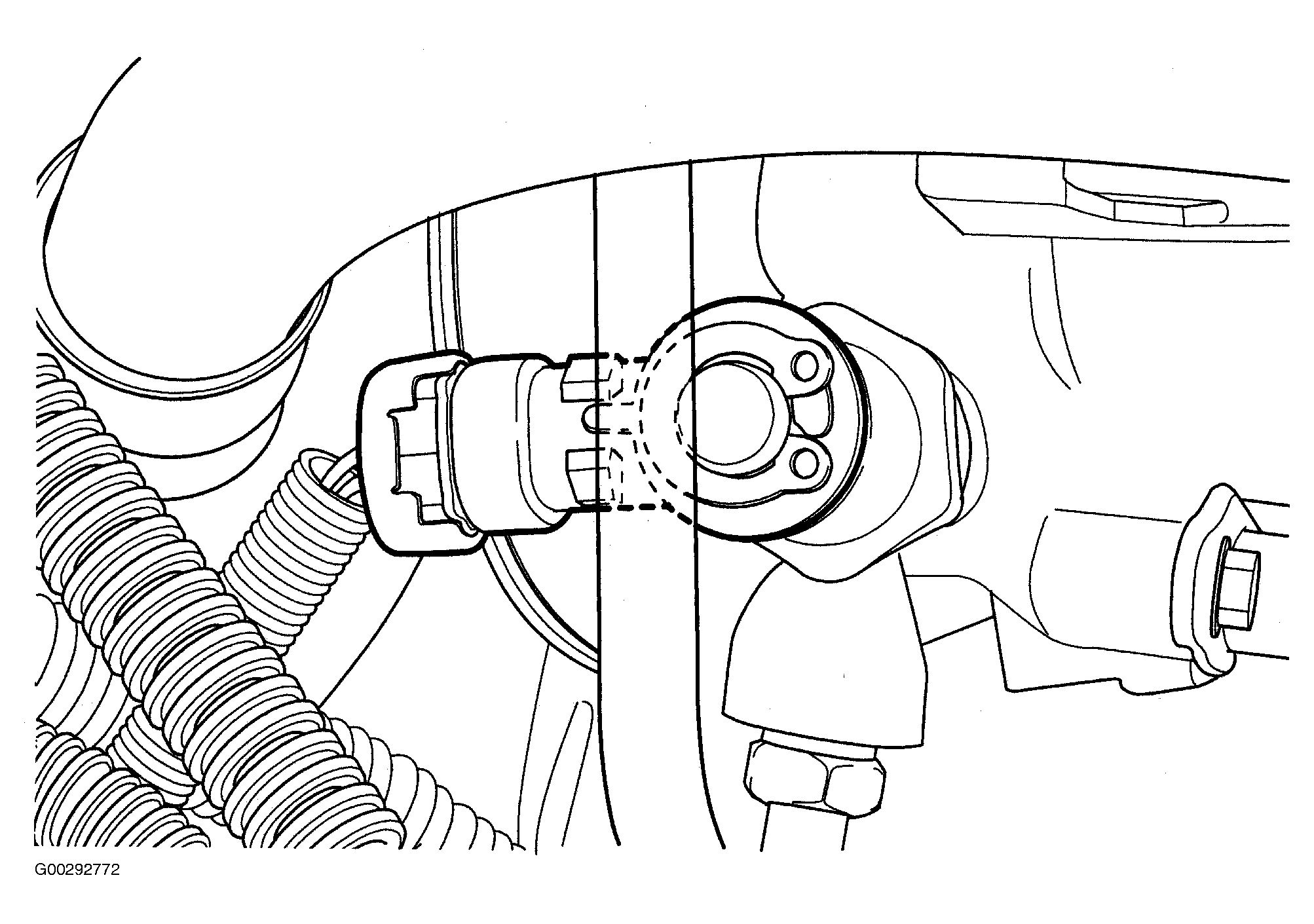

Fig 17: Right Side Of Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.
