Test Description

Lack of communication may be due to a partial malfunction of the serial data circuit or due to a total malfunction of the serial data circuit. The specified procedure will determine the particular condition.

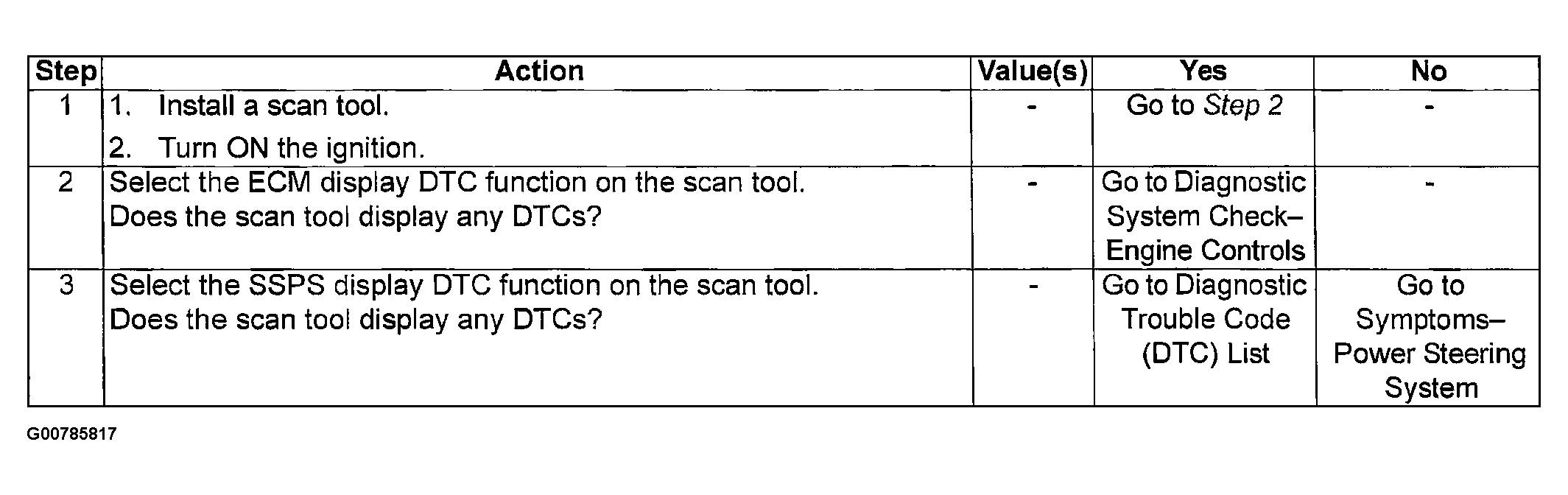

Fig 1: Diagnostic System Check
G00785817Courtesy of SUZUKI OF AMERICA CORP.
