Speed Sensitive Power Steering Control Module Removal and Installation: Installation

  1. Connect the electrical connector to the SSPS control module.
  2. Slide the SSPS control module onto the SSPS control module bracket.
  3. Install the ashtray.
  4. Connect the negative battery cable.

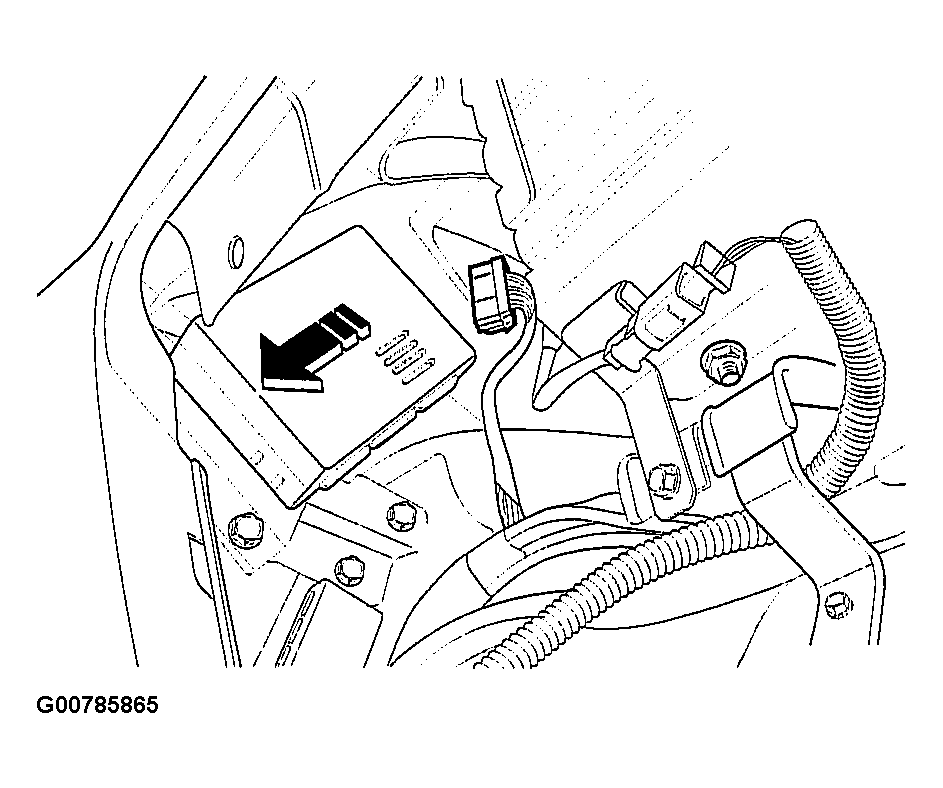

    Fig 1: Installing SSPS Module
    G00785865Courtesy of SUZUKI OF AMERICA CORP.
