Diagnostic Aids

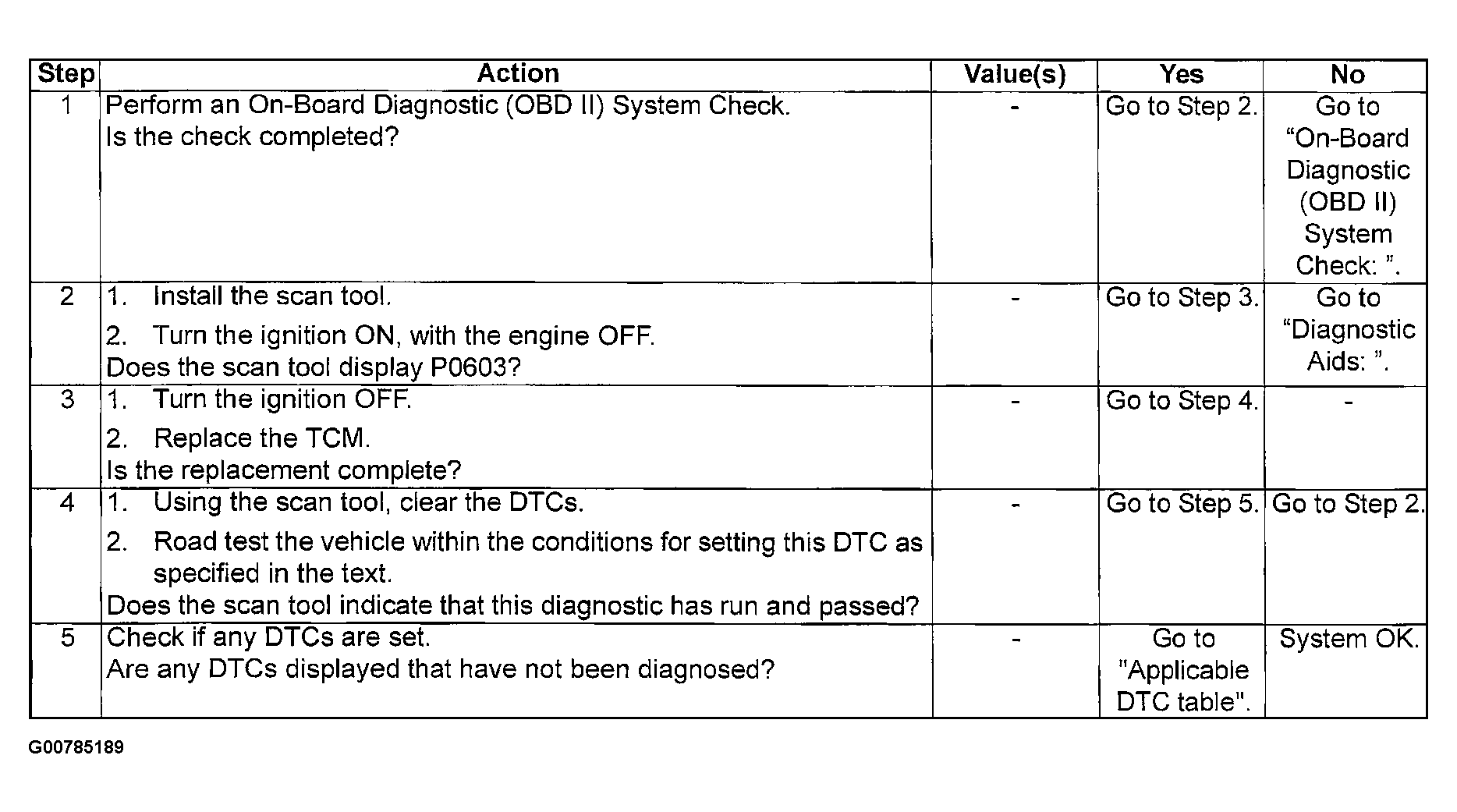

Fig 1: DTC P0603 Internal Control Module Keep Alive Memory (KAM) Error Diagnostic Chart
G00785189Courtesy of SUZUKI OF AMERICA CORP.
