DTC P1841: EDS 3 Output Open: Notes

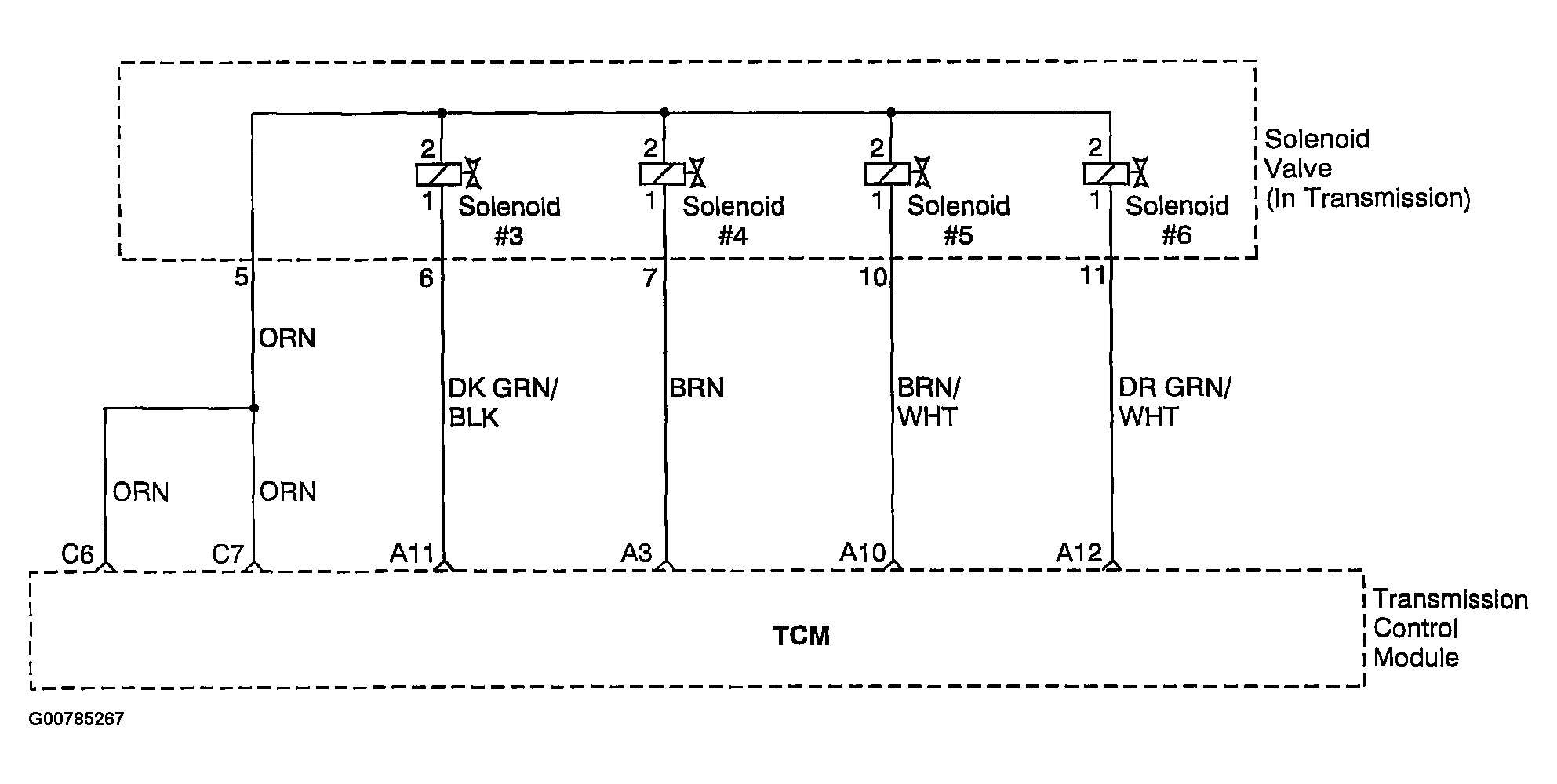

Fig 1: DTC P1841 EDS 3 Output Open Diagnostic Wiring Diagram
G00785267Courtesy of SUZUKI OF AMERICA CORP.
