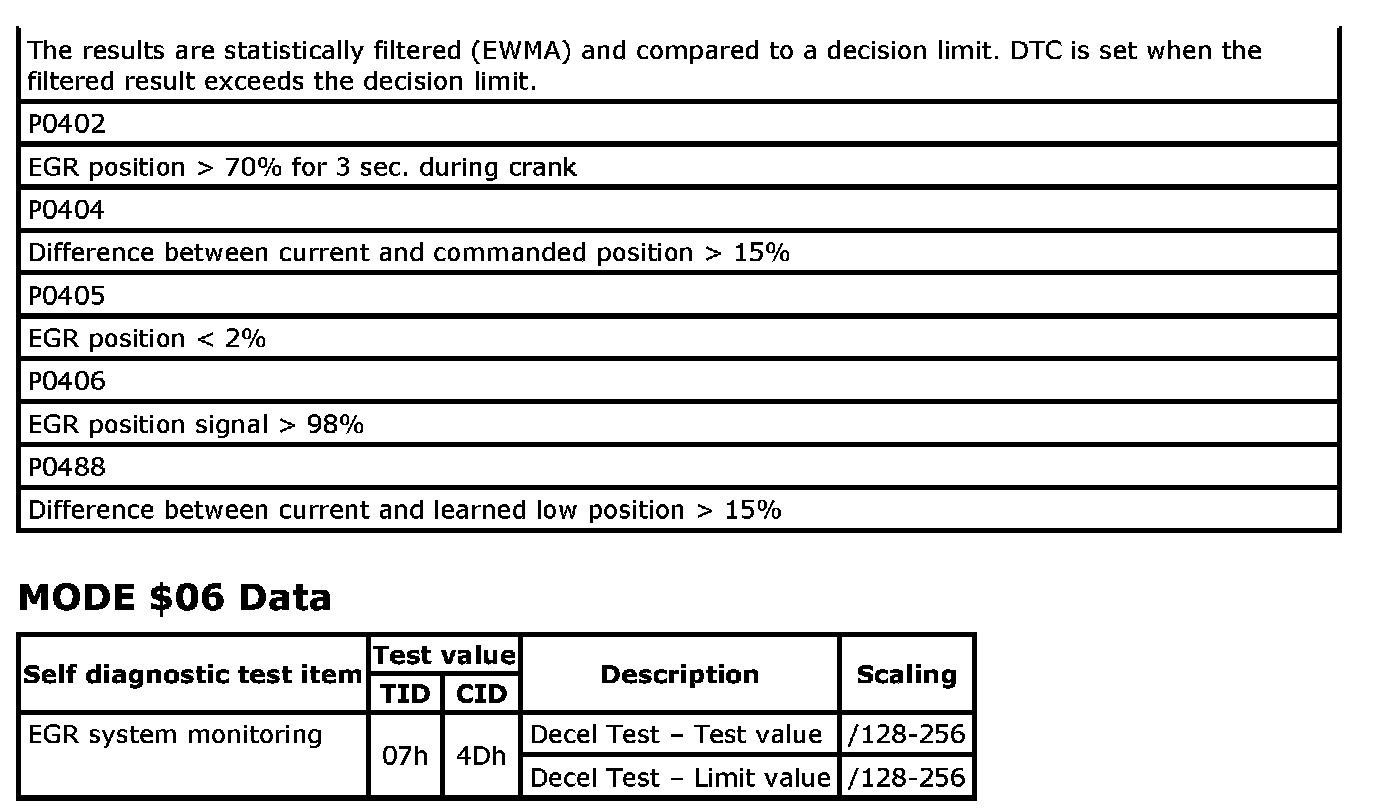

EGR System Monitor

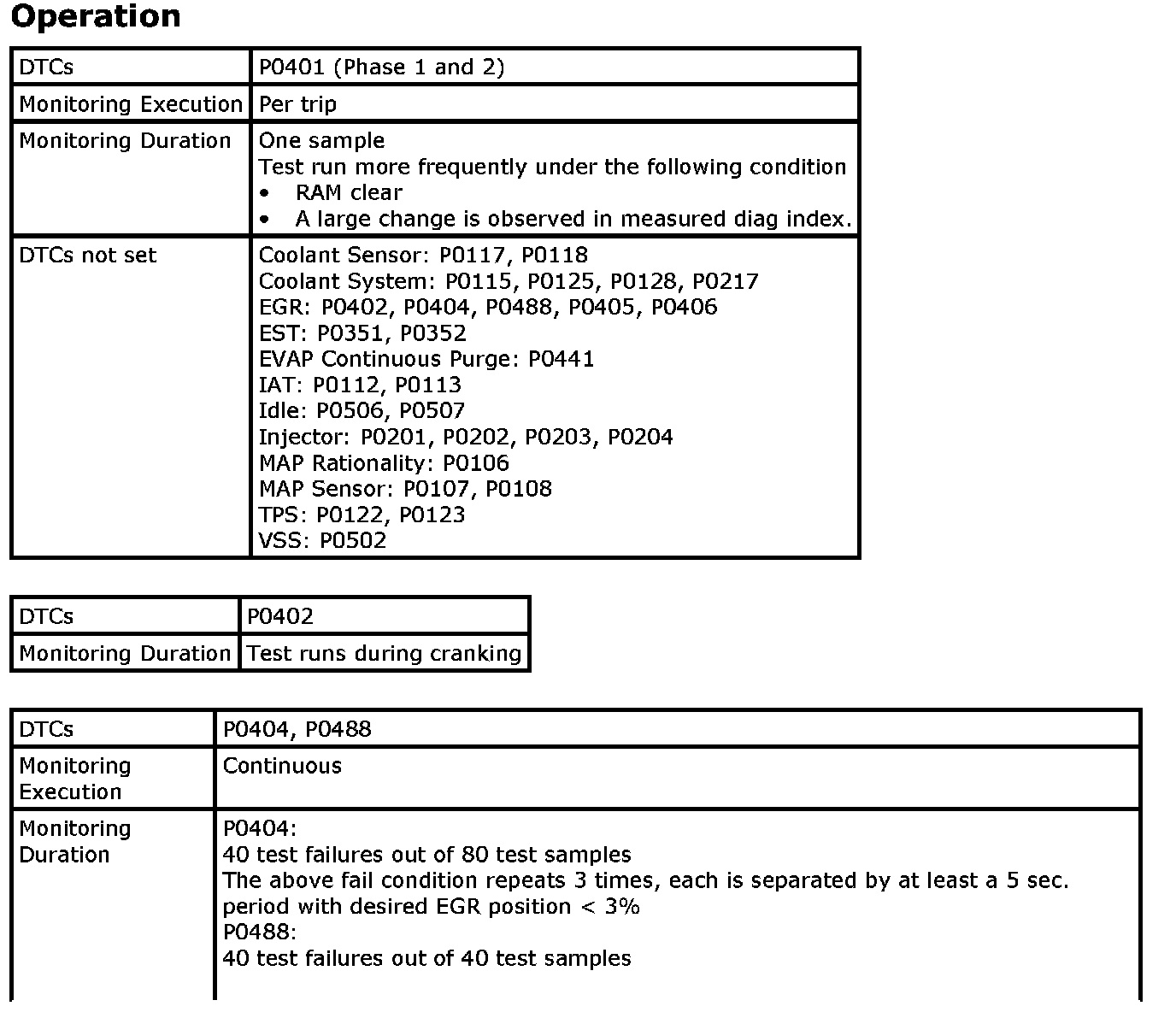

Exhaust Gas Recirculation Valve Functional Diagnosis Monitor Operation - Part 1:

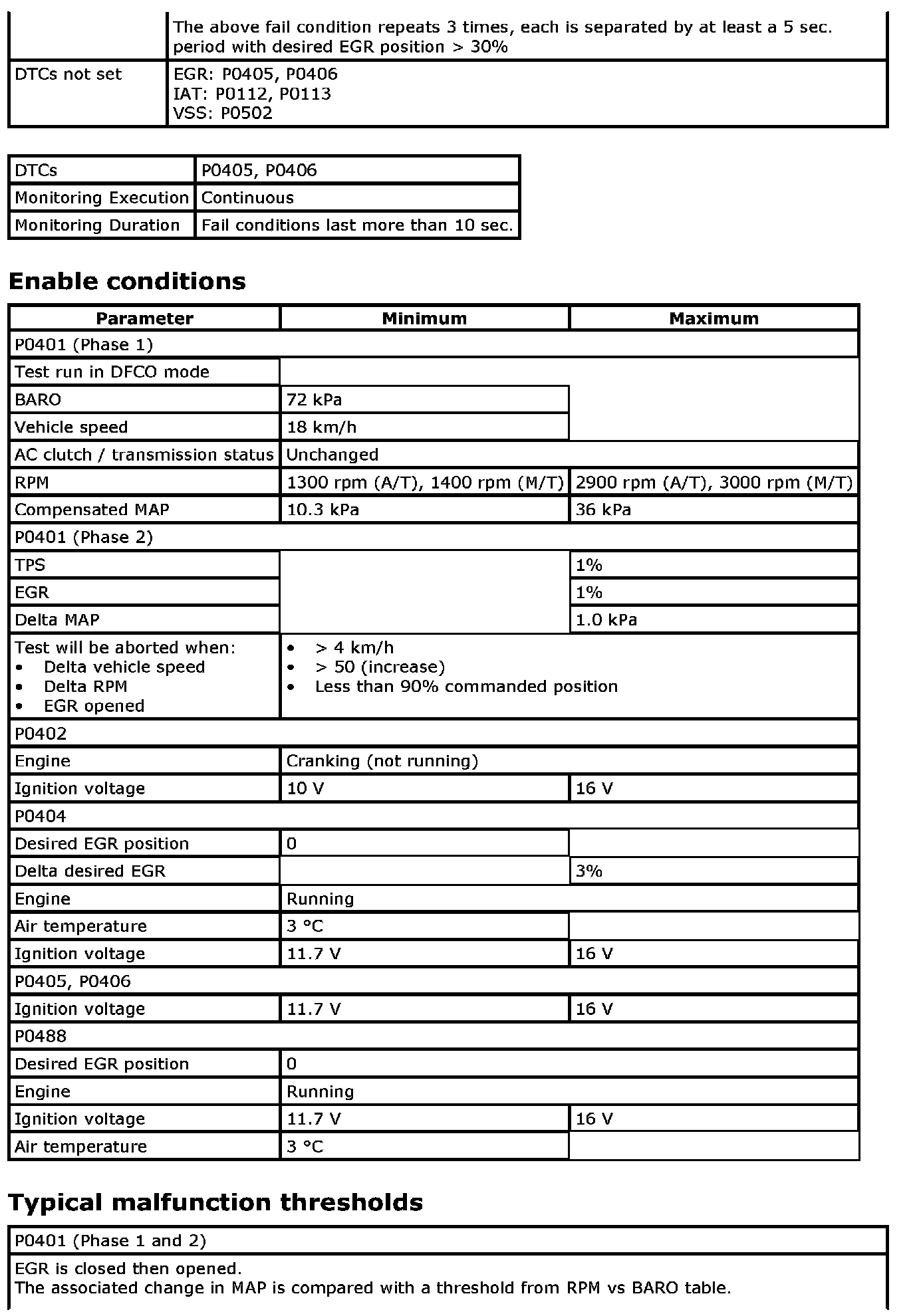

Exhaust Gas Recirculation Valve Functional Diagnosis Monitor Operation - Part 2:





Exhaust Gas Recirculation Valve Functional Diagnosis Monitor Operation - Part 3:
