Wiper/Washer System Component Views
| Callout | Component Name |
|---|---|
| 1 | Ignition Lock Module (North America) |
| 1 | Rear Fog Relay (LHD - w/Rear Fog) |
| 2 | Defog Relay (RHD) |
| 2 | Turn Signal/Hazard Flasher (LHD) |
| 3 | Wiper Relay |
| 4 | Park/Neutral Position (PNP) Relay (RHD) |
| 4 | Daytime Relay Lamp (DRL) Relay (Scandanavian) |
| 5 | Blink Relay |
| 6 | Blower Relay |
| 7 | Turn Signal/Hazard Flasher (RHD) |
| 7 | Park/Neutral Position (PNP) Relay (LHD) |
| 8 | Defog Relay (LHD) |
| 8 | Rear Fog Relay (RHD) |
| 9 | Fuse Block - I/P |

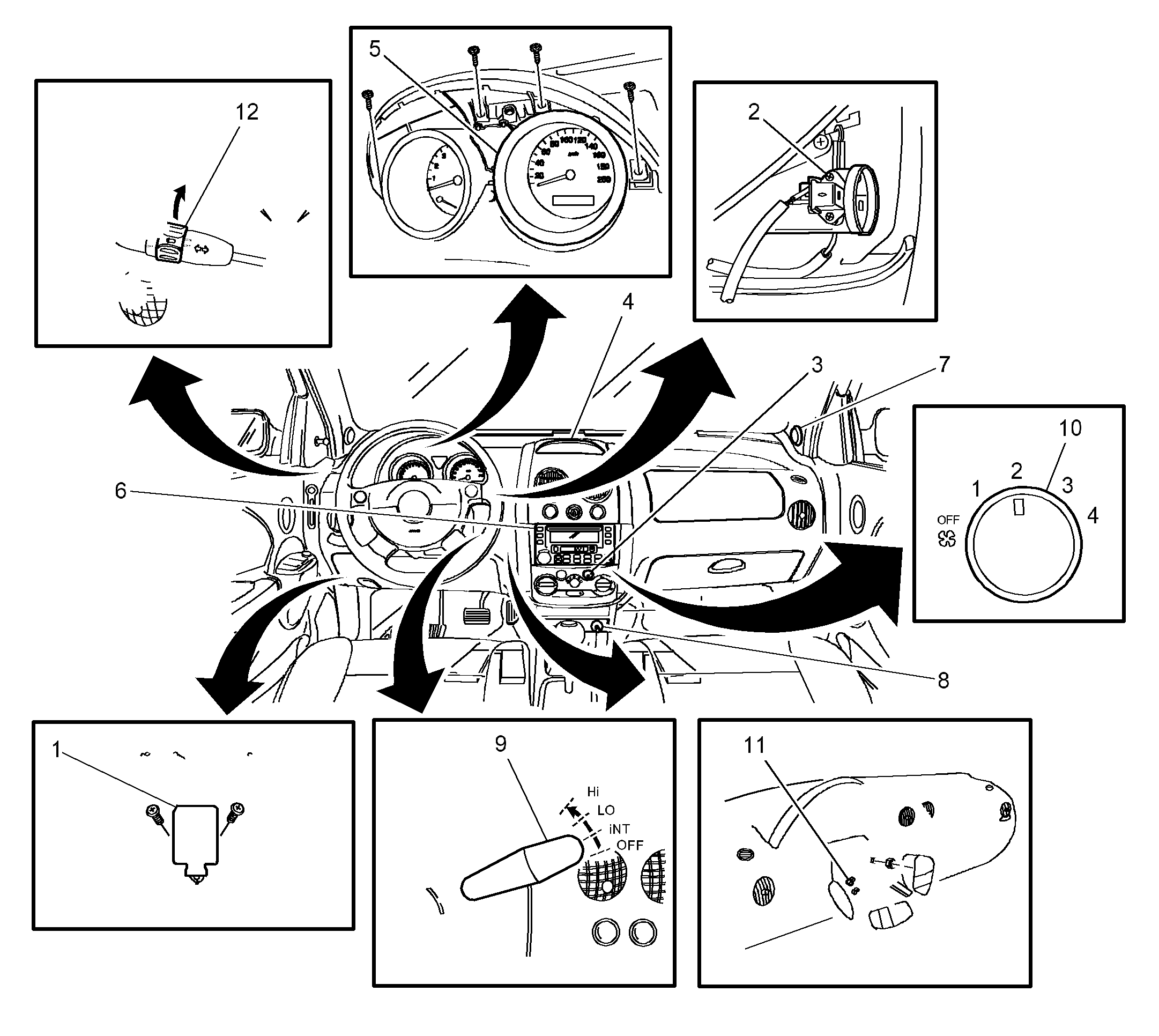

| Callout | Component Name |
|---|---|
| 1 | Multifunction Alarm Module |
| 2 | Ignition Key Alarm Switch |
| 3 | Defogger Switch |
| 4 | Clock/Tele Tail |
| 5 | Cluster |
| 6 | Radio |
| 7 | Tweeter Right/Left Similar |
| 8 | Cigar Lighter |
| 9 | Wiper Switch |
| 10 | Blower Switch |
| 11 | Horn Switch |
| 12 | Headlamp Switch |

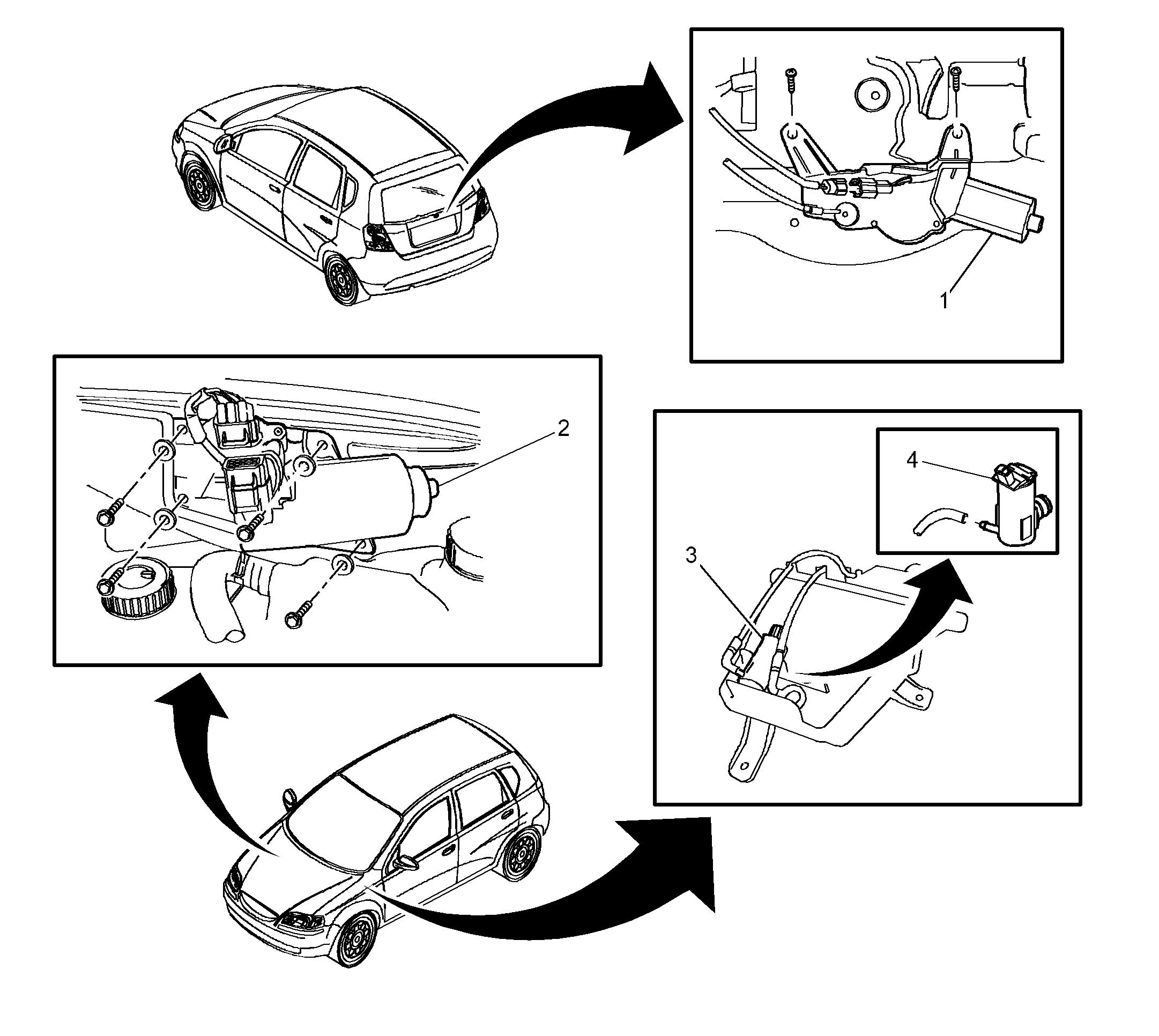

| Callout | Component Name |
|---|---|
| 1 | Wiper Motor - Rear |
| 2 | Windshield Wiper Motor |
| 3 | Windshield/Washer Fluid Pump - Front |
| 4 | Windshield/Washer Fluid Pump - Rear |
