ABS Component Views

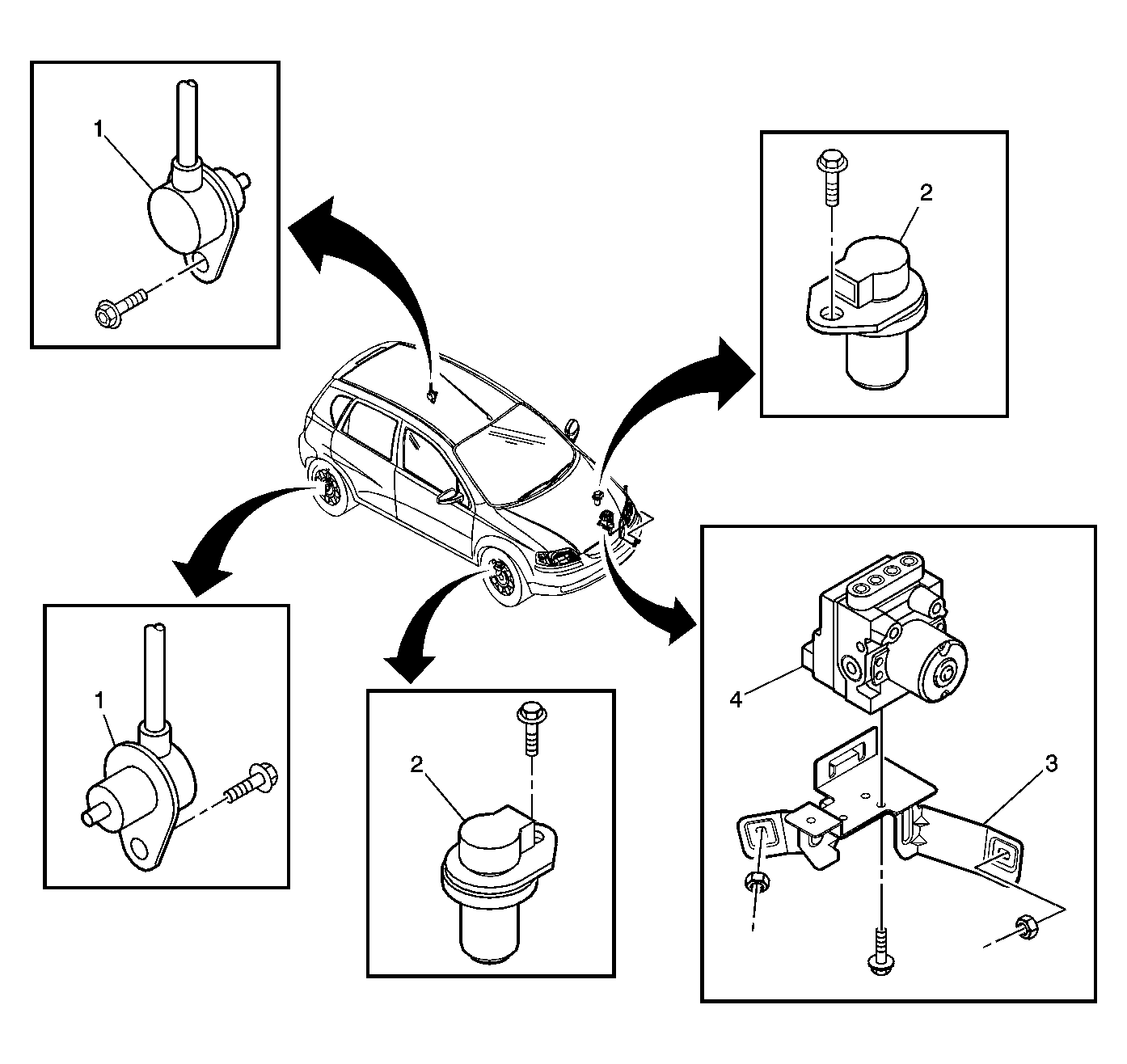

Fig 1: ABS Component Views
GM1248528Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Wheel Speed Sensor - Right and Left
2 Front Wheel Speed Sensor - Right and Left
3 Mounting Bracket
4 Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve
