DTC C0095: Brake Switch Circuit Open (Stop Lamp Circuit Open): Notes

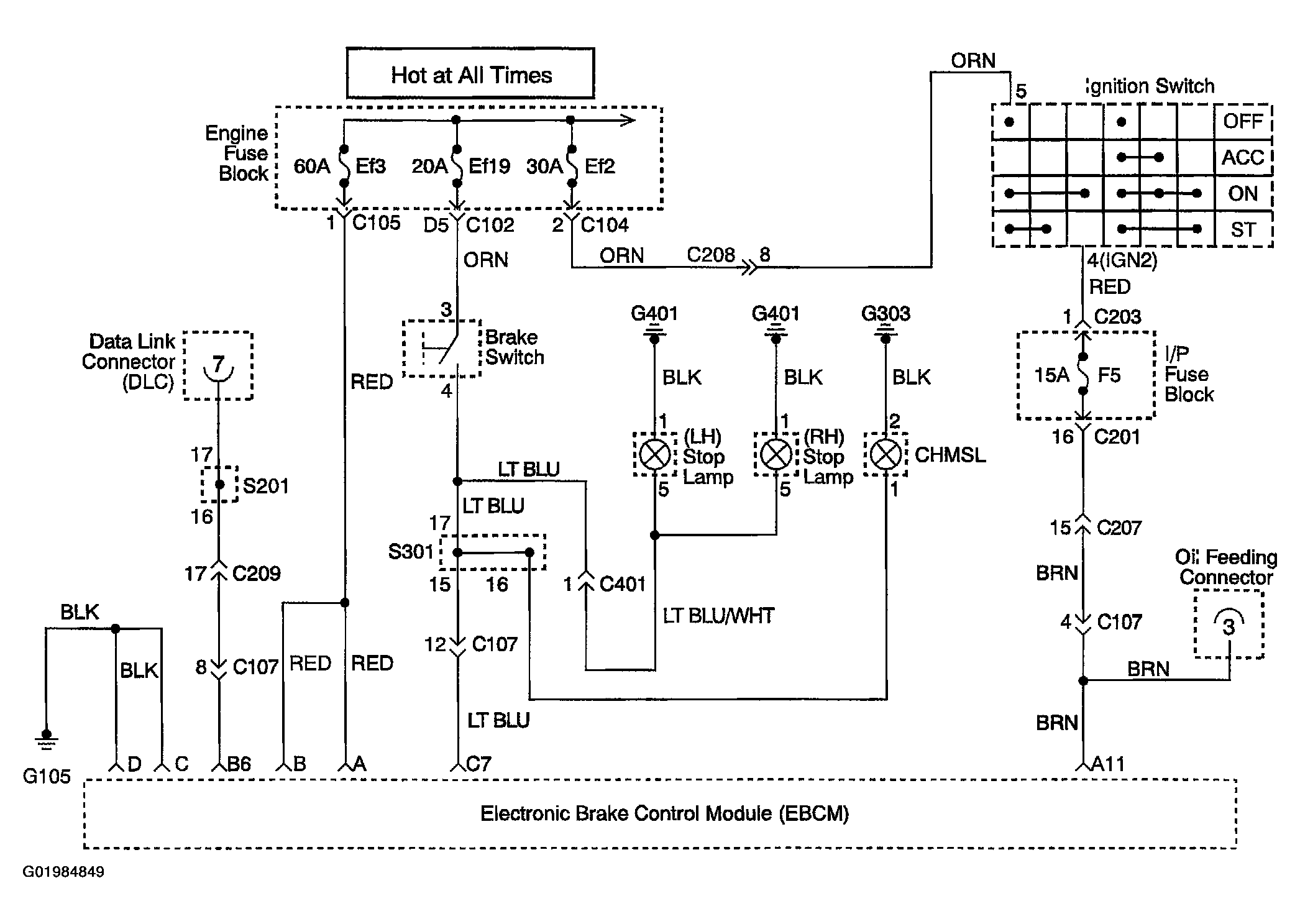

Fig 1: DTC C0095: Brake Switch Circuit Open (Stop Lamp Circuit Open) - Wiring Diagram
G01984849Courtesy of SUZUKI OF AMERICA CORP.
