ECM Reprogramming For False Slow O2 Sensor DTCS, EVAP Related DTCS And Various Other Unintended DTCS (TS 07 01266R2)
Publication date: 2006-01-26Reference number: TS 07 01266R2
Supersedes refnos: TS 07 01266R
ECM REPROGRAMMING FOR FALSE SLOW O2 SENSOR DTCS, EVAP RELATED DTCS AND VARIOUS OTHER UNINTENDED DTCS
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 07 01266R2, Date of Issue:
January 26, 2006
| SUZUKI: | 2004~2005 Verona |
| SECTION: | Engine |
REVISION
The software that was released with the previously revised bulletin (TS 07 11025R) on 11/02/2005 incorrectly added 05 MY DTCs to the 04 MY vehicles. 2004 MY vehicles with this software will display 2005 MY DTCs that are not described in the 2004 MY service information.
In addition, this revised software will eliminate several unintended evaporative emission control system DTCs that may appear in vehicles with the original ECM software. See "CONDITION" for specific details and DTCs.
Please also note the defect code has been changed in the warranty claim information.
CONDITION
The following three conditions may be present.
- ECM software may produce unintended slow response O2 sensor DTCs (P0133 and/or P0153) or (P0139 and/or P0159).
- ECM software may produce unintended Evaporative Emission Control System Leak Detected DTCs (P0442, P0455 and/or P0456).
- 04 MY vehicle may show DTCs which are related to the 05 MY vehicles. See attached DTC list.
CAUSE
ECM software logic.
CORRECTION
Using the appropriate service manual, verify the DTC using the troubleshooting chart to be sure the code has not been set due to an actual fault.
Reprogram the Engine Control Module (ECM) on all vehicles in dealer inventory and at no charge on all customer vehicles that are brought into Suzuki dealerships for any reason. In addition, reprogram the 04 MY vehicles that were previously programmed with the original software downloaded with the wrong DTCs from Suzuki Pit Stop.
DTCS FOR MY 05 WHICH MAY BE STORED IN A MY 04
| MY 04 | Description | MY 05 |
|---|---|---|
| P0133 (B1S1) | HO2S Slow Response / No Activity Detected | P0133 |
| Post Catalyst Fuel Trim System Too Lean (Bank 1) | P2096 | |
| P0153 (B2S2) | HO2S Slow Response / No Activity Detected | P0153 |
| Post Catalyst Fuel Trim System Too Lean (Bank 2) | P2098 | |
| P1449 | Evaporative Emission (EVAP)-Vent System Performance (Stuck Closed) | P2422 |
| P1443 | Evaporative Emission (EVAP)-System Incorrect Purge Flow | P0441 |
| P1511 | Throttle Actuator Position-Electrical Diagnosis | P2101 |
| P1512 | Throttle Actuator-Mechanical Failure | P2118 |
| P1513 | Throttle Actuator-Adaptation Failure | P2119 |
| P1670 | CAN Communication-Frame ABS Missing | U0121 |
| P1671 | CAN Communication-Frame TCU Missing | U0101 |
| P1672 | CAN Communication-Frame CAN Bus Off | U0073 |
| P1673 | CAN Communication-Frame Transmit Error | U0100 |
REQUIRED TOOLS AND SOFTWARE
REQUIRED TOOLS AND SOFTWARE
| Part Numbers | Description | Qty | Notes |
|---|---|---|---|
| 09910-06520 or 09910-06521 | SDS Tool Kit | 1 | Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable |
| Suzuki Pitstop | Pass-Thru Reprogramming Software SOFTWARE.EXE | 1 | Now easier to install, please download and read the new Operator's Manual for details. Version 1.6.0.1 or later Requires serial number to install |
| Suzuki Pitstop | Database DATABASE.EXE | 1 | Now easier to install, please download and read the new Operator's Manual for details. Version 2.005.1215 or later Requires serial number to install |
| Suzuki Pitstop | Suzuki Pass-Thru Reprogramming Tool Operator's Manual | 1 | Version 01106 or later. New version number, can be found on the last page. Must be read and understood completely before attempting to reprogram a vehicle |
| 99963-01501-224 | Reprogram Label | 1 | Labels can be ordered thru Suzuki Parts Department at no charge in packages of 200 each. |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| FB32P0 | Controller Assy, EFI | 33920-86Z14 | 34 | 48 | 0.3 Hrs |
Reprogramming Procedure
- Log onto Suzuki Pit Stop.
- Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
- Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "SOFTWARE.EXE" if it is not already installed .
- Download the Suzuki Pass-Thru Reprogramming Data Base "DATABASE.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. This step is only required to be done once to accommodate all vehicles covered under this TSB.NOTE: This Database "DATABASE.EXE" now has a version number. Please follow the instruction in the operator's manual to check the version installed in your computer.
- Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 or 09910-06521 to the vehicle and run the ECM reprogramming software. If the message "[4028] ECU already has the latest version" appears, click "OK" and "Finish" and then continue to step 6.NOTE: If you believe the code "[4028] ECU already has the latest version" is false, check that the Database has been properly installed. See step 4 and try programming again. If after installing the Database properly code 4028 appears again, no further action is required.

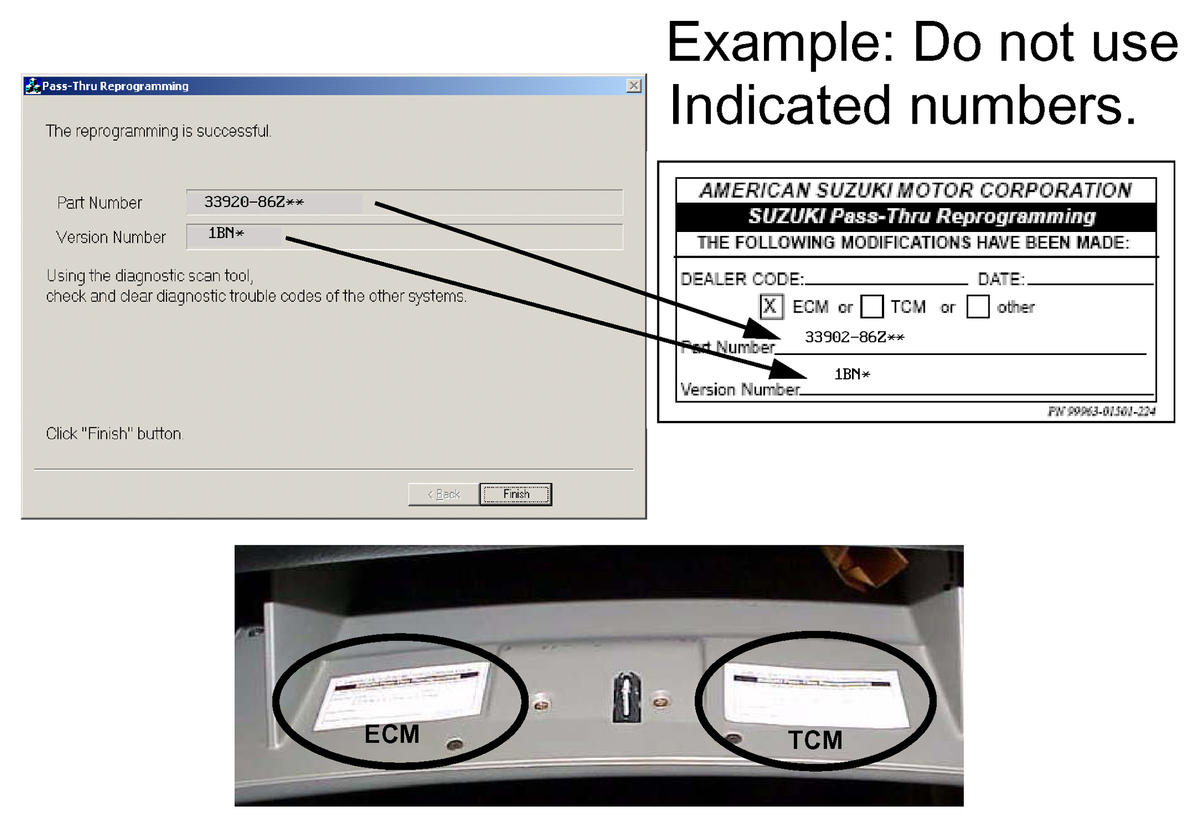

- Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.
