ECM Reprogramming For False Slow O2 Sensor DTCS (TS_07_11025R)

ECM REPROGRAMMING FOR FALSE SLOW O2 SENSOR DTCS

TECHNICAL SERVICE BULLETIN

REVISION

The Warranty Claim Information has been updated. The Failed Part Number has been changed.

CONDITION

ECM software may produce false slow O2 sensor DTCs (P0133 and/or P0153) or (P0139 and/or P0159).

CAUSE

ECM software logic.

CORRECTION

Reprogram the Engine Control Module (ECM) on all vehicles in dealer inventory and at no charge on all customer vehicles that are brought into Suzuki dealerships for any reason.

REQUIRED TOOLS AND SOFTWARE

Part Numbers	Description	Qty	Notes
09910-06520	SDS Tool Kit	1	Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable
Suzuki Pitstop	3_SOFTWARE.EXE	1	Most Current Pass-Thru Reprogramming Software
Suzuki Pitstop	4_DATABASE1.EXE	1	Most Current Pass-Thru Reprogramming Database Calibration Files
99963-01501-224	Reprogram Label	1	Please Fill Out Completely and Affix to the Interior of the Glove Box
Suzuki Pitstop	Suzuki Pass-Thru Reprogramming Tool Operator's Manual	1	Must be read and understood completely before attempting to reprogram a vehicle

WARRANTY CLAIM INFORMATION

Labor Operation	Description	Failed Part Number	Complaint Code	Defect Code	Labor Time
FB32P0	Controller Assy, EFI	33920-86Z14	34	99	0.3 Hrs

Reprogramming Procedure

1. First check the Reprogramming label in the glove box to see what Version Number is present. If it shows Version Number 1BNH, 1BNL, 1BNF or 1BNJ do not continue, the reprogramming has already been done. If not continue to the next step.
2. Log onto the SCAT system and access the Suzuki Pitstop.
3. Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
4. Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "3_SOFTWARE.EXE" if it is not already installed.
5. Download and unzip Suzuki Pass-Thru Reprogramming Data Base "4_DATABASE1.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files. This step is only required to be done once to accommodate all vehicles covered under this TSB.
   NOTE: This Database "4_DATABASE1.EXE" has been updated with newer data for reprogramming without changing the file name. You are requested to download in order to update the database in your PC.
6. Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the ECM reprogramming software, continue to step 7.

   If the message "[4028] ECU already has the latest version" appears, click "OK" and "Finish". Check that the Database has been properly installed, see step  5. Try reprogramming again. If after installing the Database properly code 4028 appears again, no further action is required.

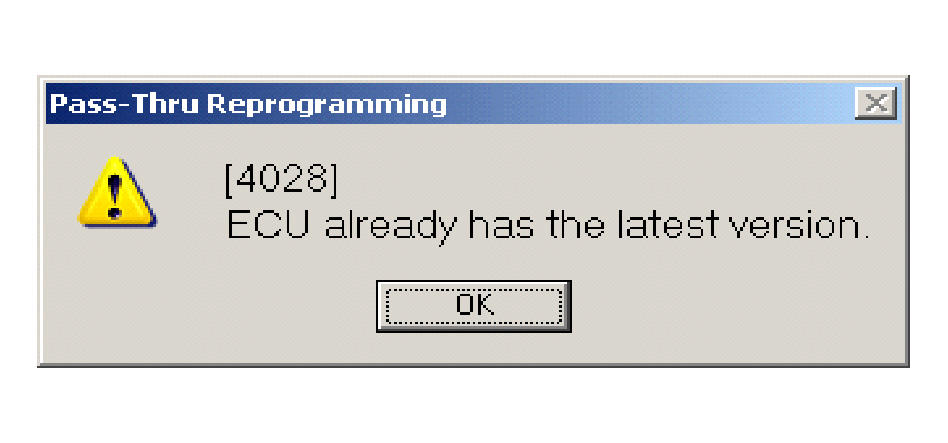

   Fig 1: Identifying Message "[4028] ECU Already Has Latest Version"

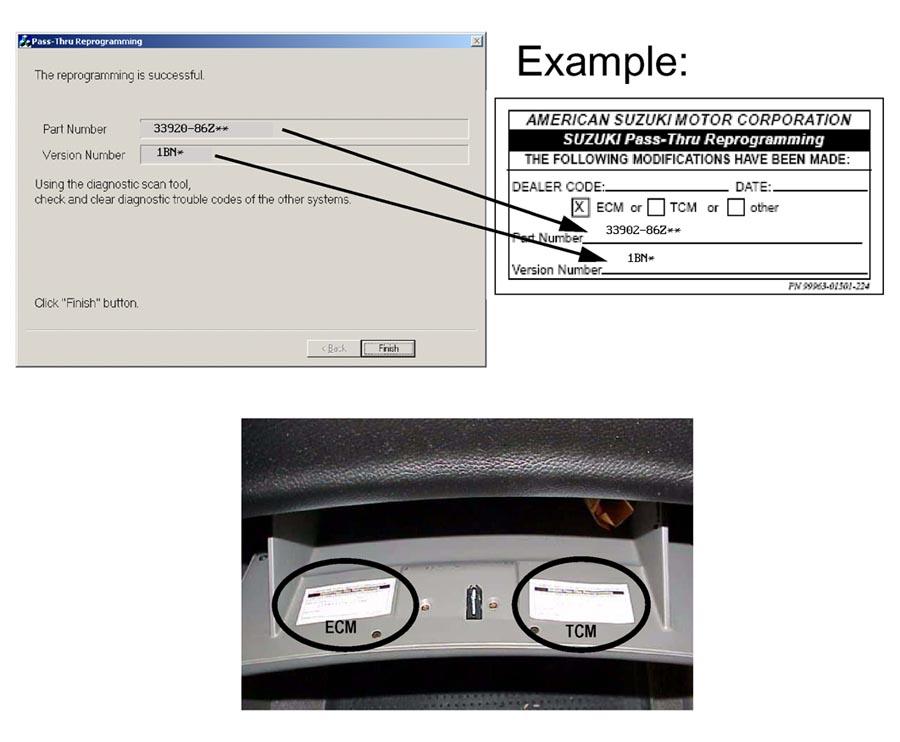

7. Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.
