TCM Reprogramming To Improve Transmission Shift Quality (TS_05_06035)
Publication date: 2005-09-29Reference number: TS_05_06035
Supersedes refnos: TS_01_09295R
TCM REPROGRAMMING TO IMPROVE TRANSMISSION SHIFT QUALITY
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 01 09295R, Date of Issue:
September 29, 2005
| SUZUKI: | 2004 VERONA |
| SECTION: | Transmission |
REVISION
The Warranty Claim Information has been changed. And the TSB number has been changed to fit the correct Section Title. TSB Engine 05 06035 is now obsolete.
CONDITION
Transmission slow upshift and passing gear downshift delay.
CAUSE
Transmission Control Module (TCM) Software Logic
CORRECTION
Transmission shift quality can be improved by reprogramming the TCM. Follow the reprogramming procedure described below.
MATERIALS REQUIRED
MATERIALS REQUIRED DESCRIPTION
| Part Numbers | Description | QTY | Notes |
|---|---|---|---|
| 09910-06520 | SDS Tool Kit | 1 | Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable |
| suzukipitstop.com | 3_SOFTWARE.EXE | 1 | Most currant Pass-Thru Reprogramming Software |
| suzukipitstop.com | 4_DATABASE1.EXE | 1 | Most Currant Pass-Thru Reprogramming Database Calibration Files |
| suzukipitstop.com | Suzuki Pass-Thru Reprogramming Tool Operator's Manual | 1 | Must be read and understood completely before attempting to reprogram a vehicle |
| 99963-01501-224 | Reprogram Label | 1 | Please fill out completely and affix to the interior of the glove box. |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION DESCRIPTION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| FB33P0 | Controller Assm, Trans | 33910-86Z00 | 21 | 48 | 0.3 Hrs |
Reprogramming Procedure
- Log onto the SCAT system and access the Suzuki Pitstop. Click on "OBD/OBDII DIAGNOSTICS"
- Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the TCM.
- Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "3_SOFTWARE.EXE" and the Suzuki Pass-Thru Reprogramming Data Base Calibration "4_DATABASE1.EXE" onto your PC.
- Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the TCM reprogramming software.

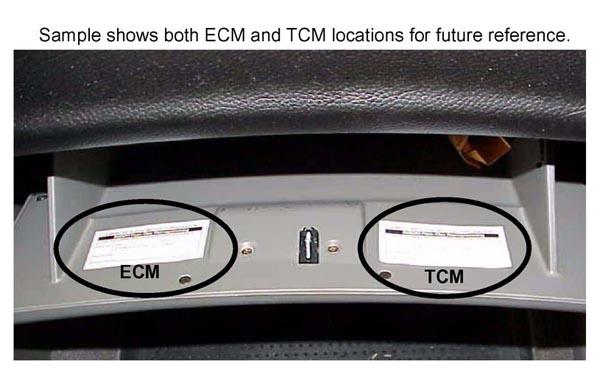

- When the TCM reprogramming is complete fill out the Reprogram Label P/N 99963-01501-224 and affix it to the inside right of the glove box door as pictured below.
