Cruise Control: Testing and Inspection

Cruise Control System Diagnosis:

Cruise Control System Diagnosis

Test Description
The number(s) below refer to step(s) on the diagnostic table.
5. The electromagnetic clutch in the cruise control actuator is grounded through the brake lamps.

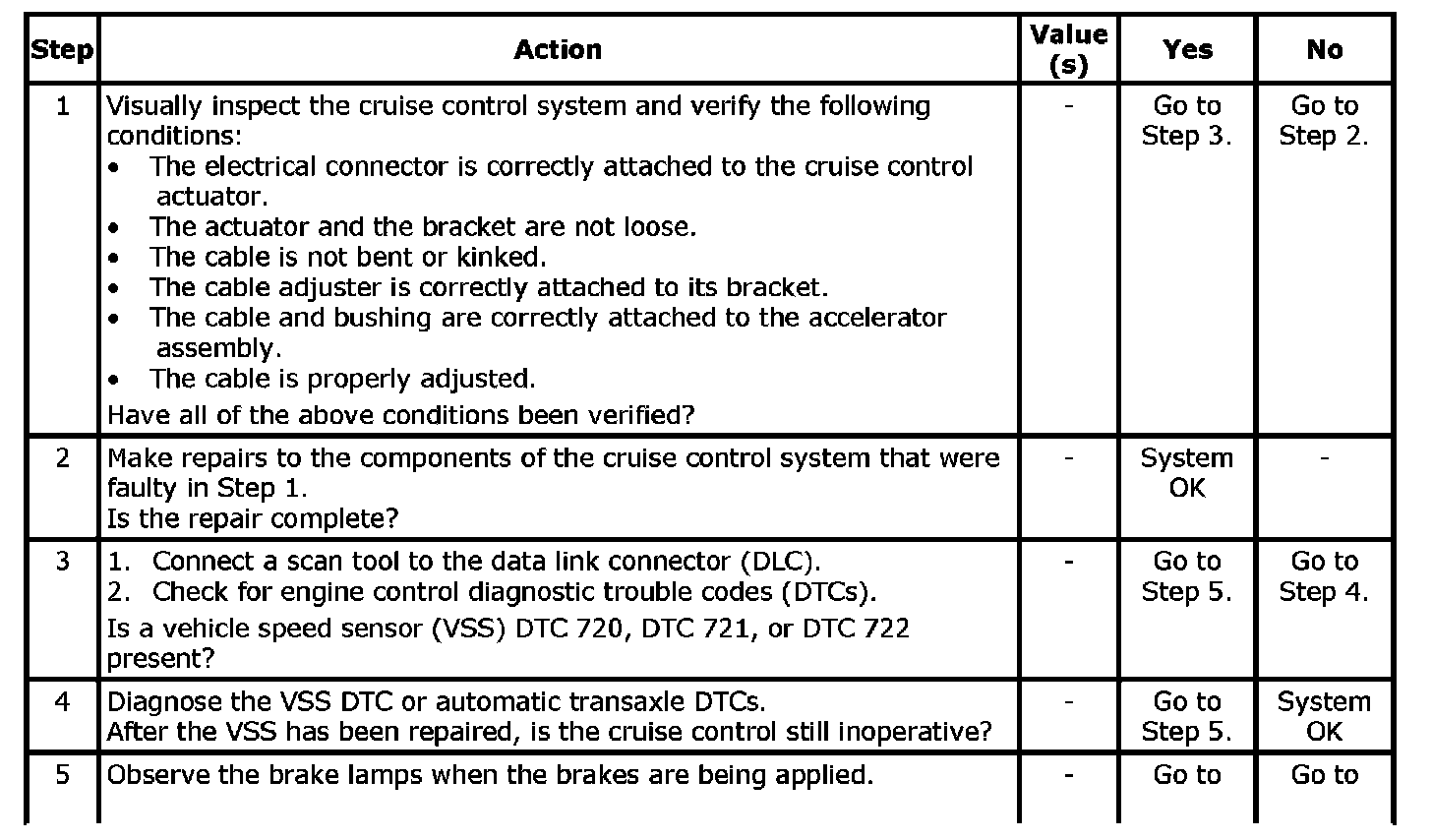

Step 1 - 5:

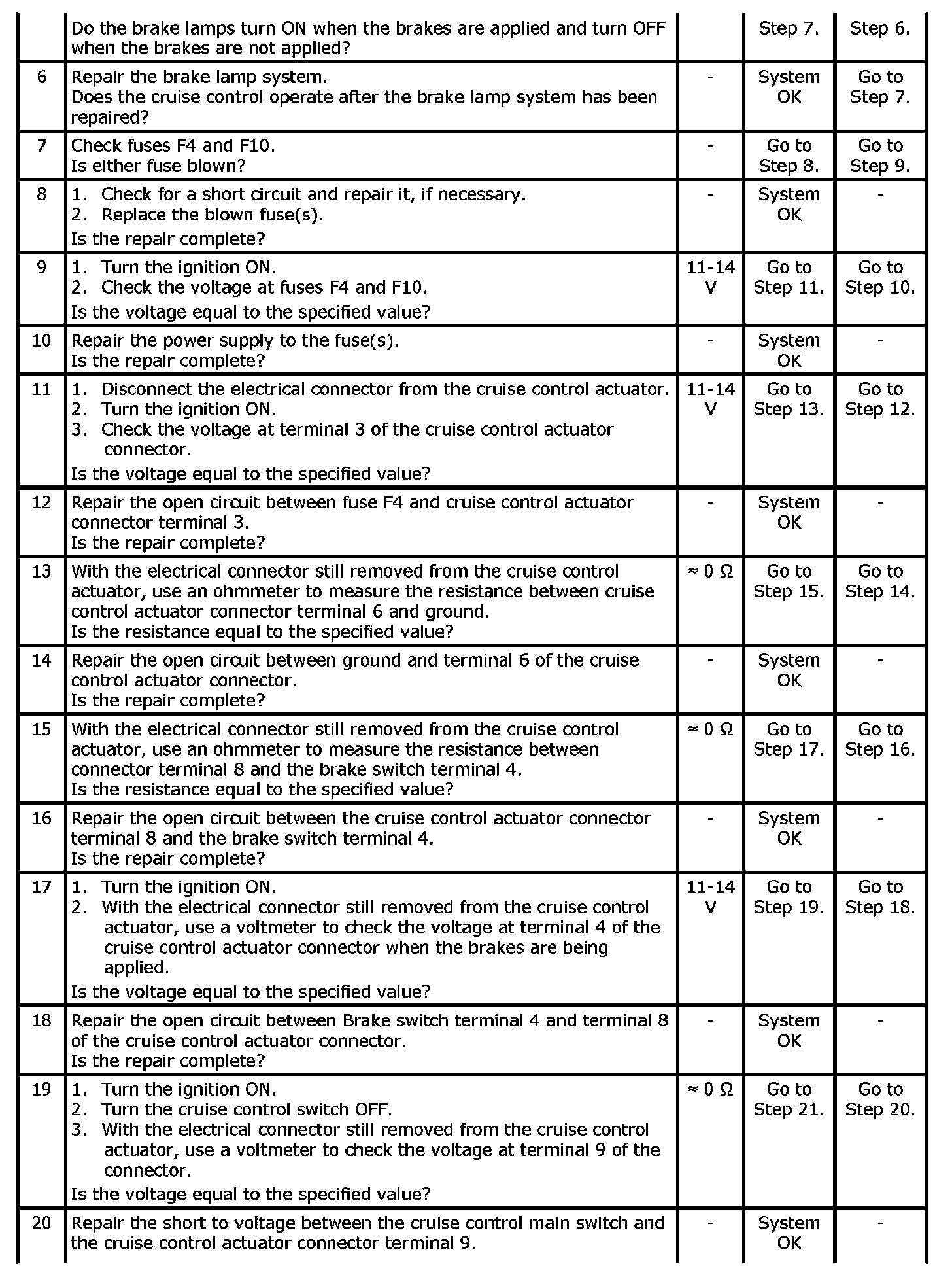

Step 6 - 20:

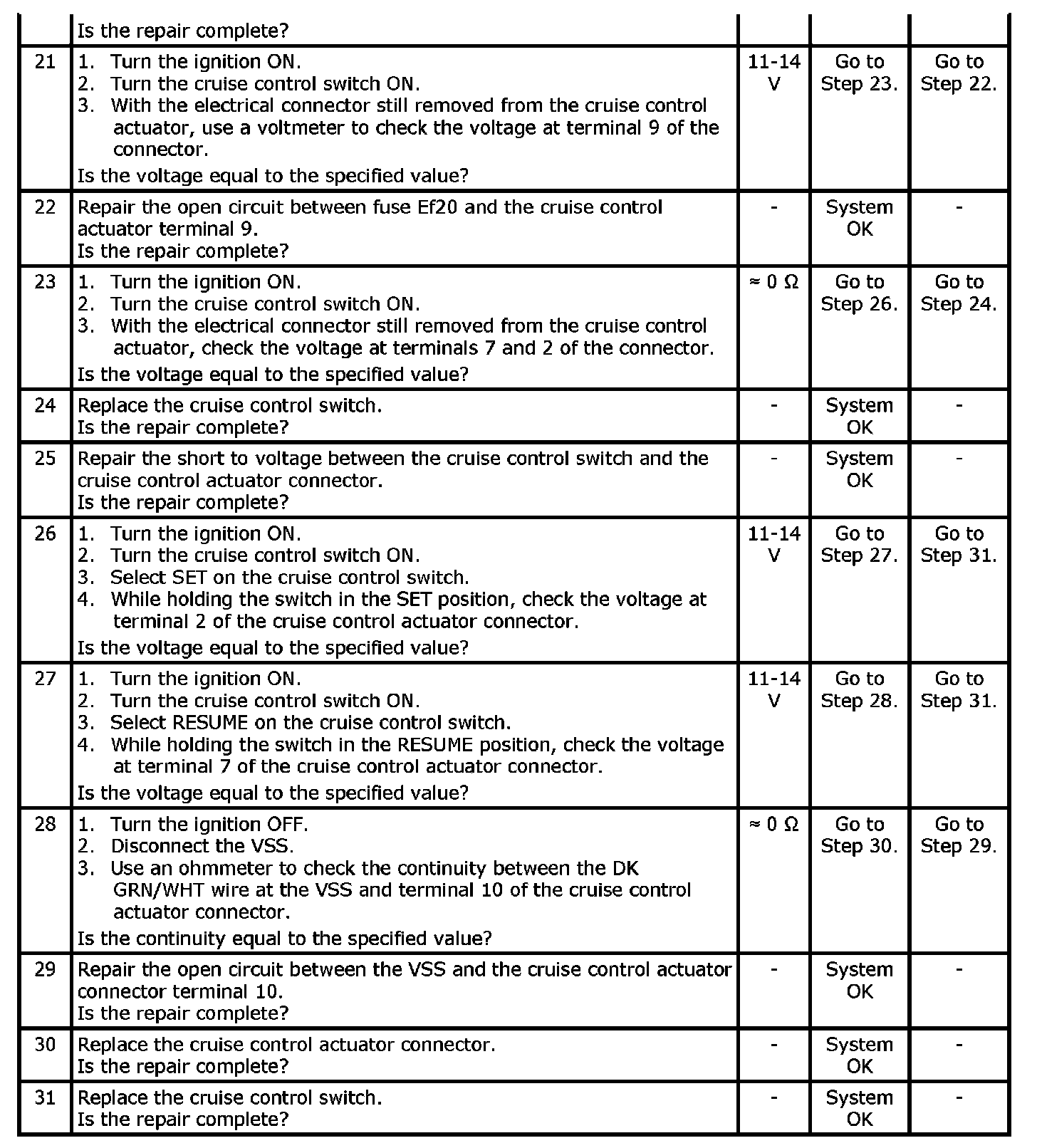

Step 21 - 31:

Cruise Control Does Not Operate
