Toe Adjustment

Rear Toe Adjustment
1. Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors.

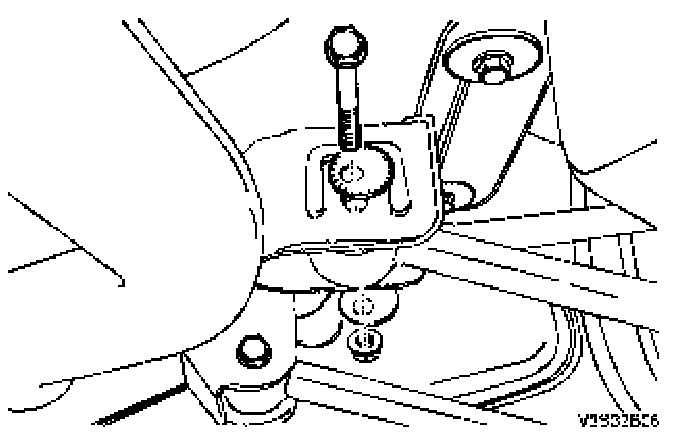

2. Loosen the front parallel link cam bolt to crossmember.





3. Tighten the front parallel link cam bolt to 40 Nm (30 ft. lbs.).
4. Adjust the rear toe specification.





5. Tighten the front parallel link cam bolt to 80 Nm (59 ft. lbs.).
