Timing Component Alignment Marks: Locations
Timing Marks

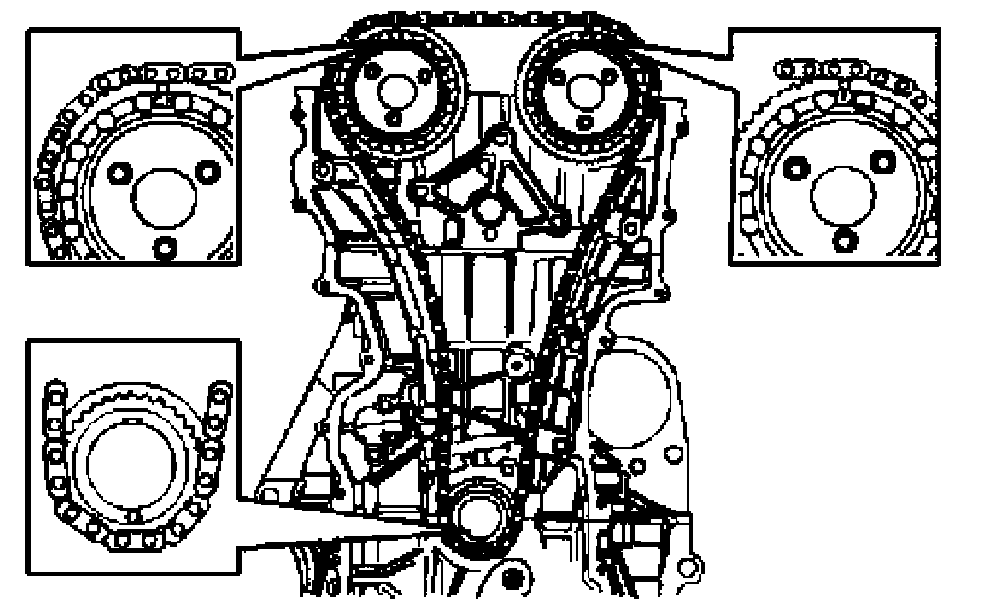

Make sure the three timing marks on the timing chain are exactly aligned with the marks on the exhaust camshaft sprocket, intake camshaft sprocket, and crankshaft sprocket respectively.
Timing Marks
Make sure the three timing marks on the timing chain are exactly aligned with the marks on the exhaust camshaft sprocket, intake camshaft sprocket, and crankshaft sprocket respectively.
