DTC P0532: A/C Pressure Sensor Circuit Low Input: Notes

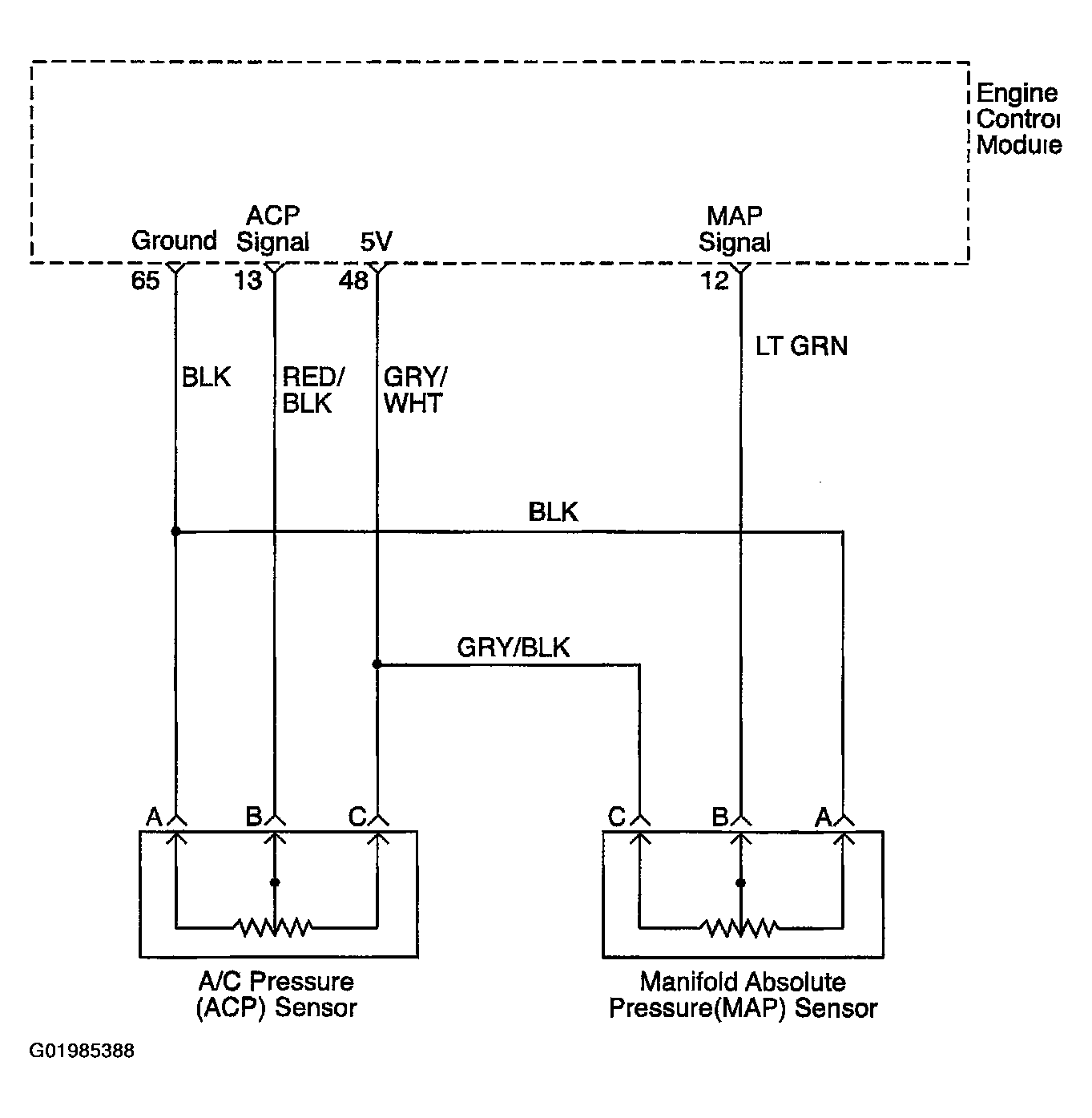

Fig 1: DTC P0532: A/C Pressure Sensor Circuit Low Input - System Wiring Diagram
G01985388Courtesy of SUZUKI OF AMERICA CORP.
