Diagnostic Aids

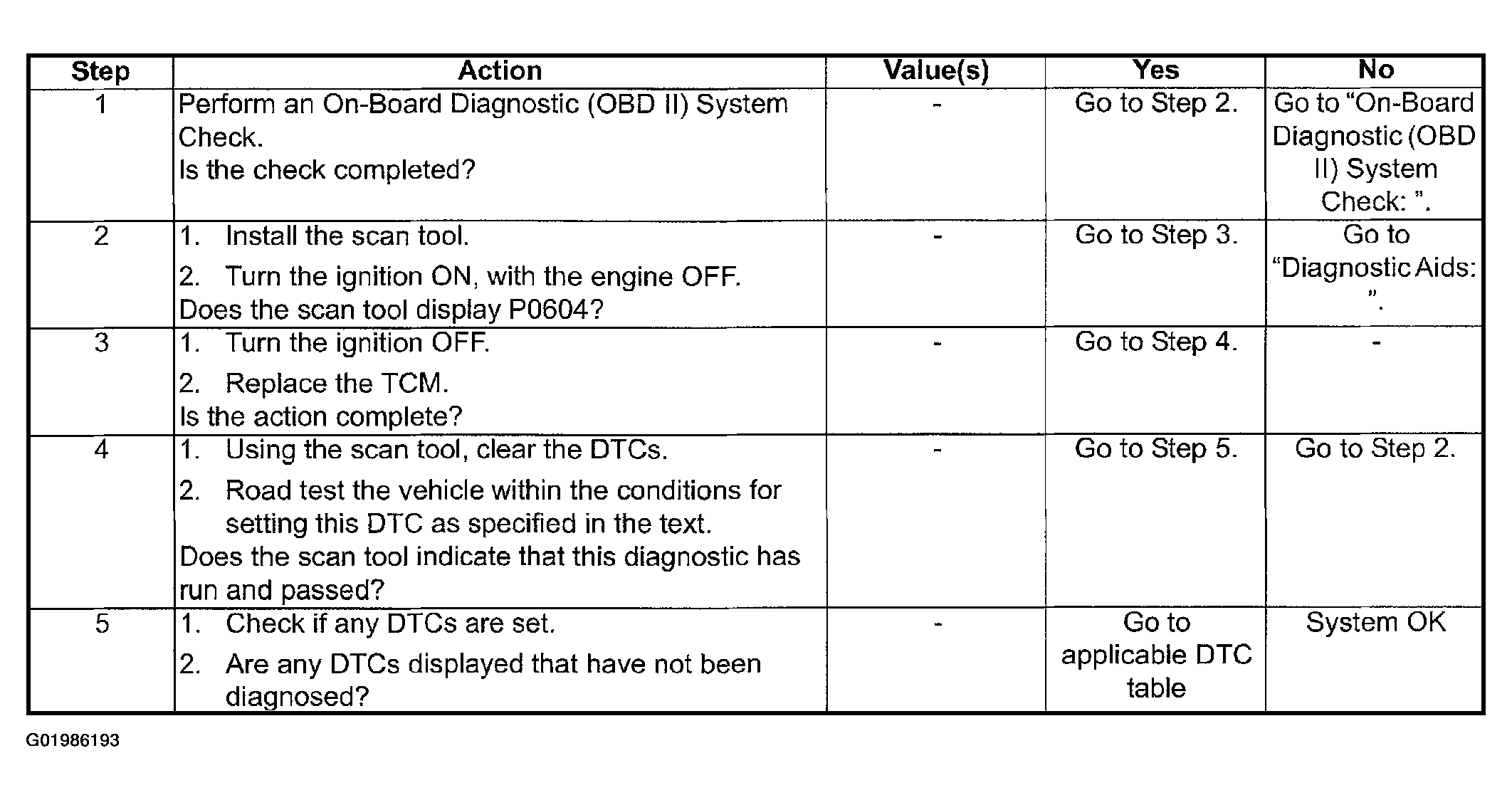

Fig 1: DTC P0604: Internal Control Module Random Access Memory (RAM) Error Diagnostic Chart
G01986193Courtesy of SUZUKI OF AMERICA CORP.
