DTC Troubleshooting

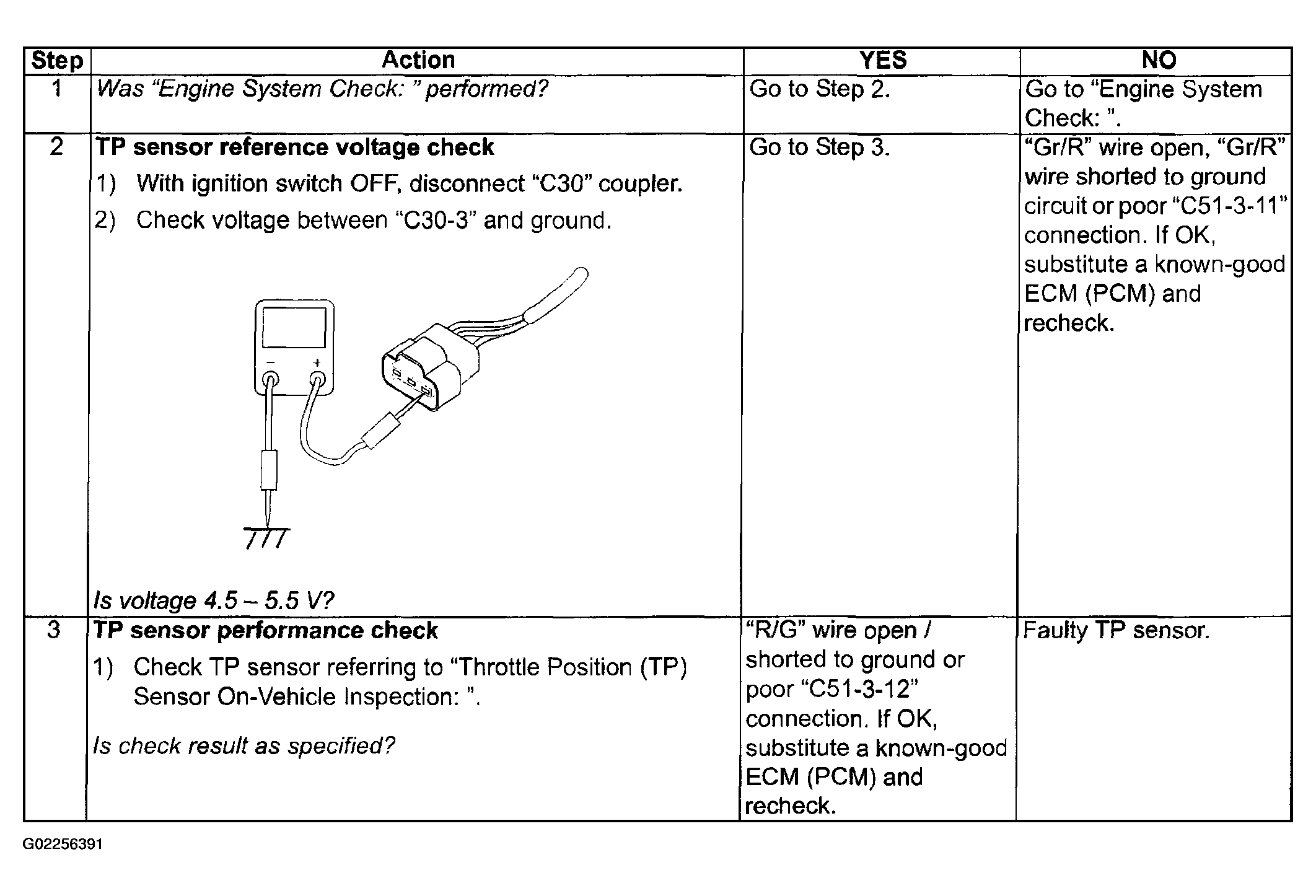

Fig 1: DTC P0122: Throttle Position (TP) Sensor Circuit Low Input Troubleshooting Chart
G02256391Courtesy of SUZUKI OF AMERICA CORP.
