System/Wiring Diagram

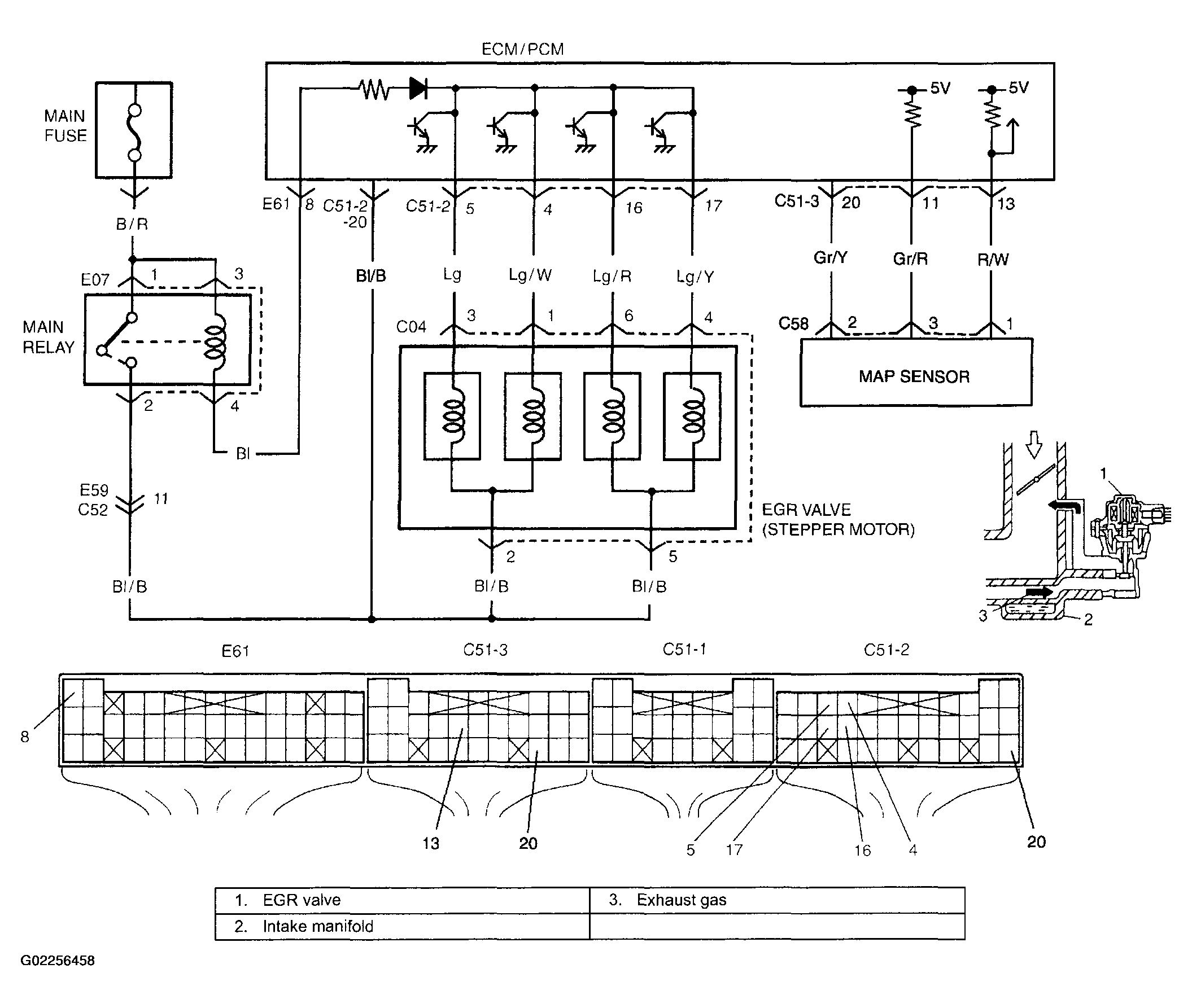

Fig 1: DTC P0401 / P0402: Exhaust Gas Recirculation (EGR) Flow Insufficient Detected/Excessive Detected System/Wiring Diagram
G02256458Courtesy of SUZUKI OF AMERICA CORP.
