Tightening Torque Specifications: Notes

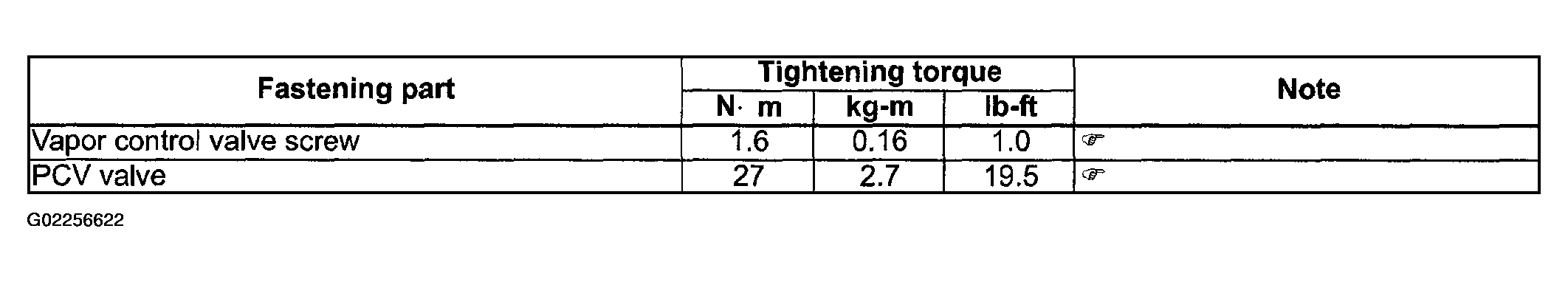

Fig 1: Tightening Torque Specifications Chart
G02256622Courtesy of SUZUKI OF AMERICA CORP.
