Electronic Control System Wiring Circuit

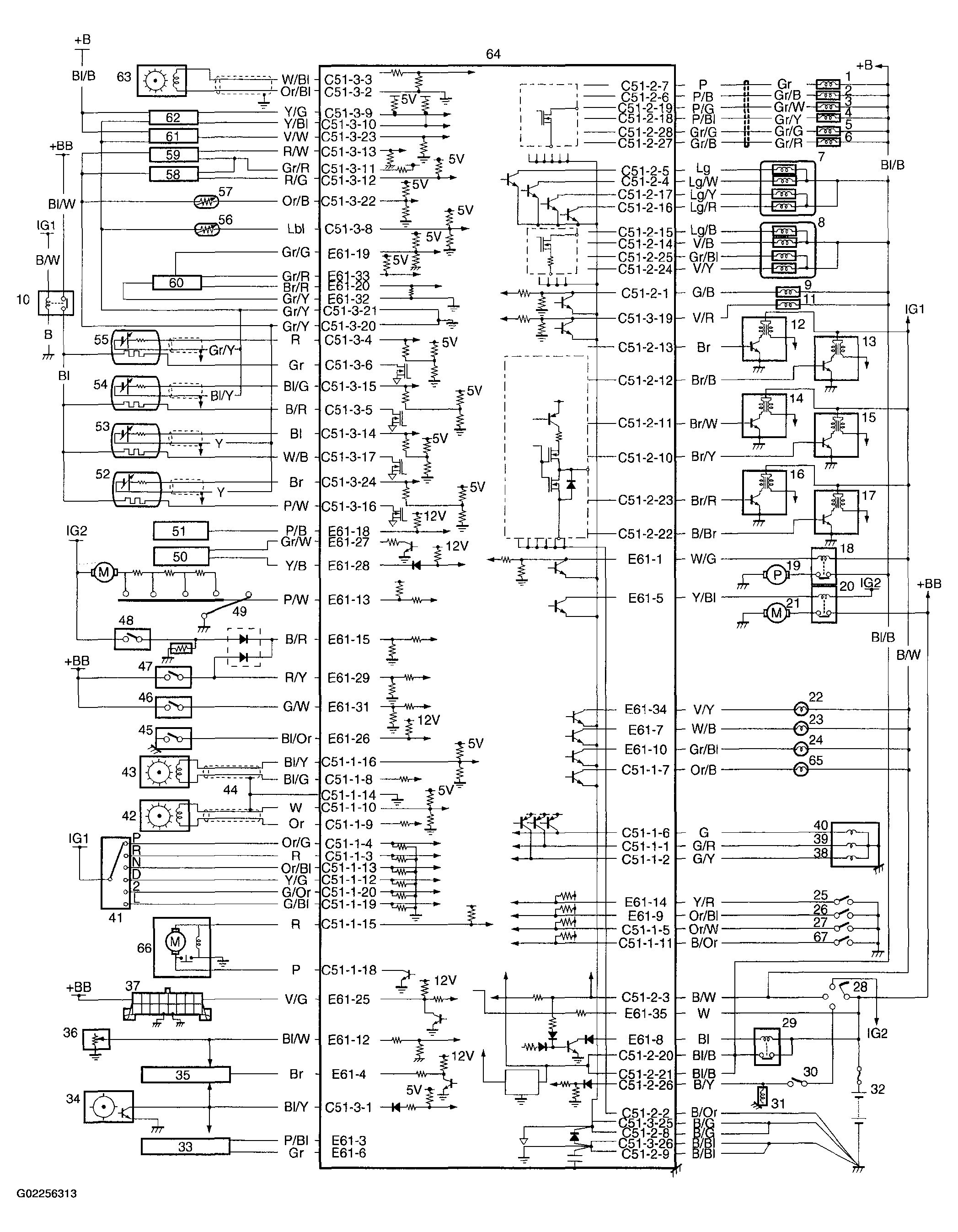

Fig 1: Electronic Control System Wiring Circuit

Courtesy of SUZUKI OF AMERICA CORP.

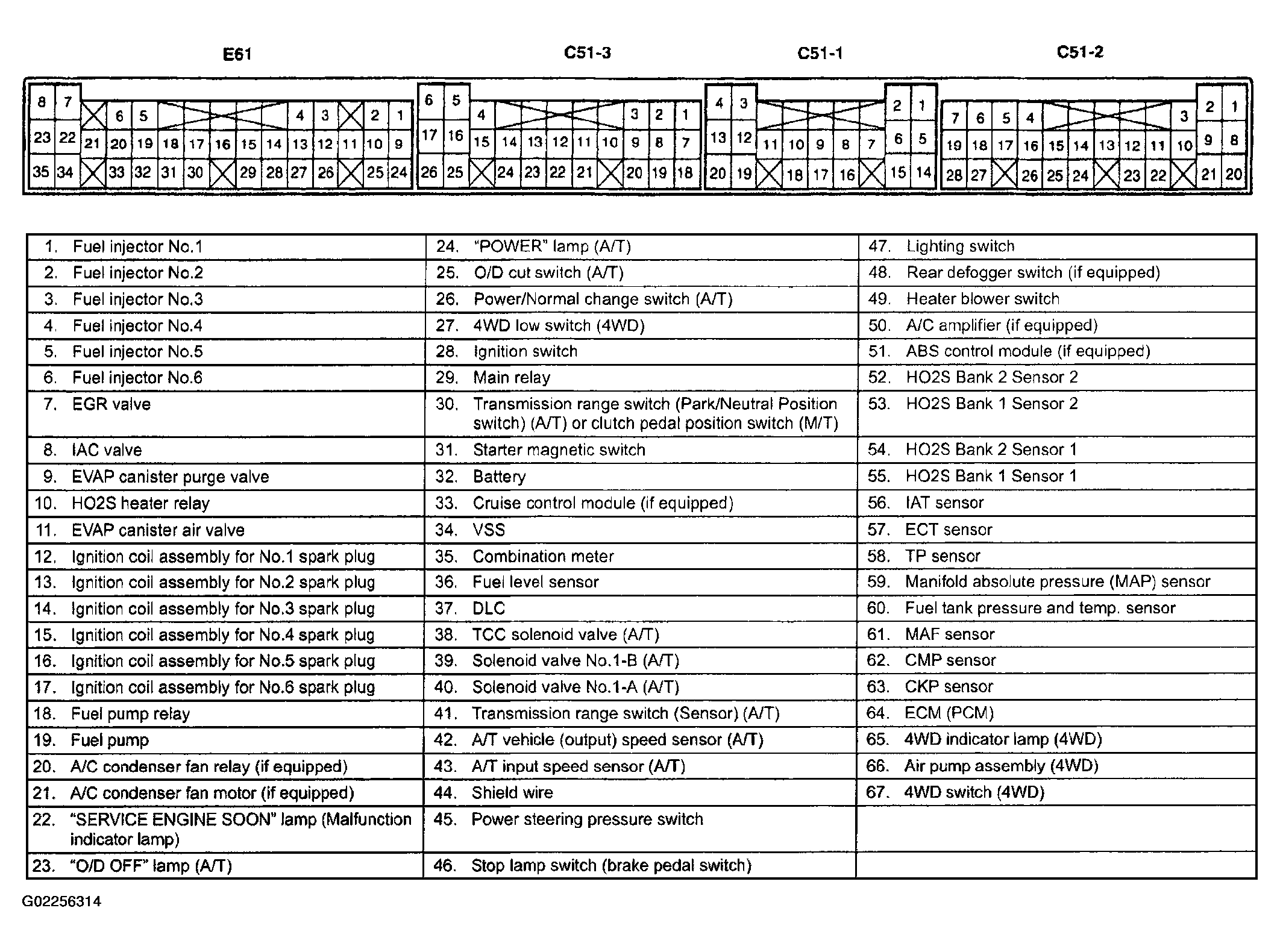

Fig 2: Identifying Terminal Arrangement Of ECM (PCM) Connector (Harness Side)

Courtesy of SUZUKI OF AMERICA CORP.

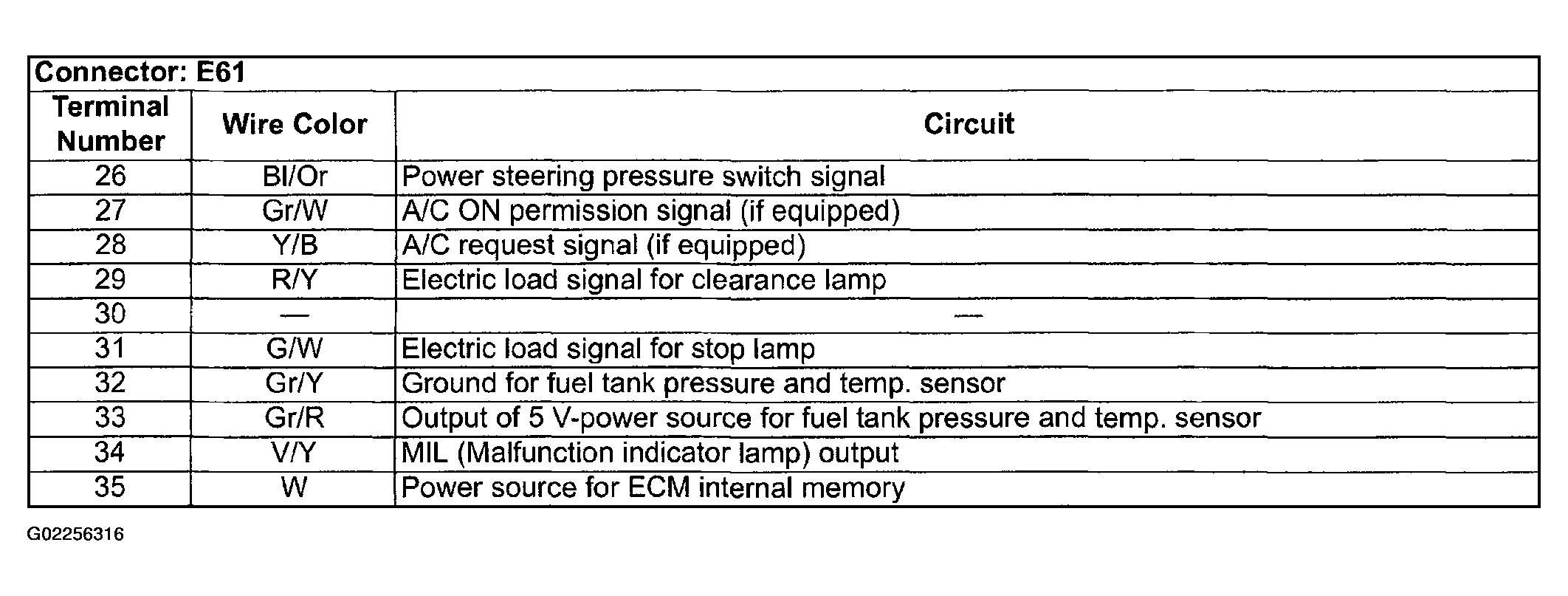

Fig 3: Identifying Connector E61 Terminals (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Identifying Connector E61 Terminals (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

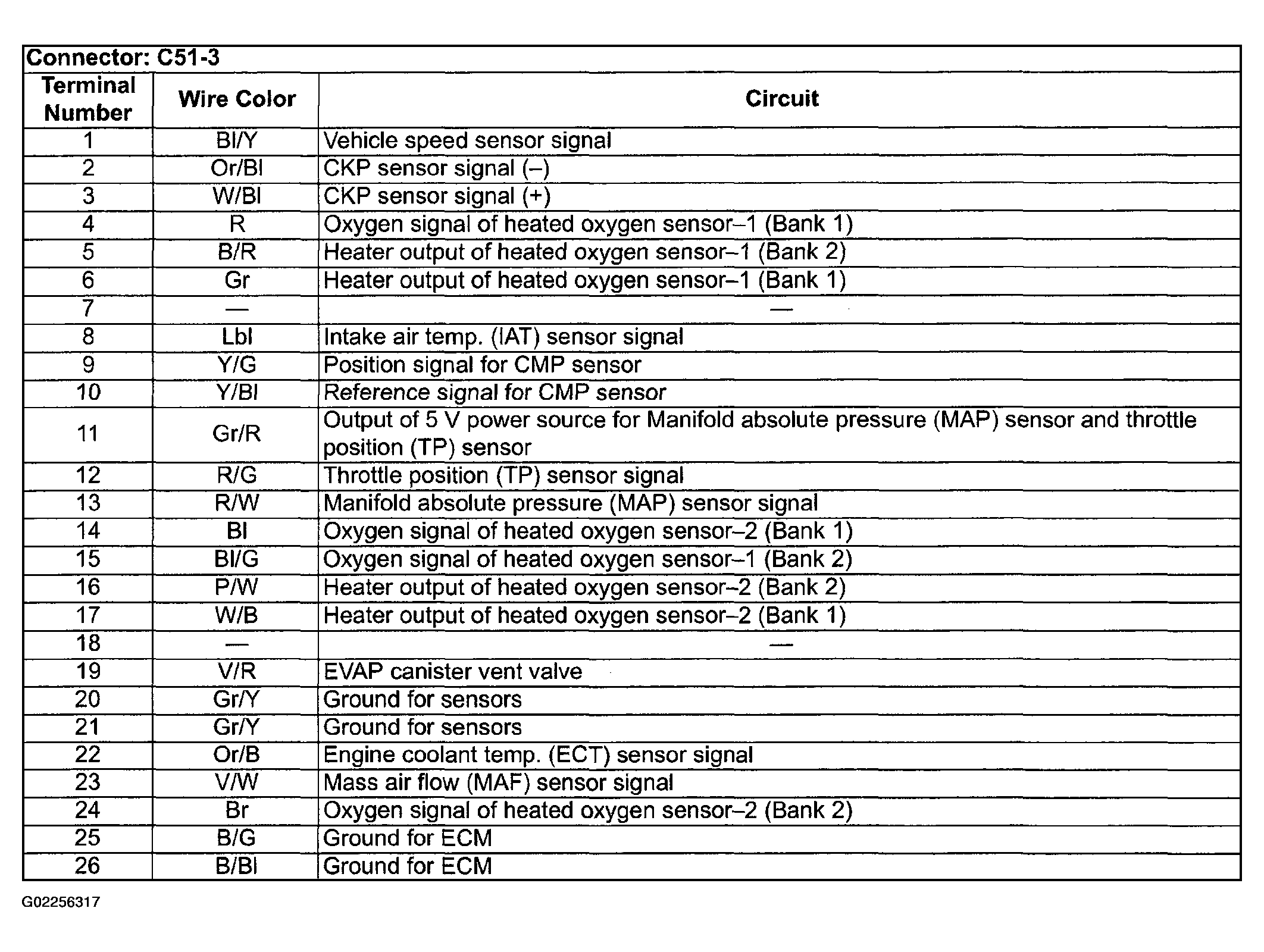

Fig 5: Identifying Connector C51-3 Terminals (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

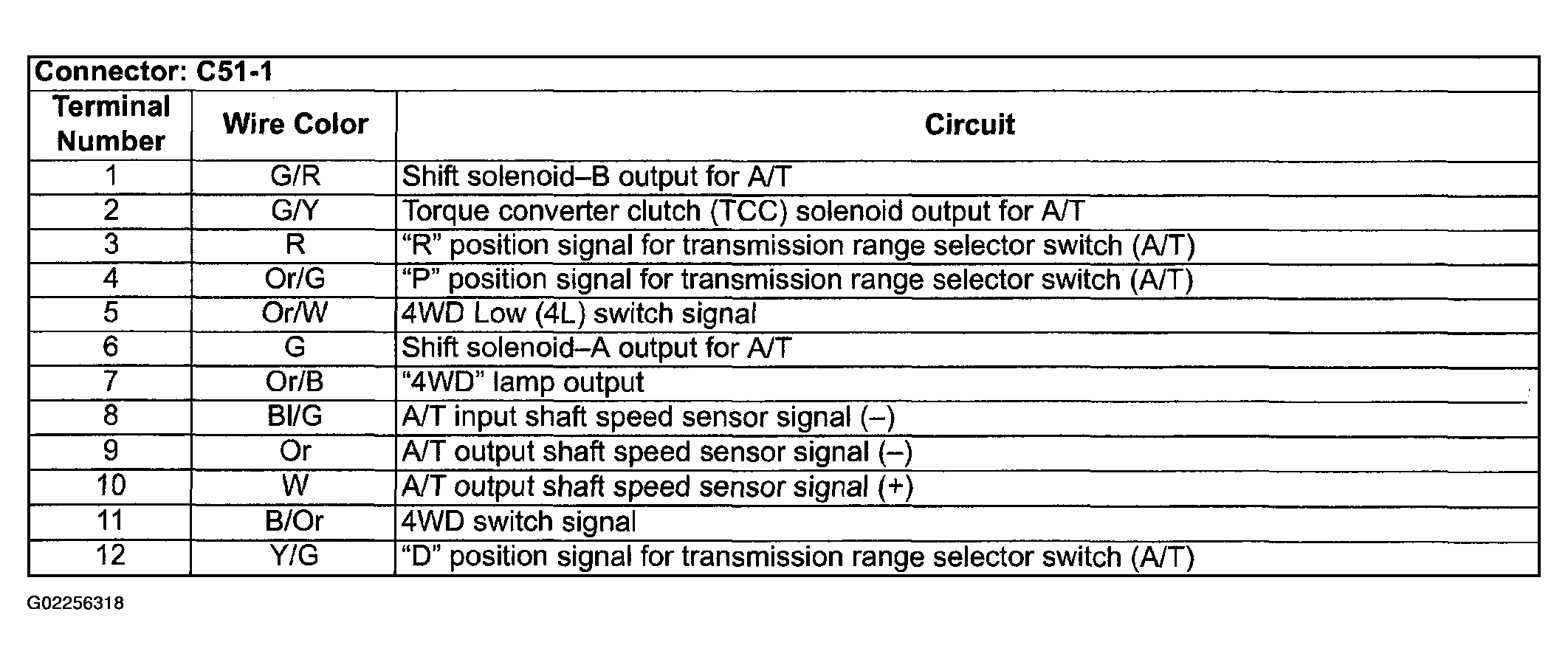

Fig 6: Identifying Connector C51-1 Terminals (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

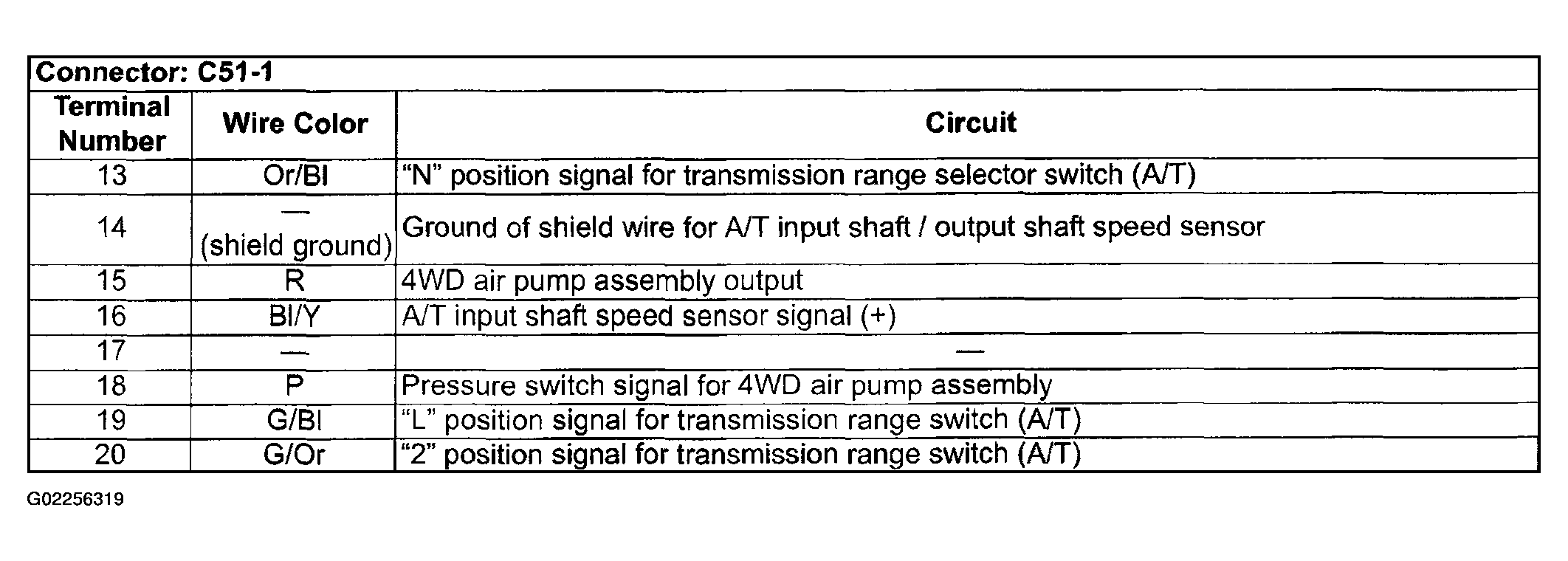

Fig 7: Identifying Connector C51-1 Terminals (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

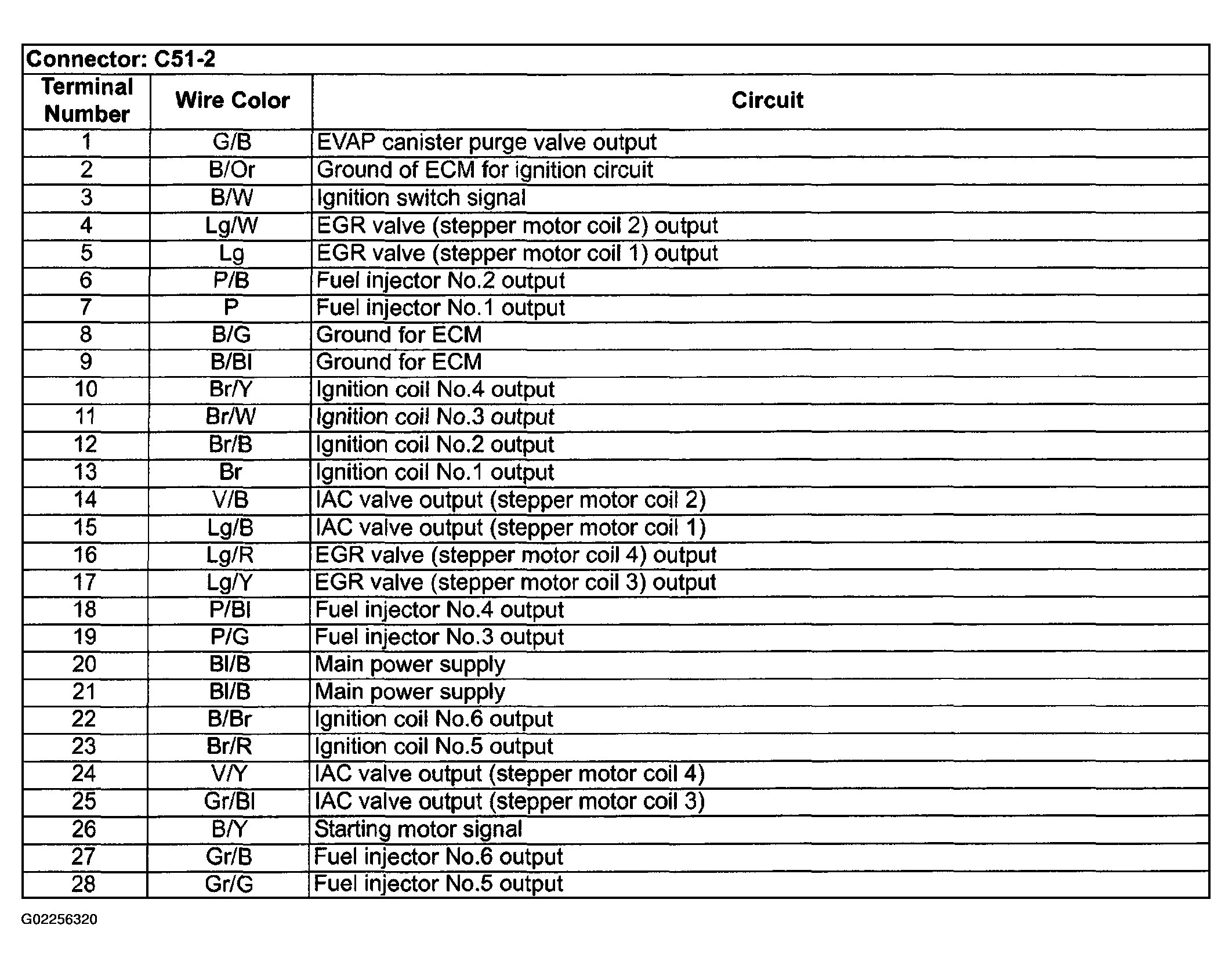

Fig 8: Identifying Connector C52-2 Terminals

Courtesy of SUZUKI OF AMERICA CORP.
