Engine and Emission Control Input / Output Table

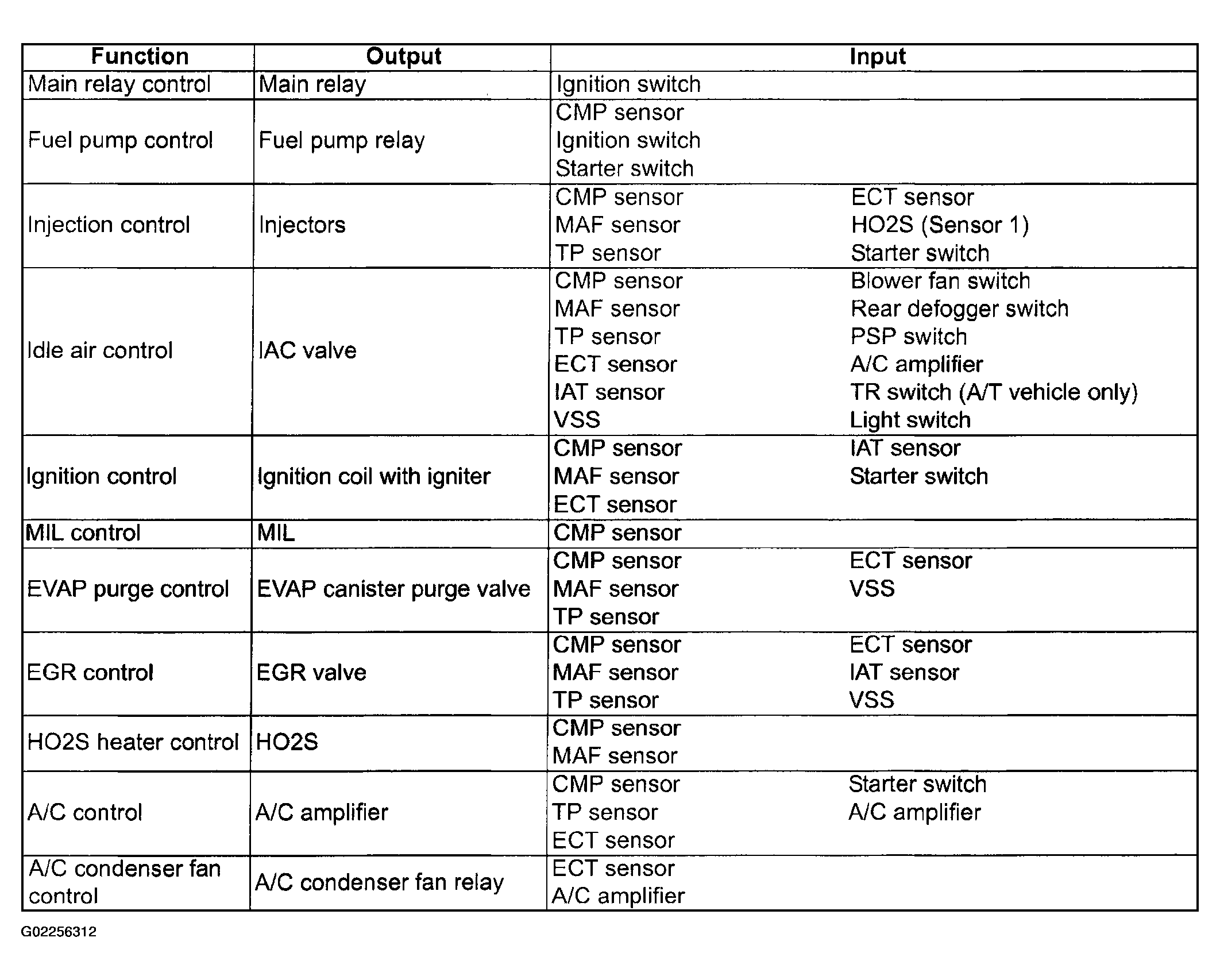

Fig 1: Engine & Emission Control Input / Output Table
G02256312Courtesy of SUZUKI OF AMERICA CORP.
