DTC P0122: Throttle Position Sensor Circuit Low Input: Wiring Diagram

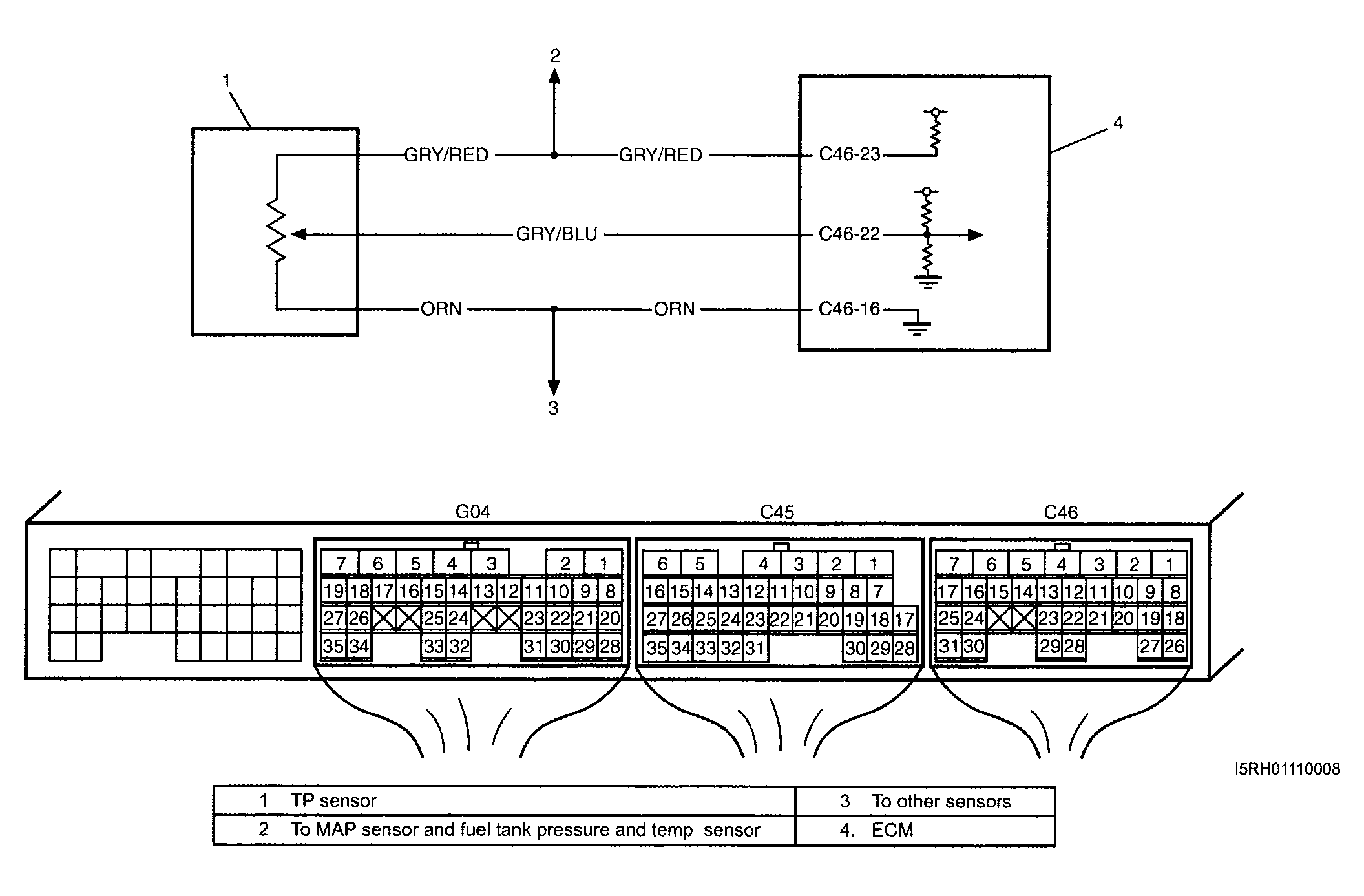

Fig 1: Throttle Position Sensor Circuit Low Input - Wiring Diagram (DTC P0122)
G04013705Courtesy of SUZUKI OF AMERICA CORP.
