System / Wiring Diagram

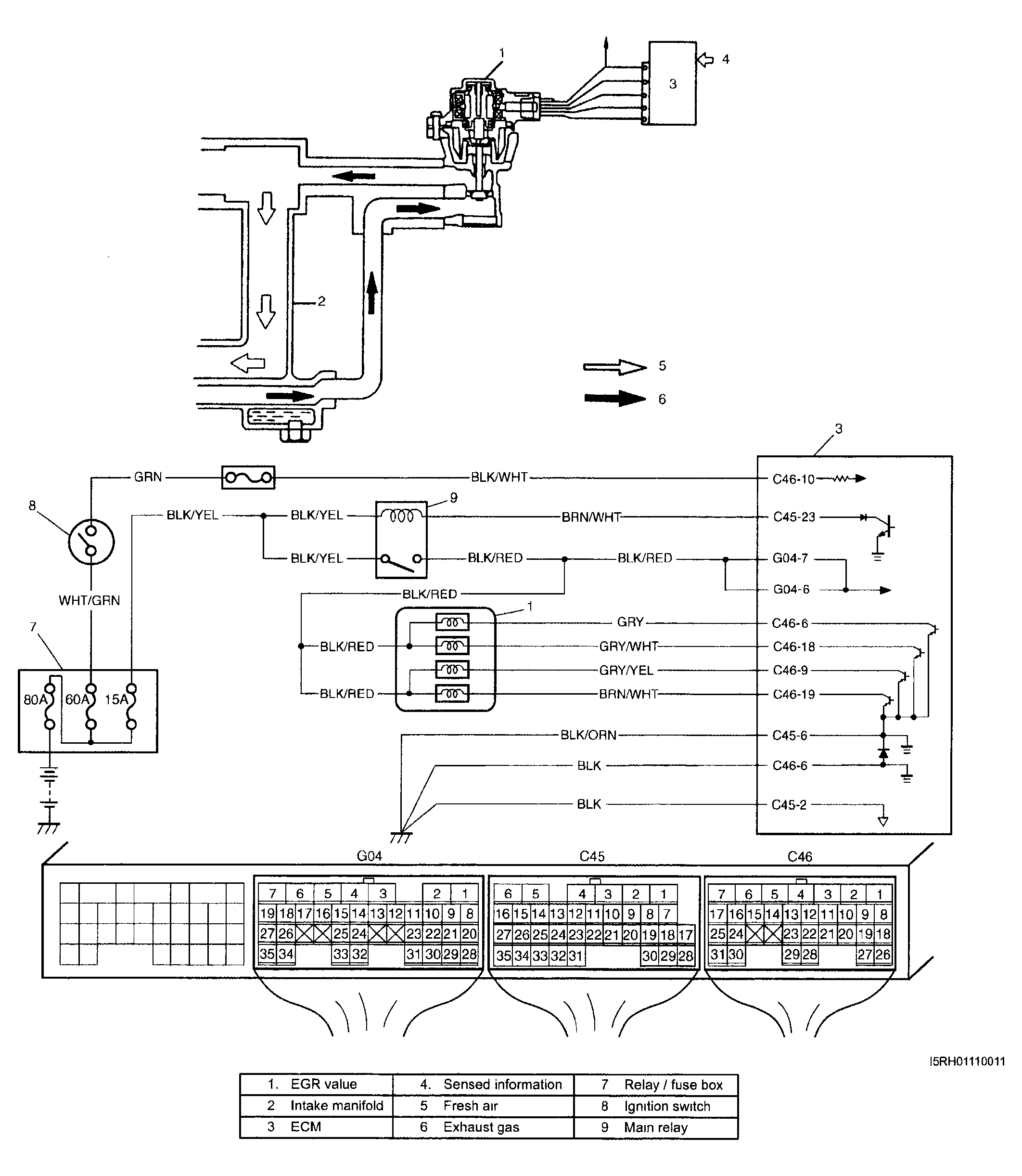

Fig 1: Exhaust Gas Recirculation Flow - Wiring Diagram (DTC P0401/P0402)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
