Procedures

Replacement Transmitter Battery

If transmitter becomes unreliable, replace transmitter battery as follows.

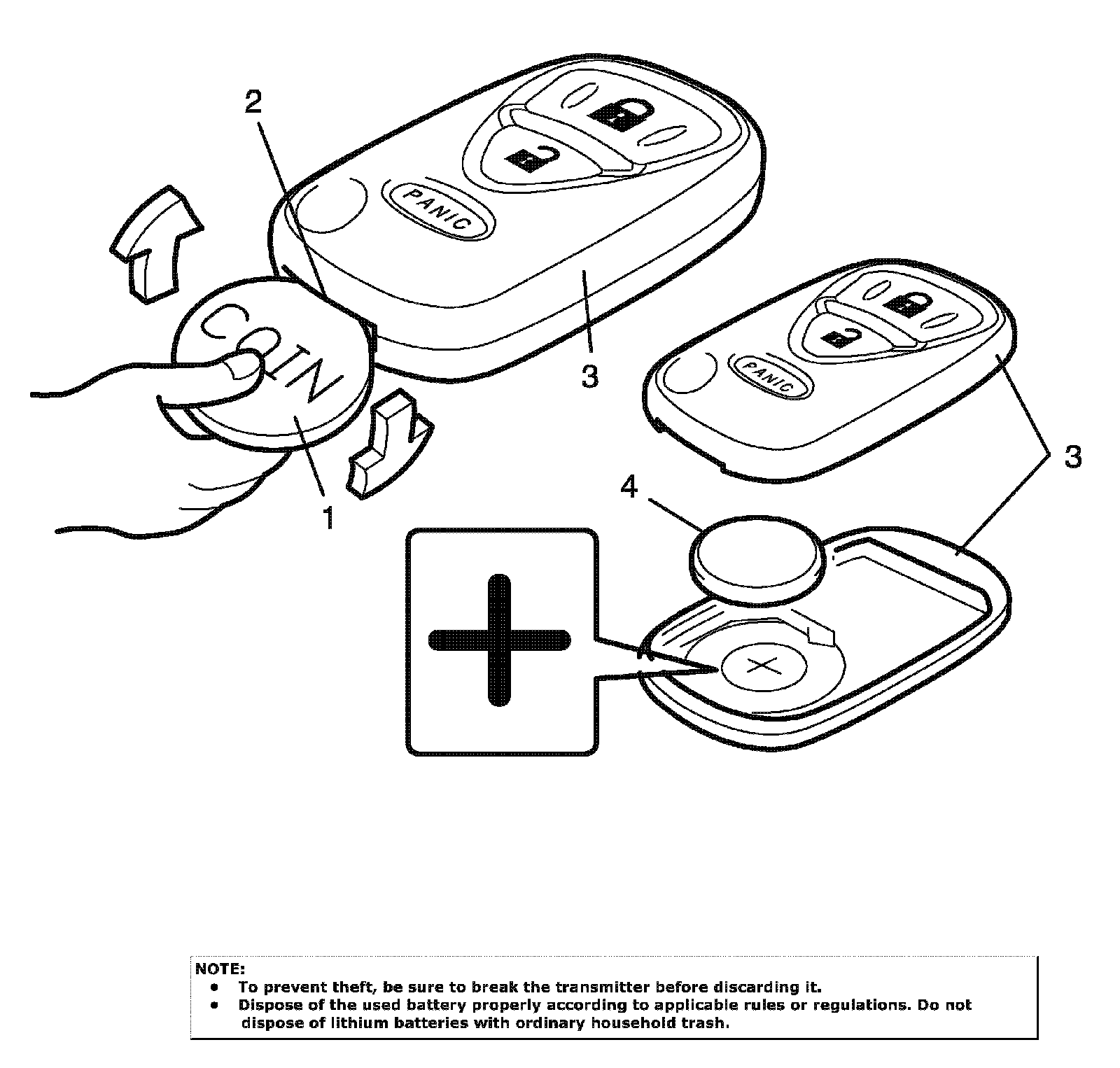

1. Put the edge of a coin (1) or a flat blade screw driver in the slot (2) of the transmitter (3) and pry it open.
2. Replace the battery (lithium disc-type CR2025 or equivalent) (4) so its "+" terminal faces the "+" mark of the transmitter (3).

CAUTION: Use care not to allow grease or dirt to be attached on the printed circuit board and the battery.

3. Close the transmitter (3) firmly.




4. Make sure the door locks can be operated with the transmitter (3).
