Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS) Removal and Installation

Removal
1. Hoist vehicle.

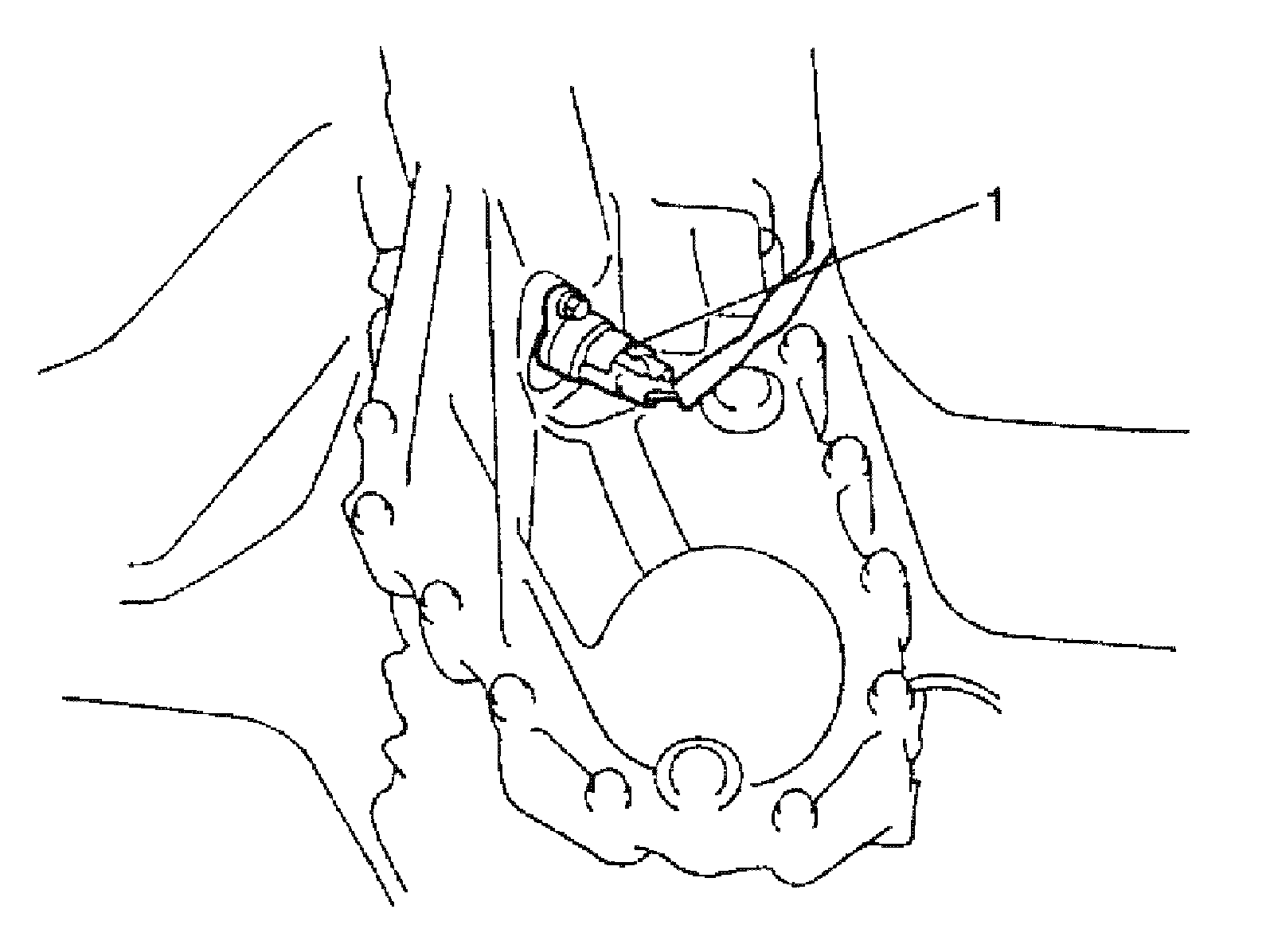

2. Disconnect coupler from VSS (1).




3. Remove VSS (1).

Installation




Reverse removal procedure for installation.

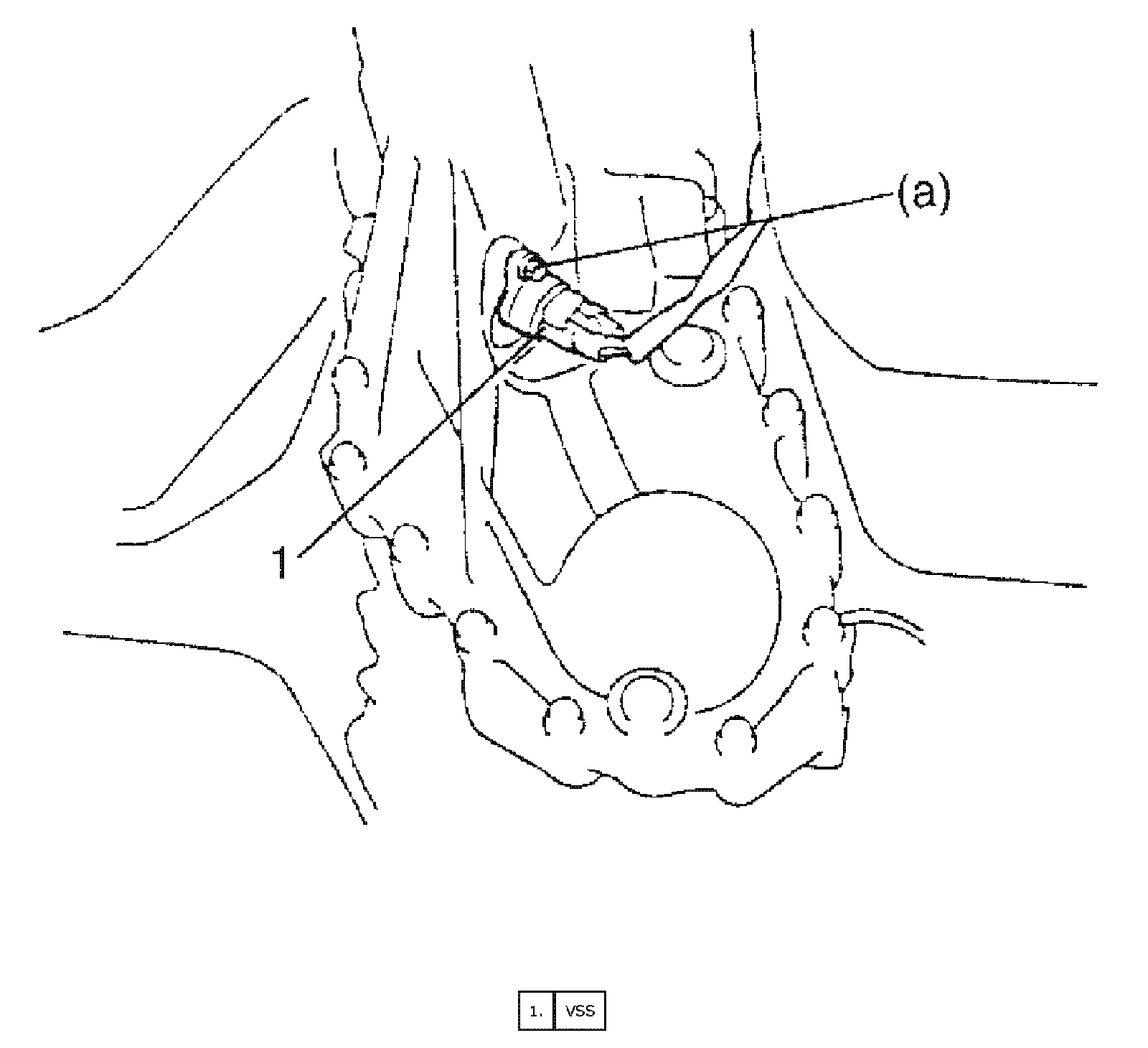

Tightening torque
Vehicle speed sensor bolt a: 5.5 N.m (0.55 kg.m, 4.0 lb.ft)
