Throttle Position Sensor Removal and Installation: Installation

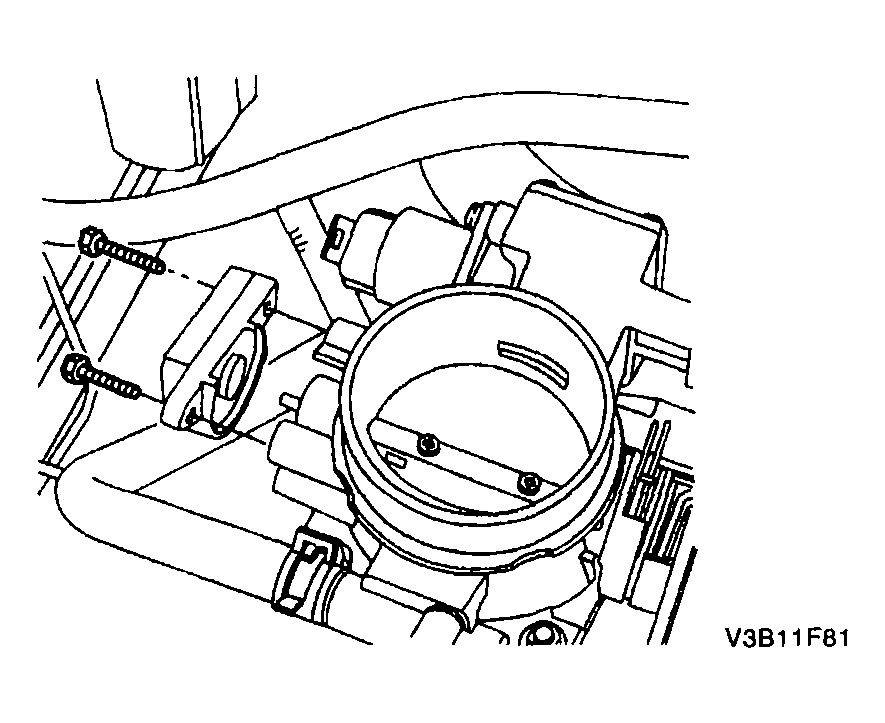

- With the throttle valve closed, position the TP sensor on the throttle shaft. Align the TP sensor with the bolt holes.
- Install the TP sensor retaining bolts.
Tighten
Tighten the throttle position sensor retaining bolts to 2 N.m (18 lb-in).
- Connect the TP sensor connector.
- Install the air intake tube and resonator.
- Connect the negative battery cable.
