Tightening Sequences

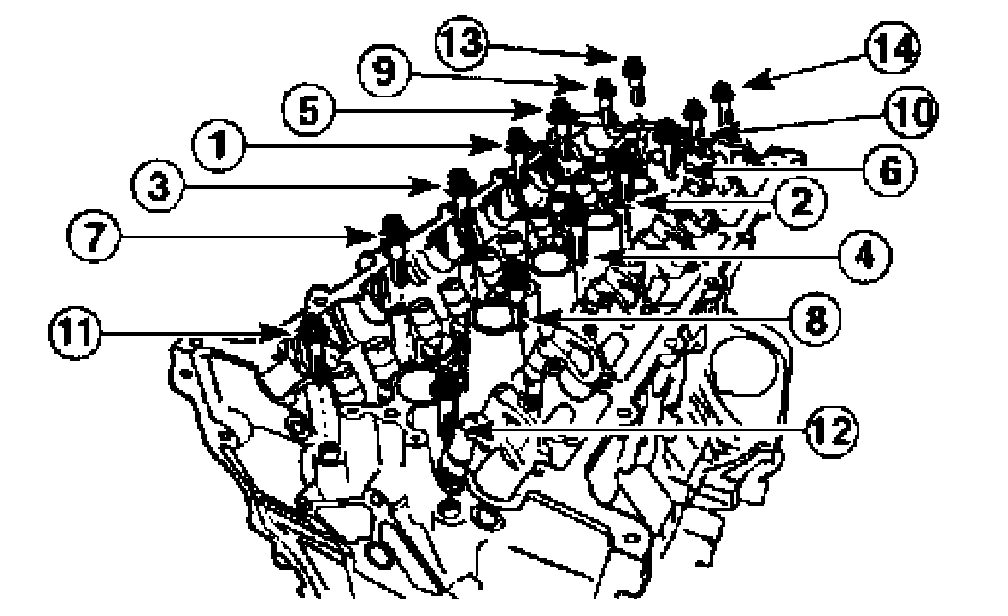

Cylinder head bolts in the sequence





Tighten the intake manifold retaining nuts and bolts.
Tighten the seven (7) intake manifold retaining bolts 10 - 14 Nm (89 - 124 inch lbs.)
Tighten the four (4) intake manifold retaining nuts 10 - 14 Nm (89 - 124 inch lbs.)
Tighten the two (2) bolts on the intake manifold support bracket 10 - 14 Nm (89 - 124 inch lbs.)
