Control Module: Service and Repair

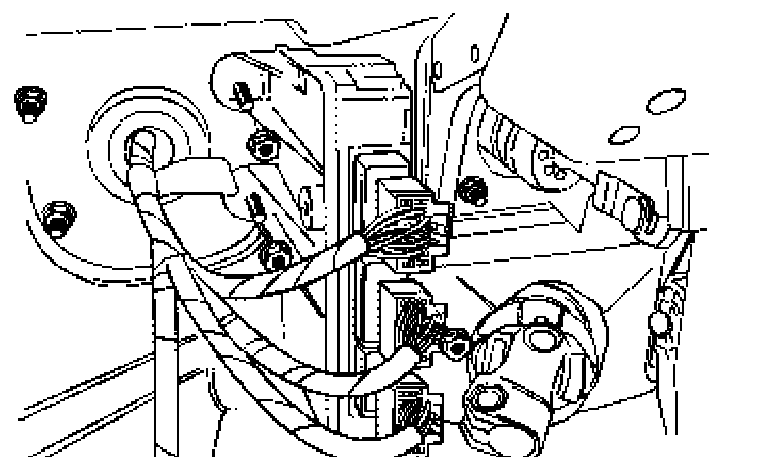

Transaxle Control Module (TCM) Removal
1. Disconnect the negative battery cable.
2. Disconnect the wiring connectors.





3. Remove the Transaxle Control Module (TCM) and nuts.

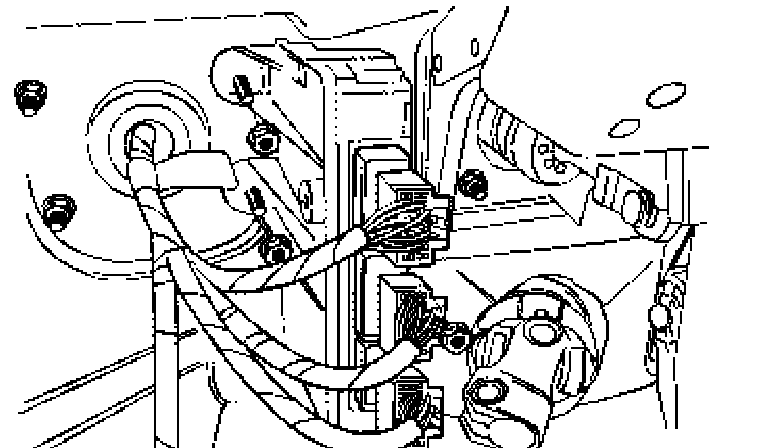

Transaxle Control Module (TCM) Installation
1. Install the TCM and nuts.
Tighten: Tighten the TCM mounting nuts to 23 Nm (17 ft. lbs.).
2. Connect the wiring connectors.





3. Connect the negative battery cable.
