Cruise Control Servo: Service and Repair

CRUISE CONTROL ACTUATOR ASSEMBLY (WITH CONTROL MODULE) REMOVAL AND INSTALLATION

CAUTION: Never disassemble cruise control actuator assembly (with control module). Disassembly will spoil its original function.

REMOVAL
1. Disconnect negative cable ( ) at battery.

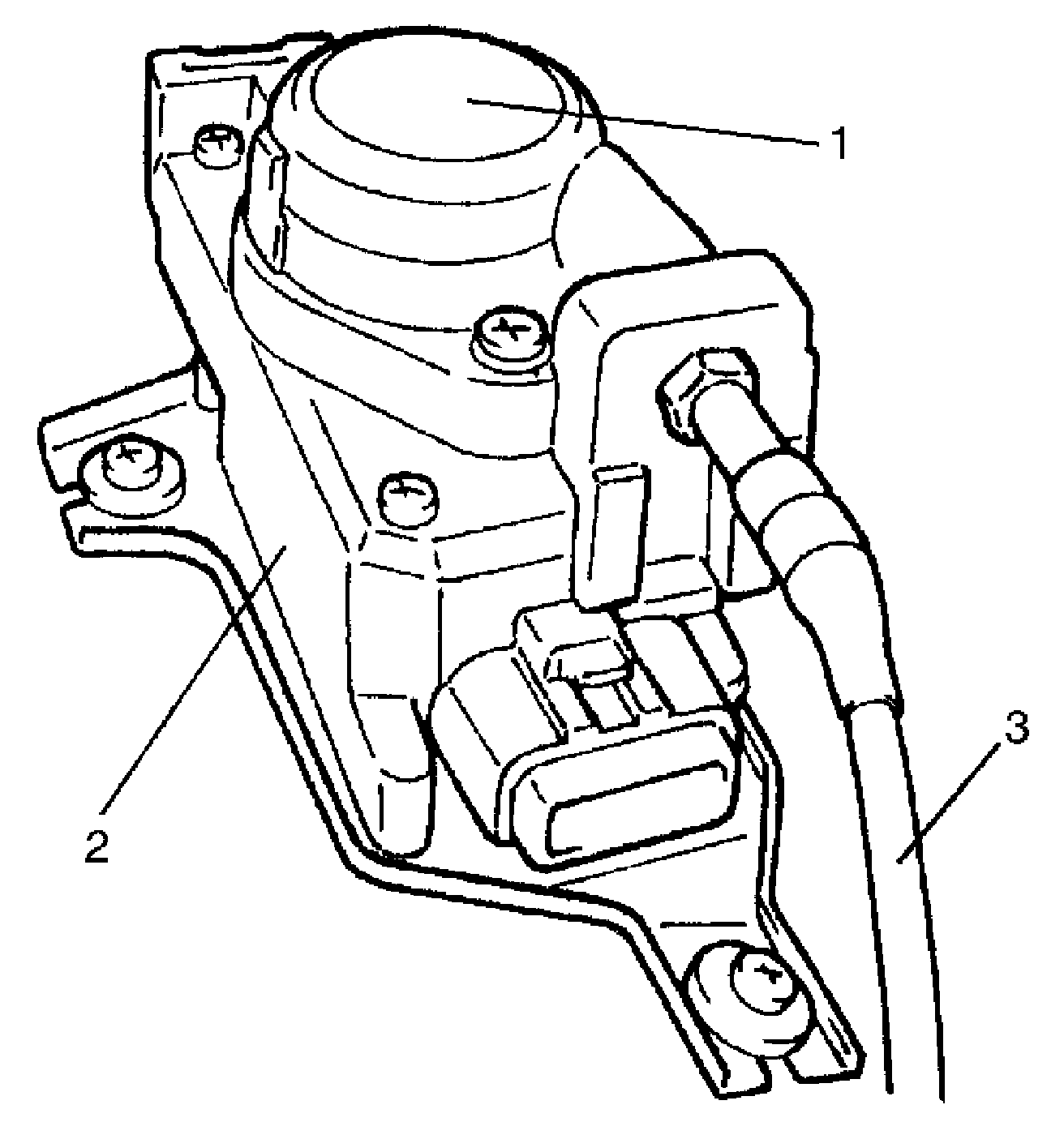

2. Disconnect connector from cruise control actuator assembly (with control module) (2).
3. Remove actuator cap (1) from cruise control actuator assembly (with control module) (2).
4. Disconnect cruise cable (3) from cruise control actuator assembly (with control module) (2).




5. Remove cruise control actuator assembly (with control module) (2) from vehicle.

INSTALLATION
Reference: Cruise Control Actuator Assembly (with Control Module) Inspection

Install cruise control actuator assembly (with control module) by reversing removal procedure, nothing the following point.
- Adjust cruise control cable play to specification referring to Cruise Control Cable Play Inspection and Adjustment.
