Electronic Control System Components Location

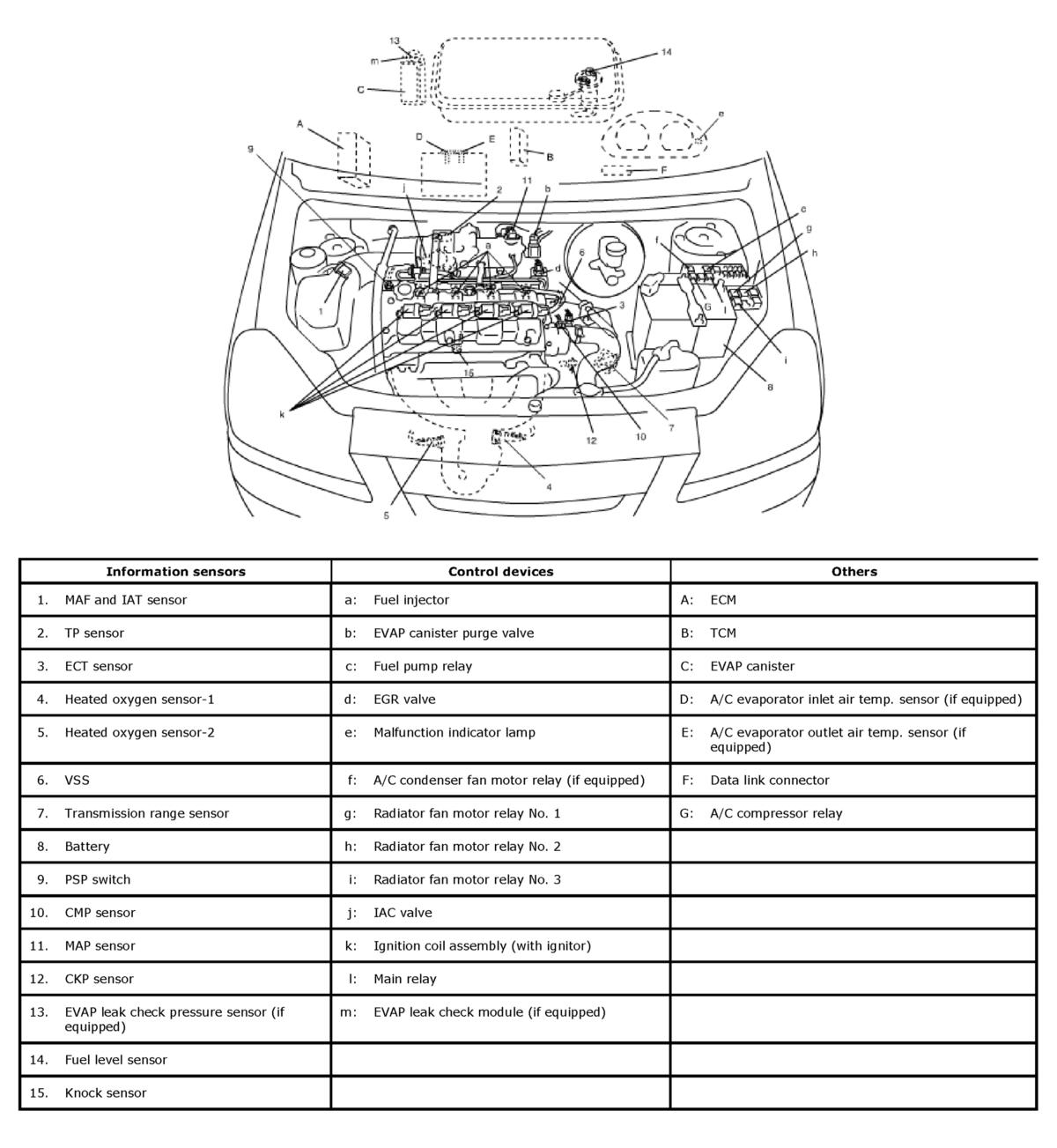

Fig 1: Identifying Electronic Control System Components Location
G04589413Courtesy of SUZUKI OF AMERICA CORP.
