Relay Box: Locations

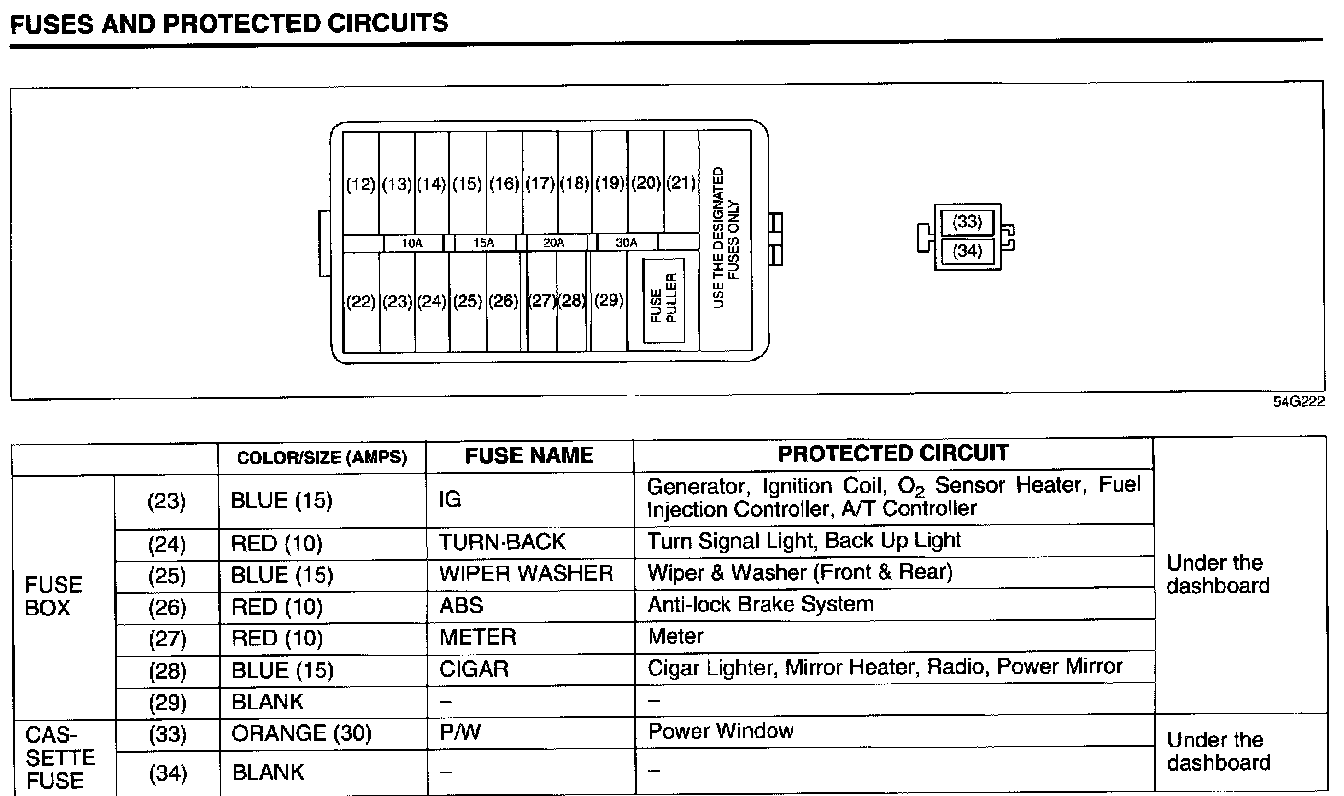

Under Dash Board:

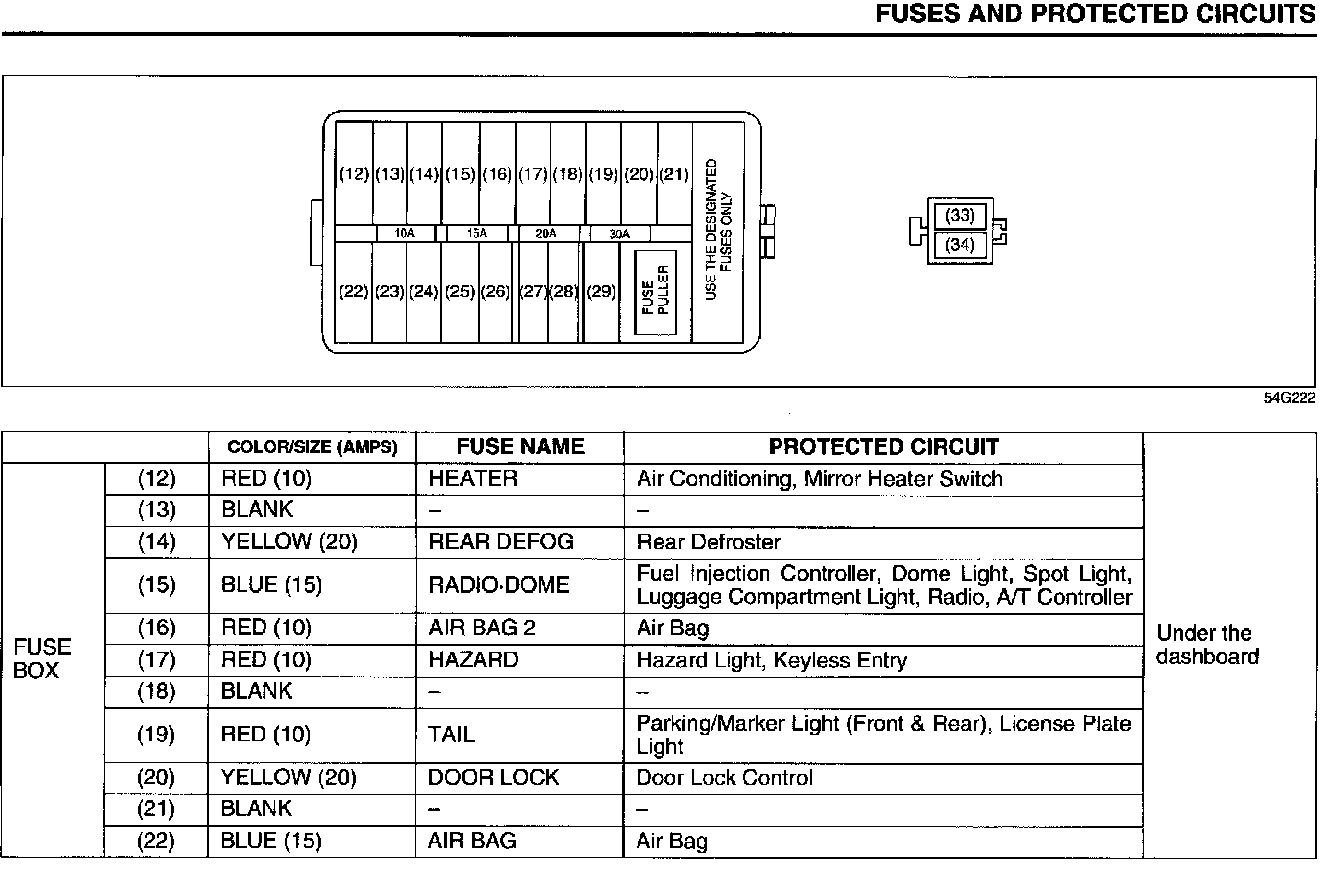

Under Dash Board:




Under Dash Board:




Under Dash Board Fuse Block

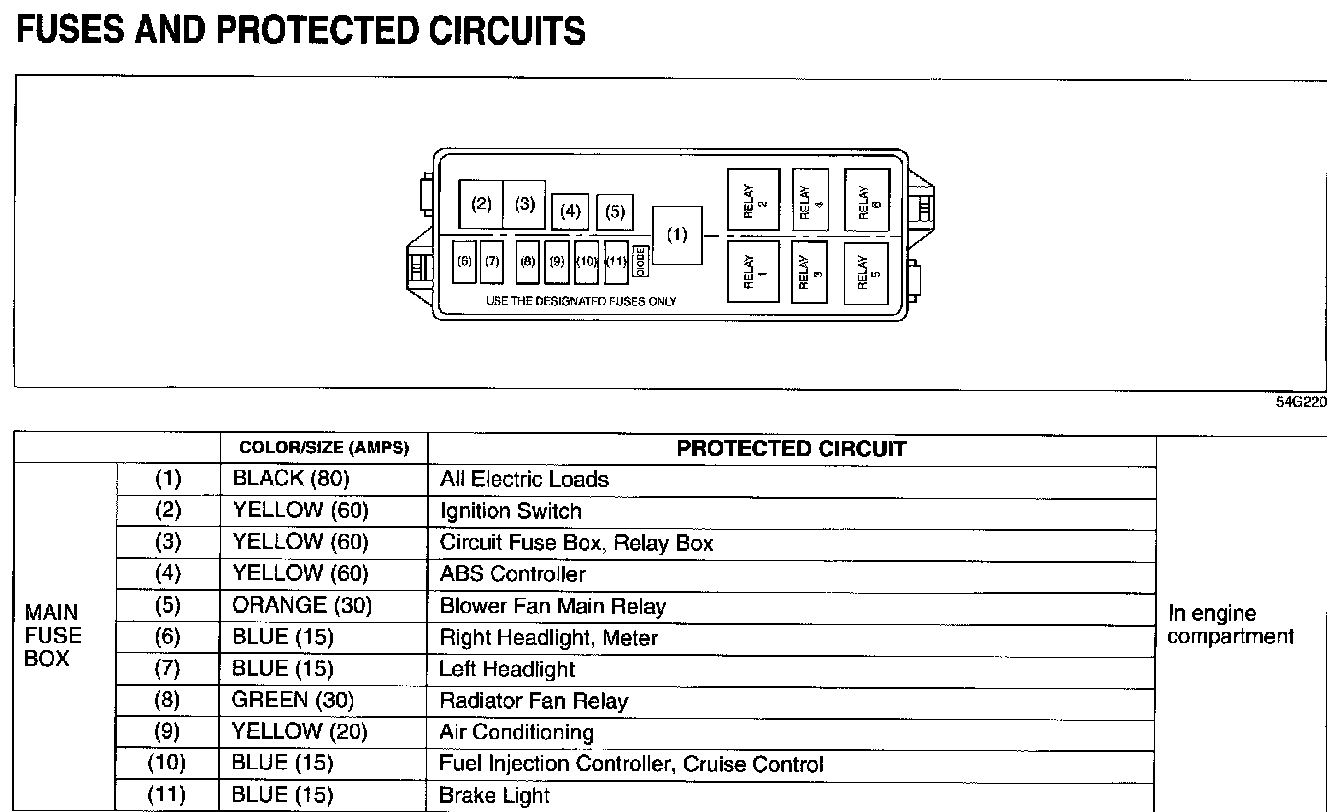

Engine Compartment:




Engine Compartment 1 Of 3:




Engine Compartment:




Engine Compartment Fuse Block
