Electronic Control System Location

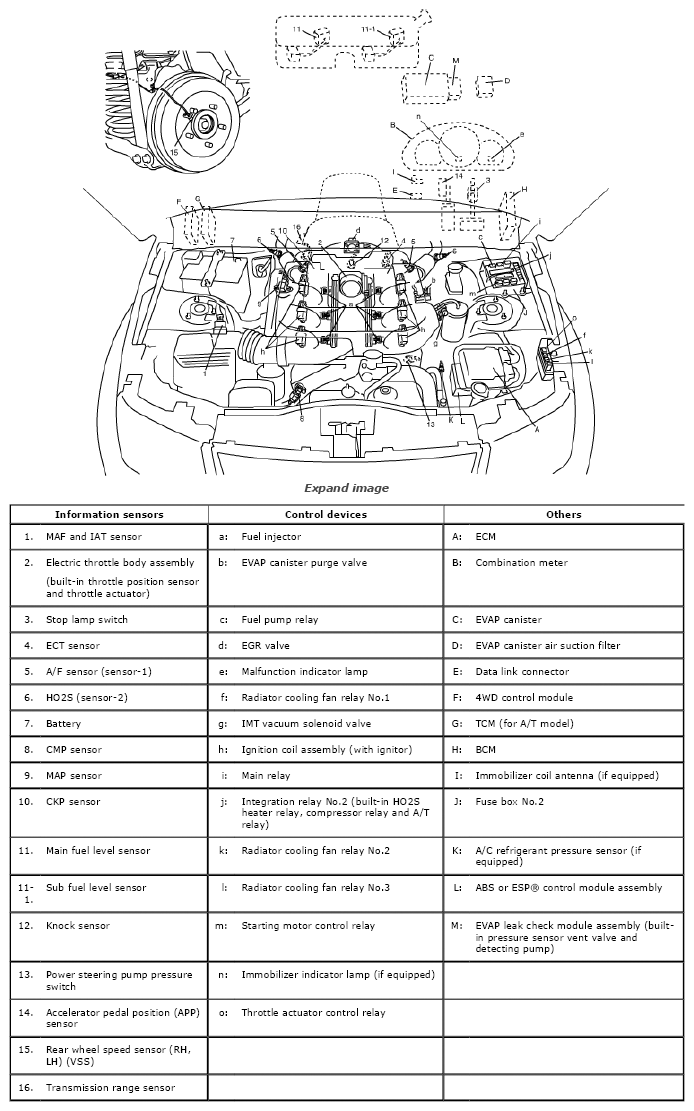

Fig 1: Identifying Electronic Control System Location
G04807058Courtesy of SUZUKI OF AMERICA CORP.
