Electronic Control System Wiring Circuit Diagram: Notes

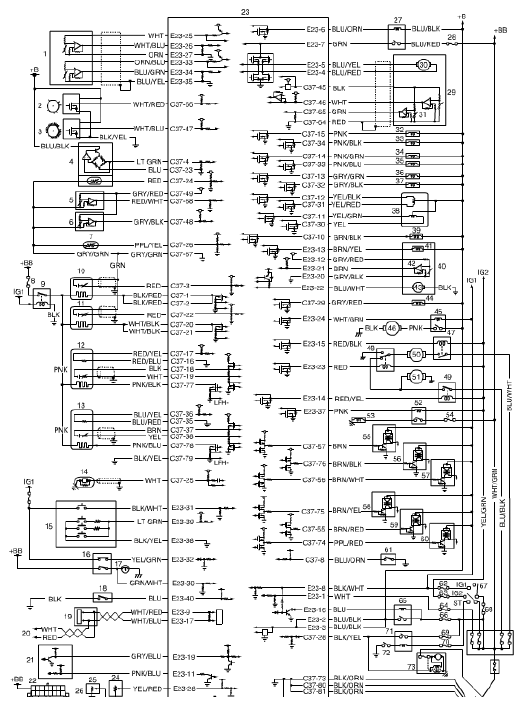

Fig 1: Electronic Control System Wiring Circuit Diagram
G04807060Courtesy of SUZUKI OF AMERICA CORP.

Terminal arrangement of ECM (PCM) connector (Viewed from harness side)

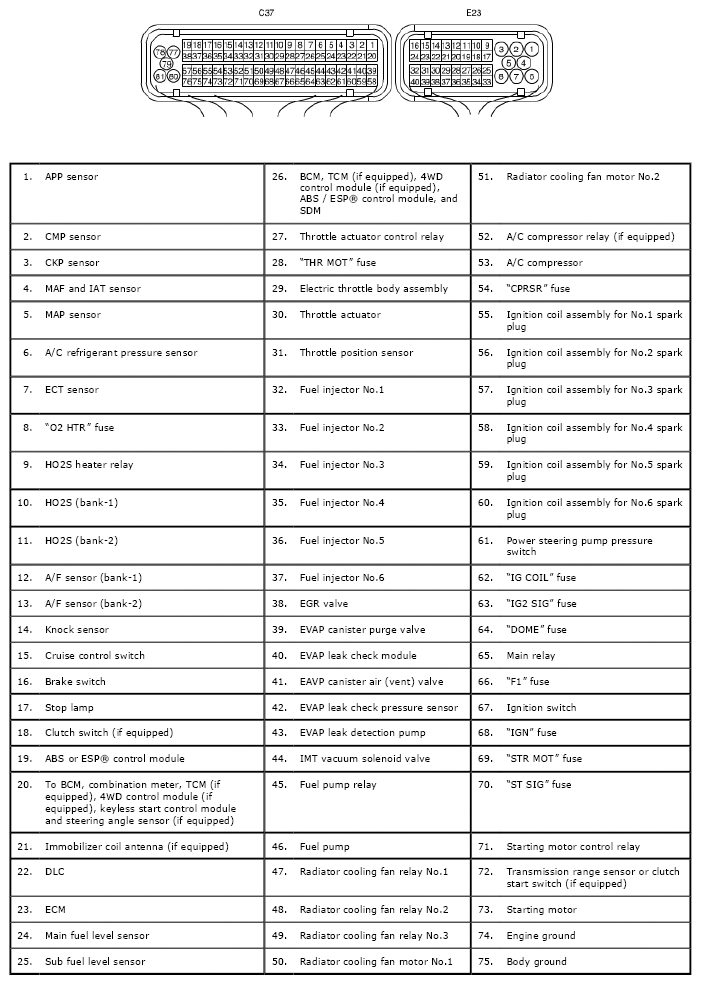

Fig 2: Identifying Terminal Arrangement Of ECM (PCM) Connector (Viewed From Harness Side)
G04807061Courtesy of SUZUKI OF AMERICA CORP.
