Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

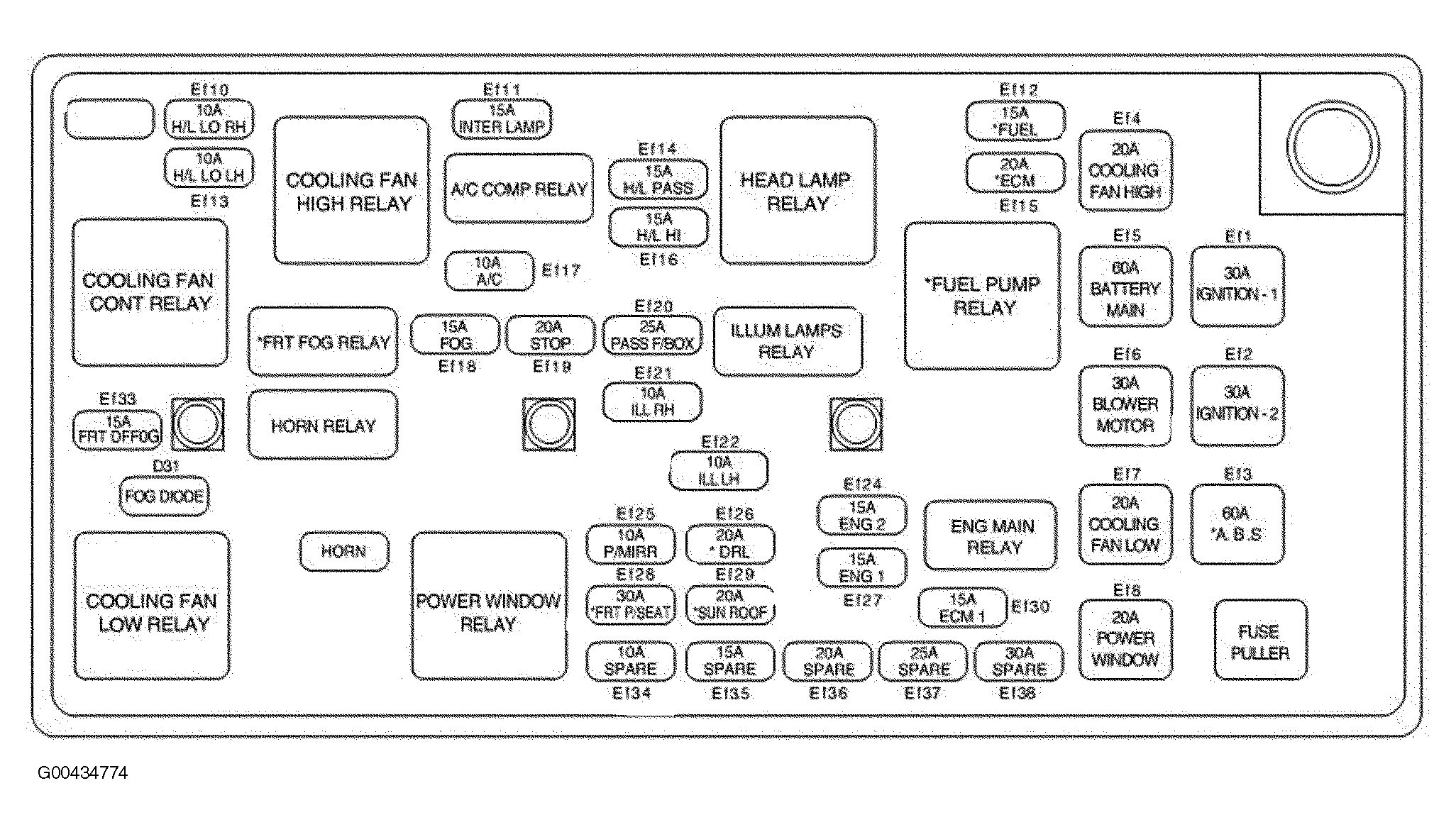

Fig 1: Engine Room Fuse Block

G00434774

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Dash

G00434775

Courtesy of SUZUKI OF AMERICA CORP.

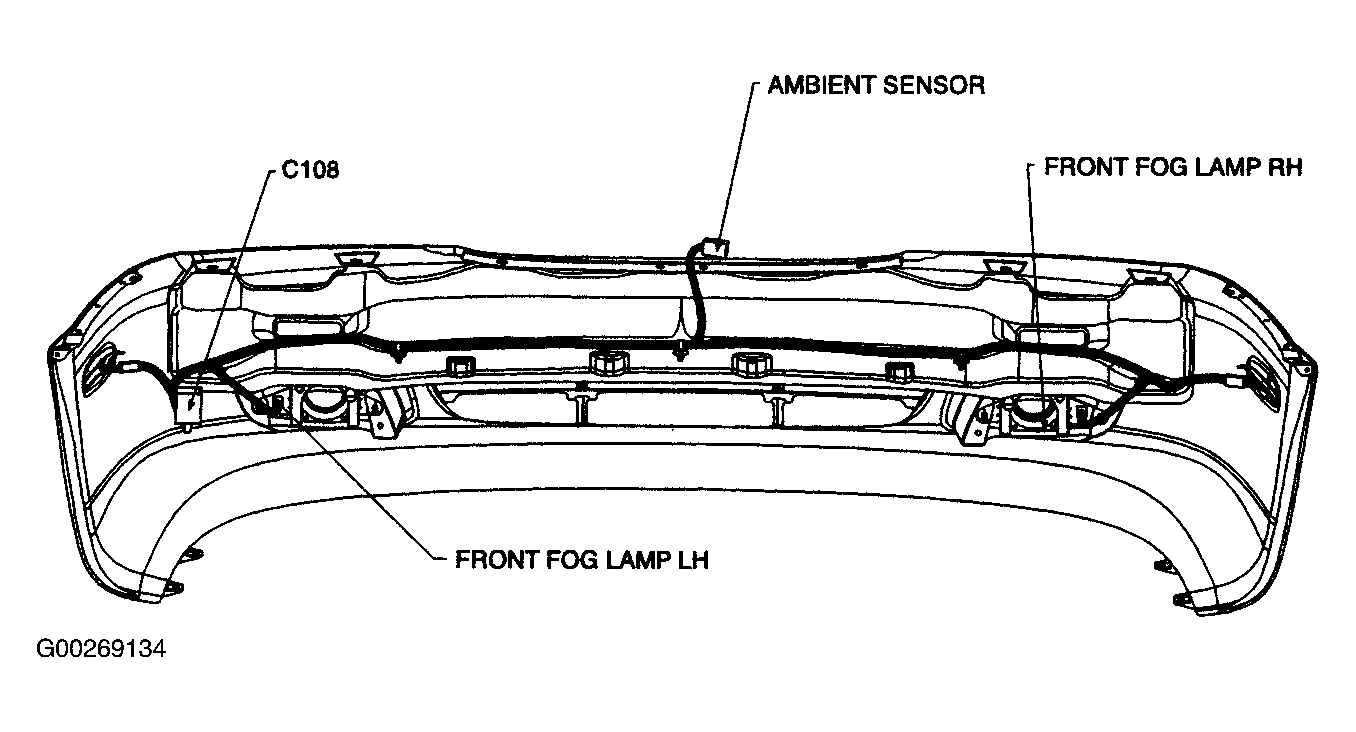

Fig 3: Front Bumper

G00269134

Courtesy of SUZUKI OF AMERICA CORP.

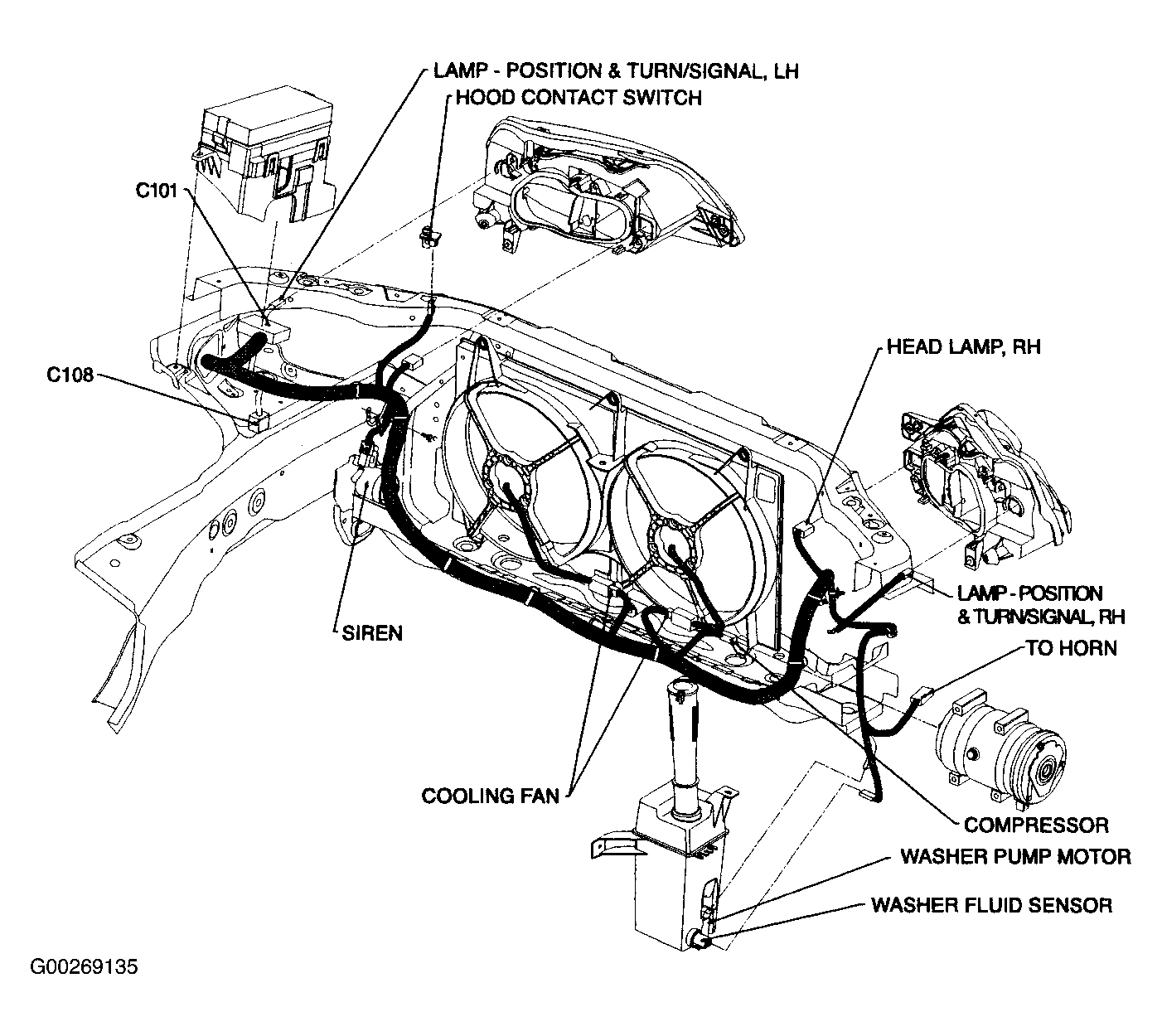

Fig 4: Front Of Engine Compartment

G00269135

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Left Front Of Engine Compartment

G00269136

Courtesy of SUZUKI OF AMERICA CORP.

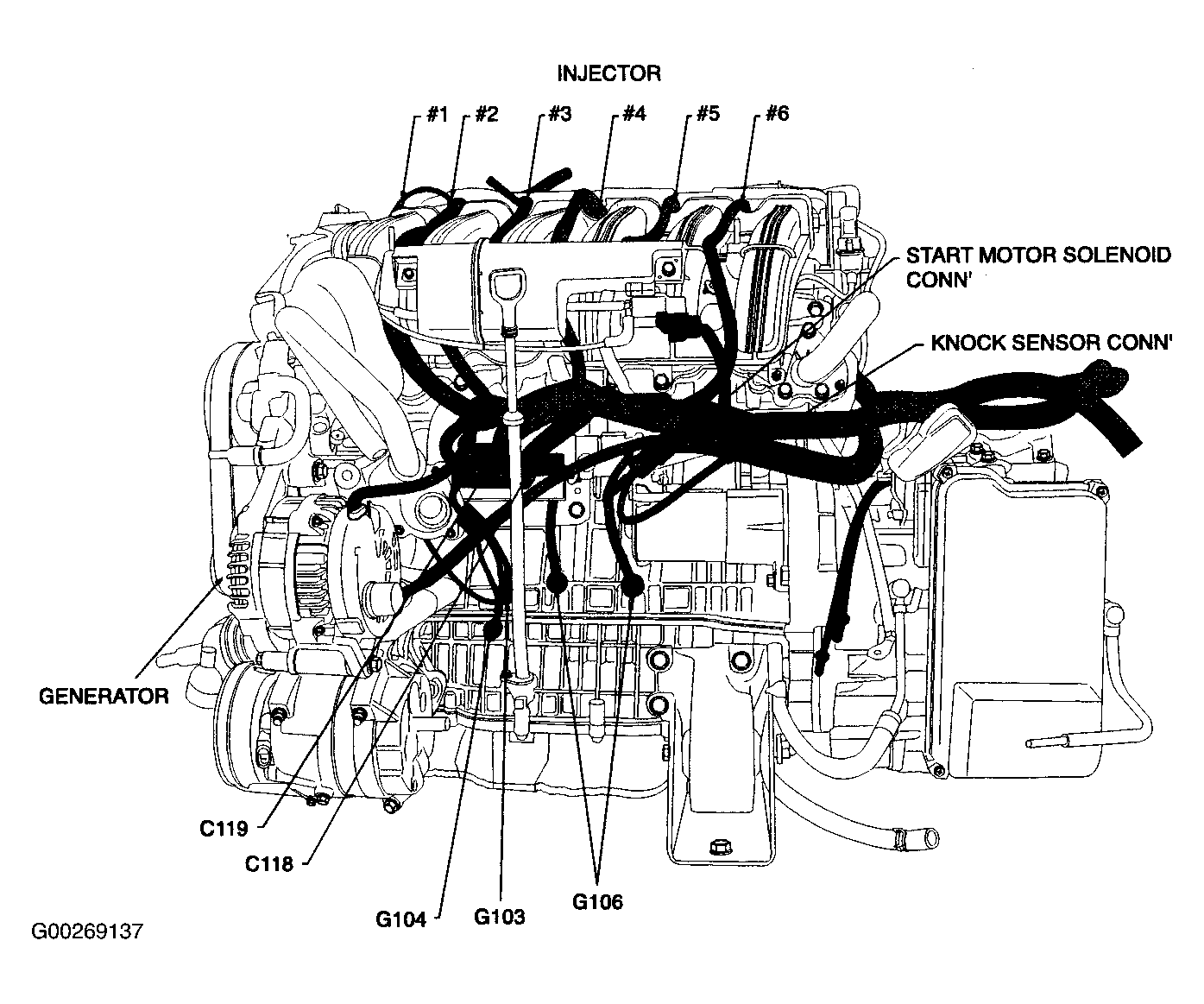

Fig 6: Front Of Engine

G00269137

Courtesy of SUZUKI OF AMERICA CORP.

Fig 7: Rear Of Engine

G00434776

Courtesy of SUZUKI OF AMERICA CORP.

Fig 8: Left Side Of Dash

G00269139

Courtesy of SUZUKI OF AMERICA CORP.

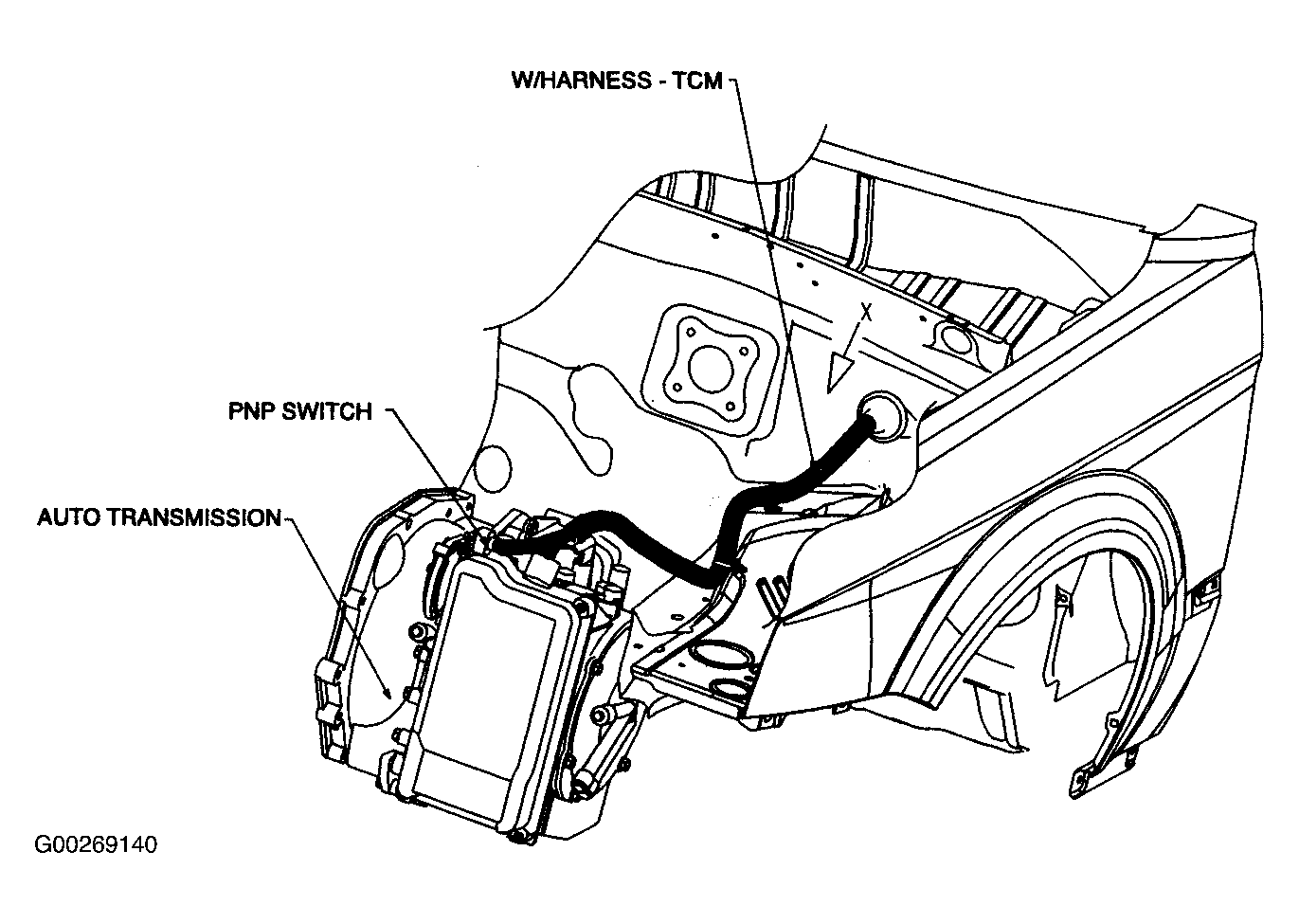

Fig 9: Transmission

G00269140

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Air Bag Harness

G00269141

Courtesy of SUZUKI OF AMERICA CORP.

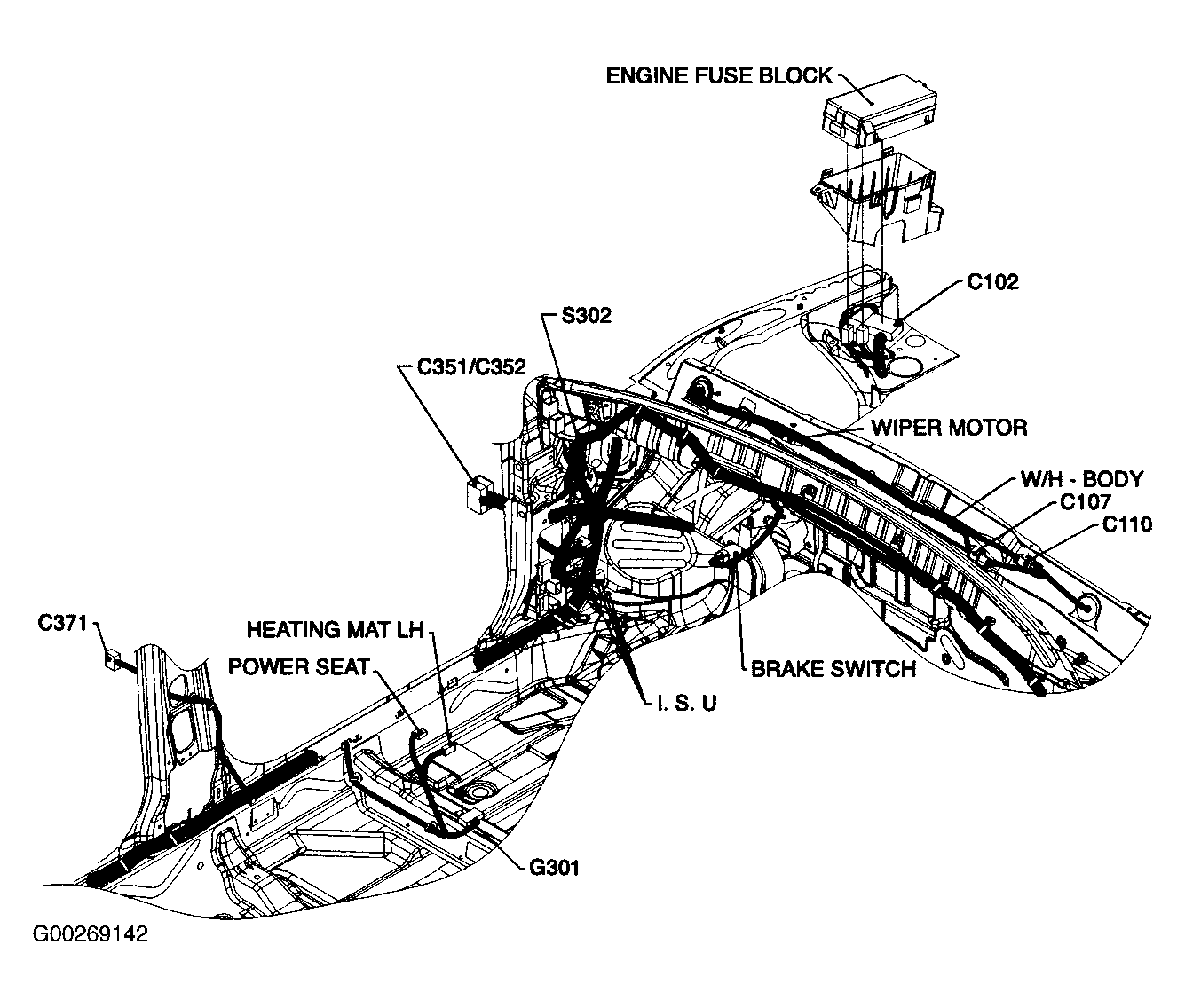

Fig 11: Left Side Of Body

G00269142

Courtesy of SUZUKI OF AMERICA CORP.

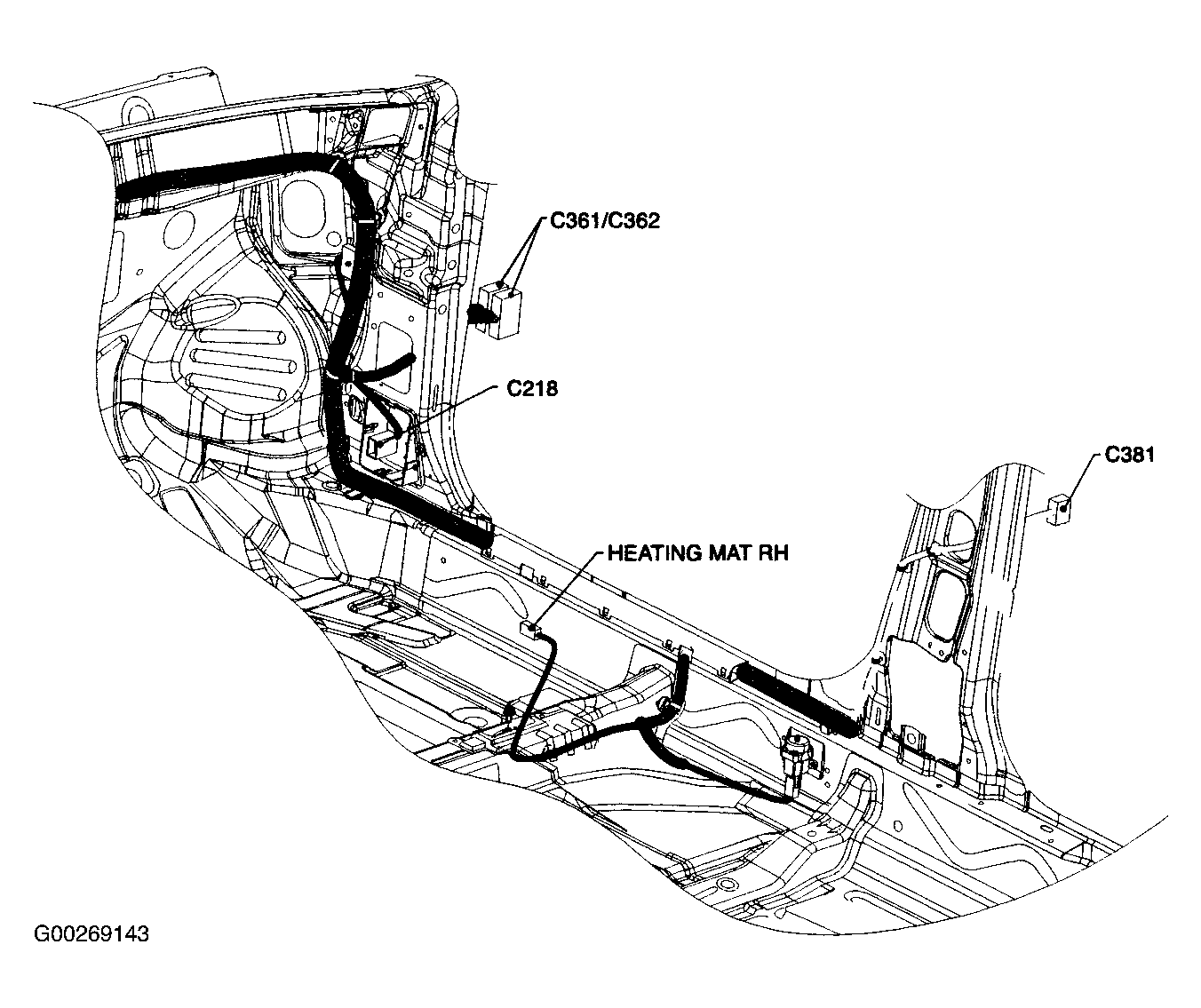

Fig 12: Right Side Of Body

G00269143

Courtesy of SUZUKI OF AMERICA CORP.

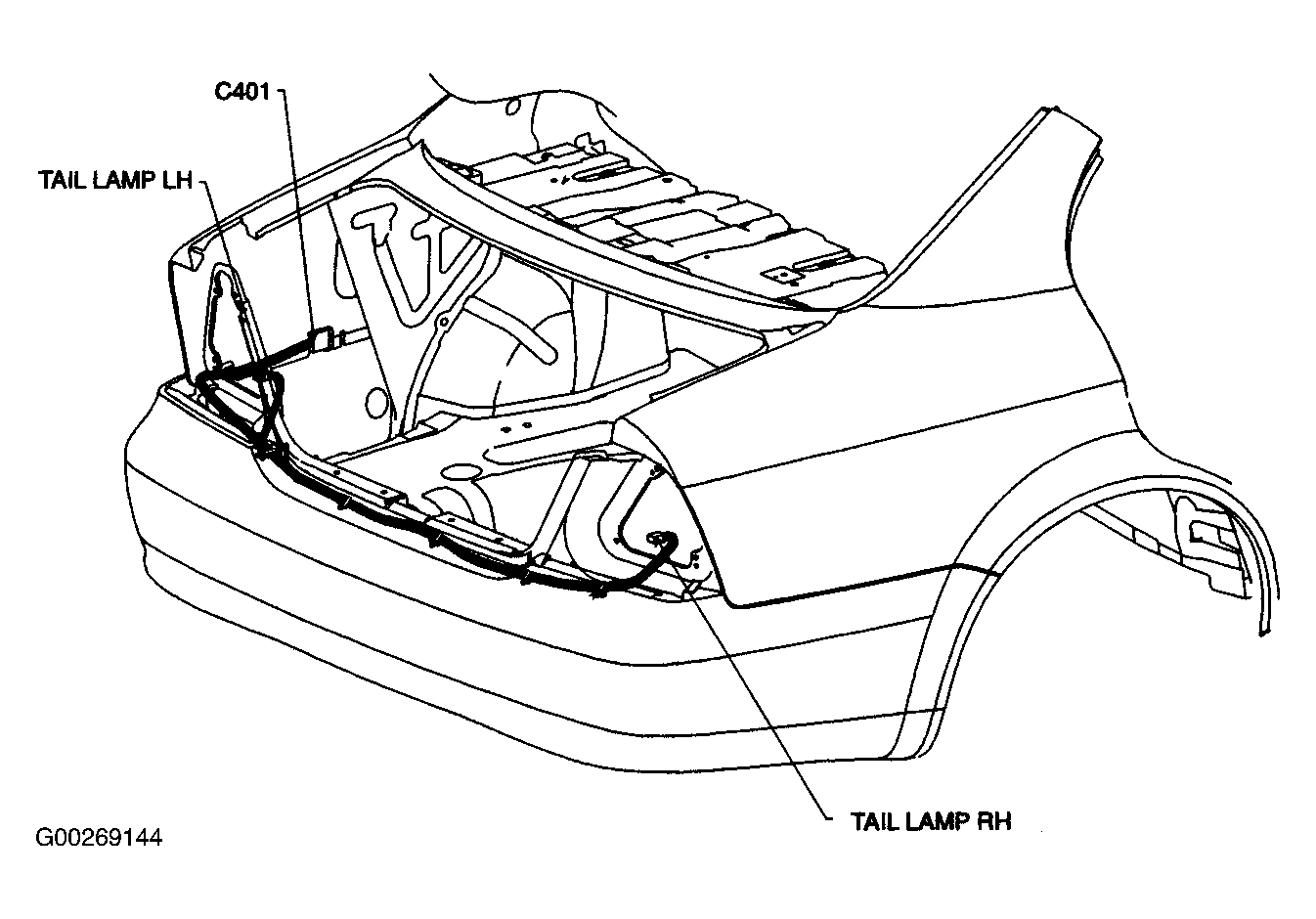

Fig 13: Rear Of Trunk

G00269144

Courtesy of SUZUKI OF AMERICA CORP.

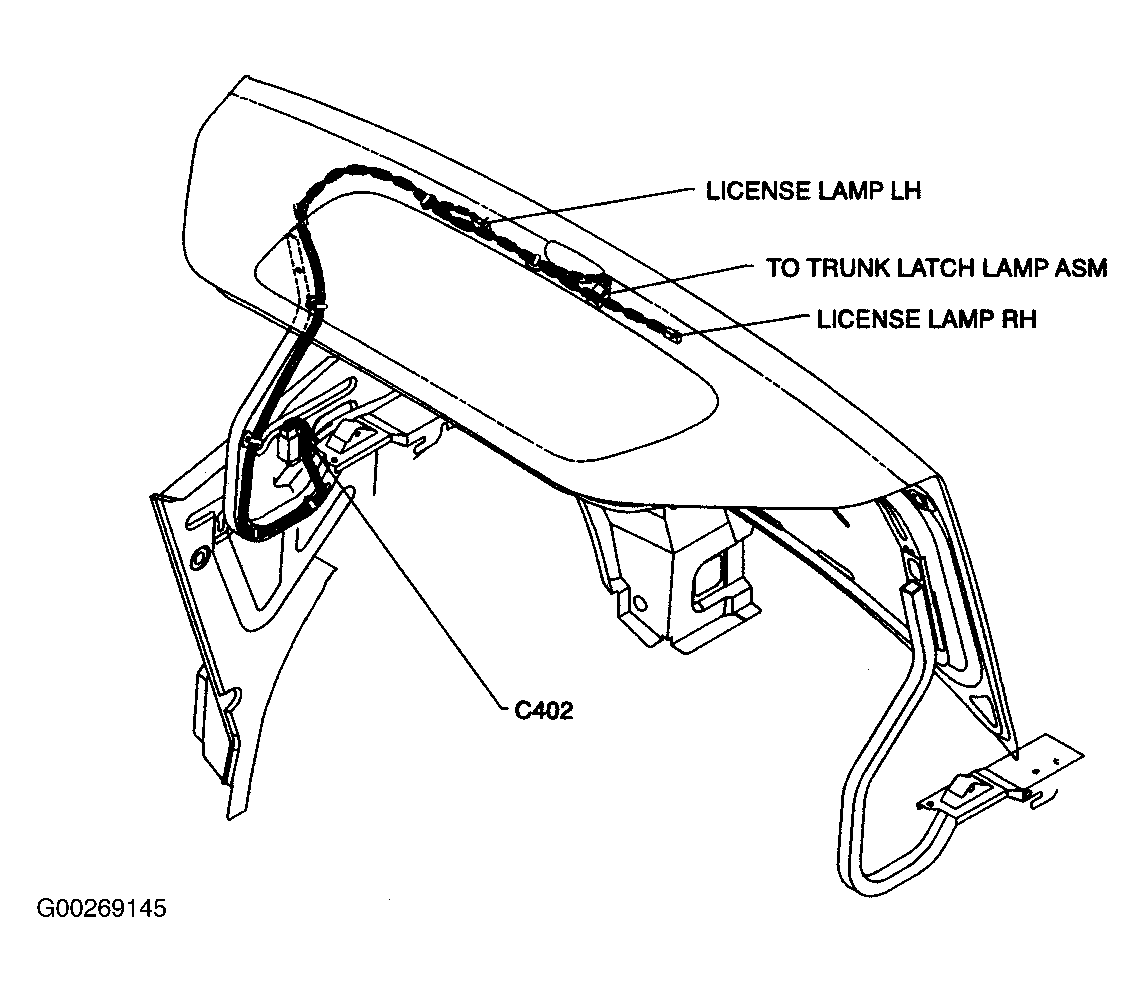

Fig 14: Trunk Lid

G00269145

Courtesy of SUZUKI OF AMERICA CORP.

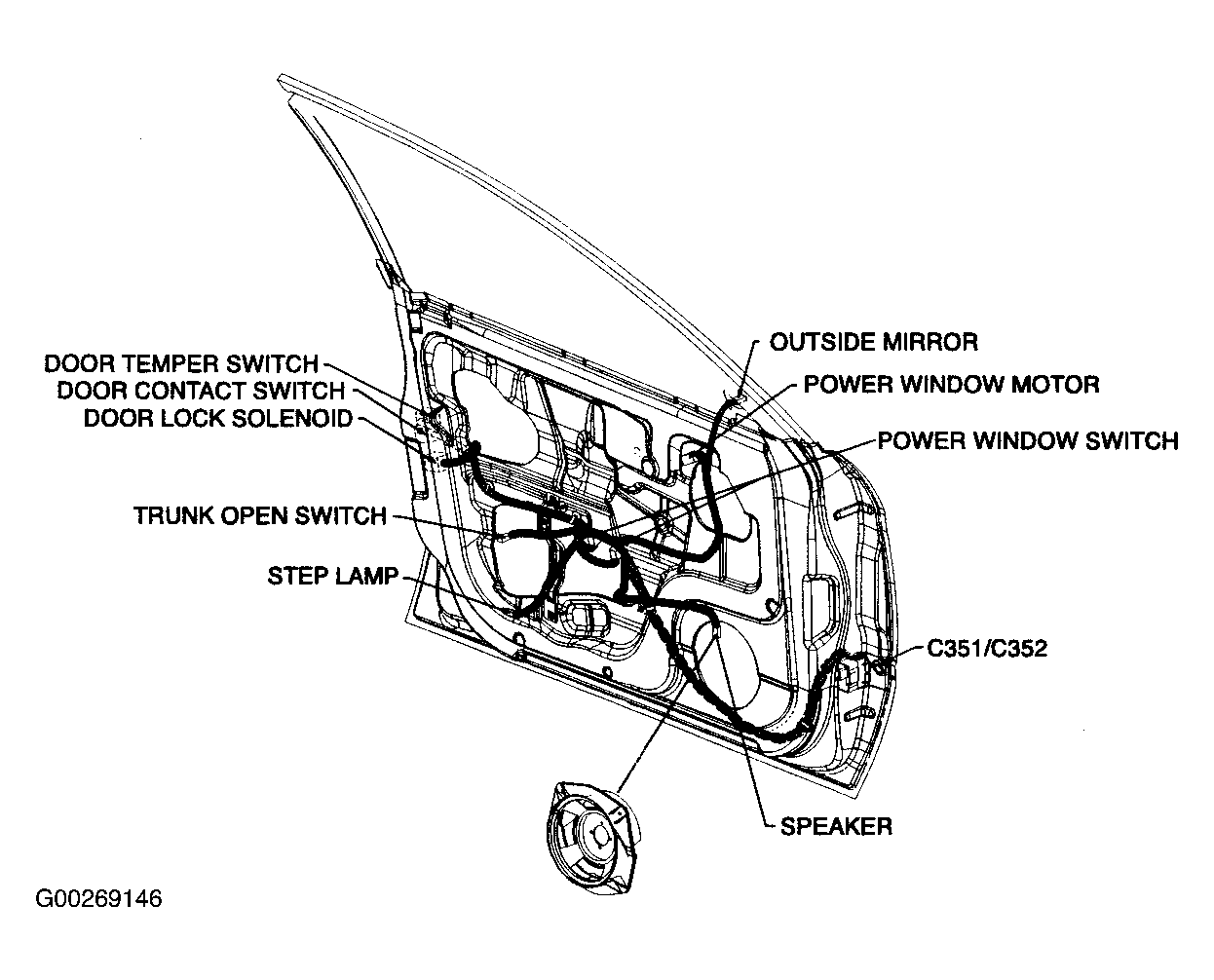

Fig 15: Left Front Door

G00269146

Courtesy of SUZUKI OF AMERICA CORP.

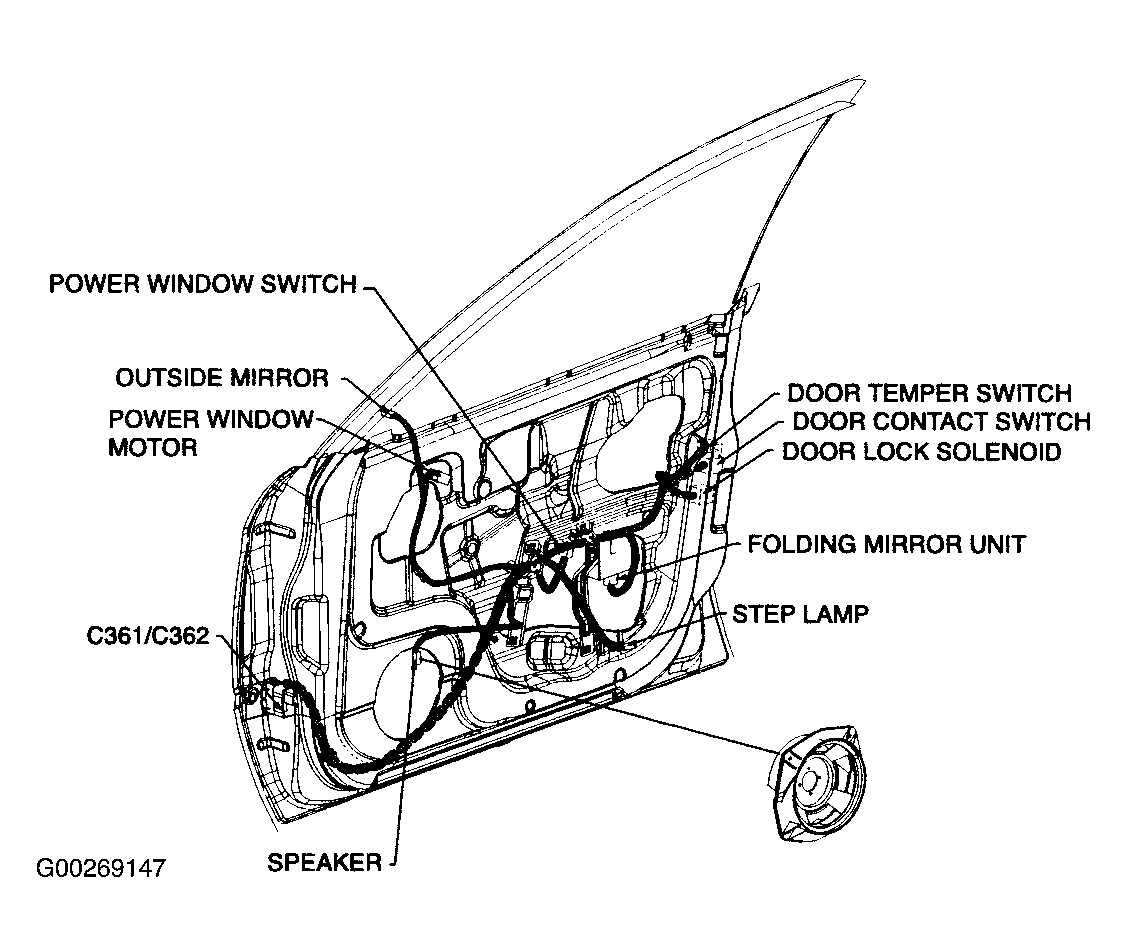

Fig 16: Right Front Door

G00269147

Courtesy of SUZUKI OF AMERICA CORP.

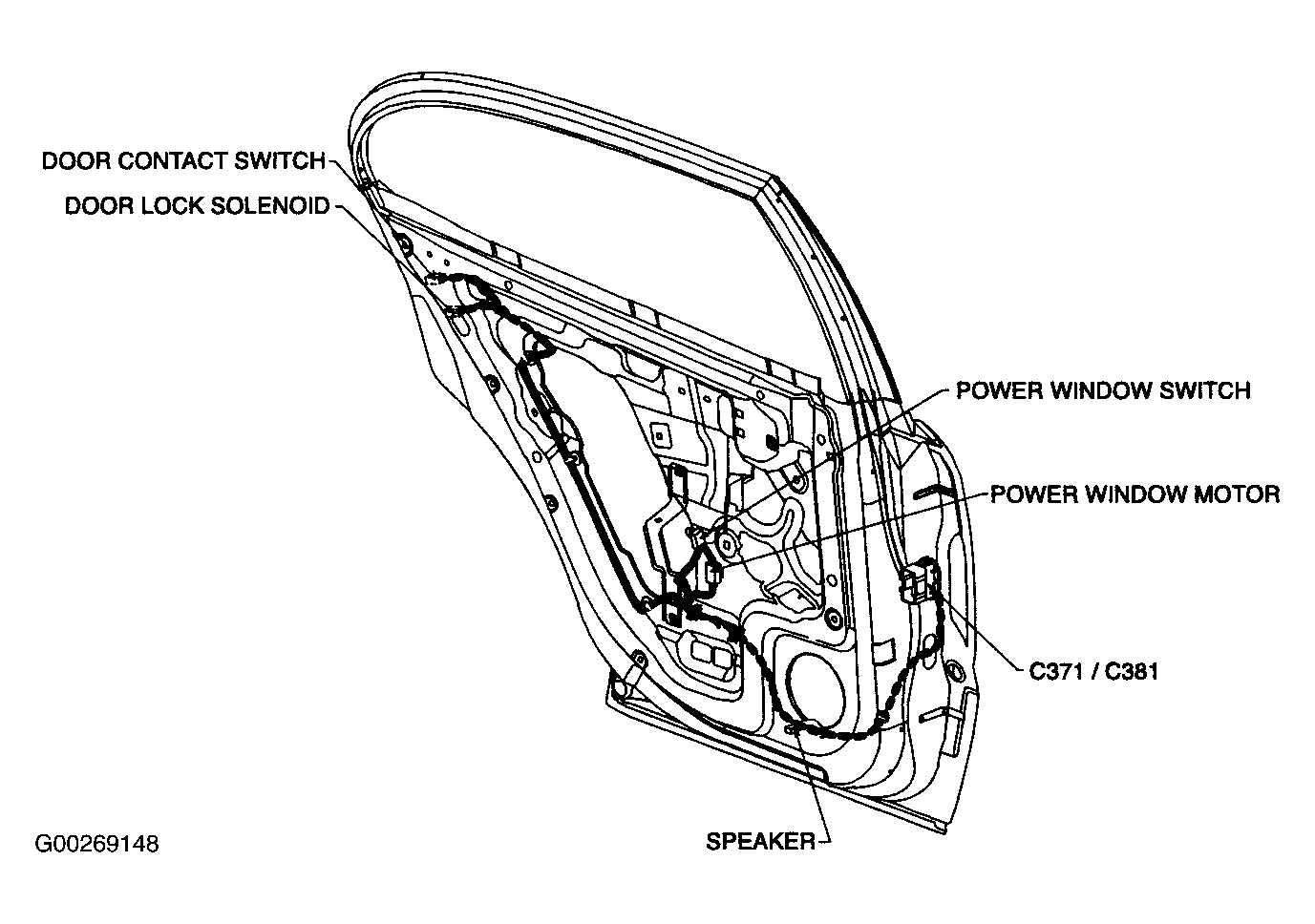

Fig 17: Left & Right Rear Door

G00269148

Courtesy of SUZUKI OF AMERICA CORP.

Fig 18: Roof

G00269150

Courtesy of SUZUKI OF AMERICA CORP.

Fig 19: Left Rear Corner Of Engine Compartment

G00269152

Courtesy of SUZUKI OF AMERICA CORP.

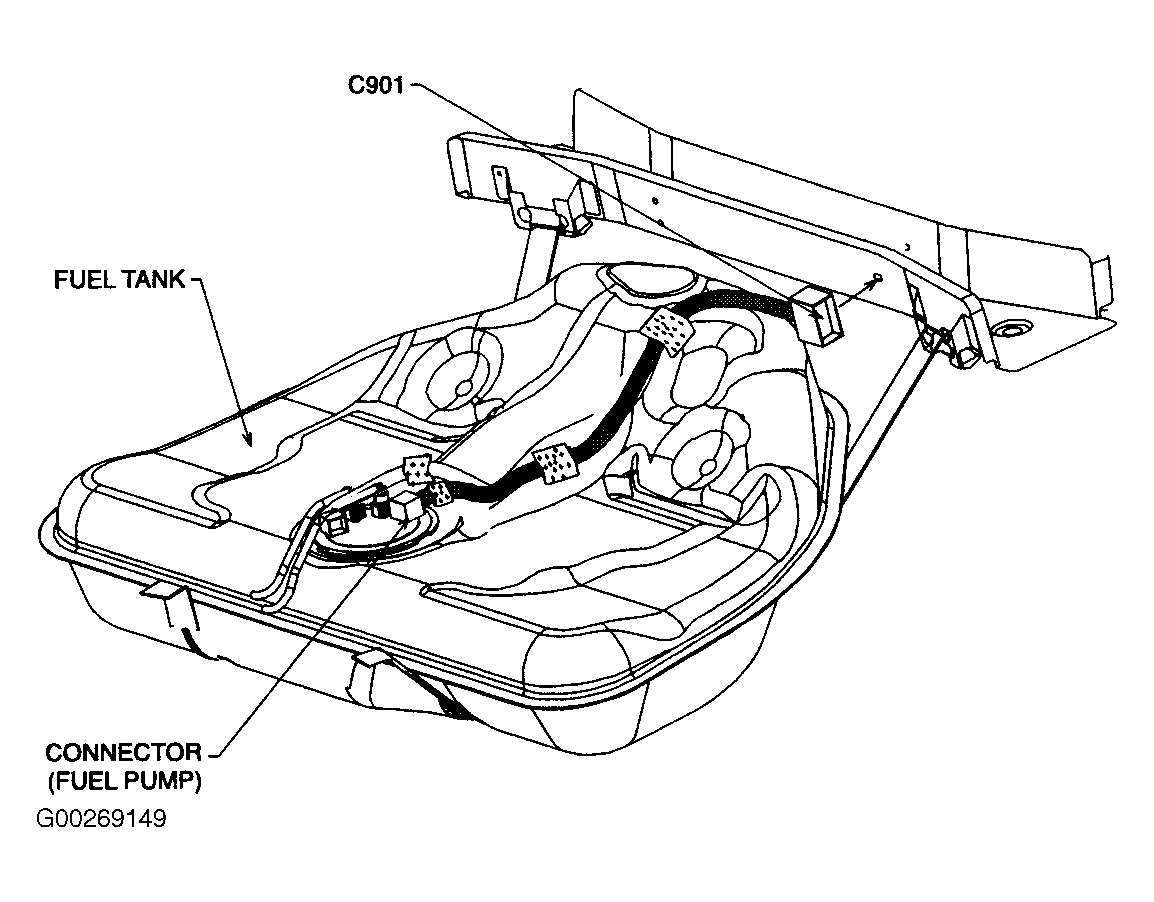

Fig 20: Fuel Tank

G00269149

Courtesy of SUZUKI OF AMERICA CORP.

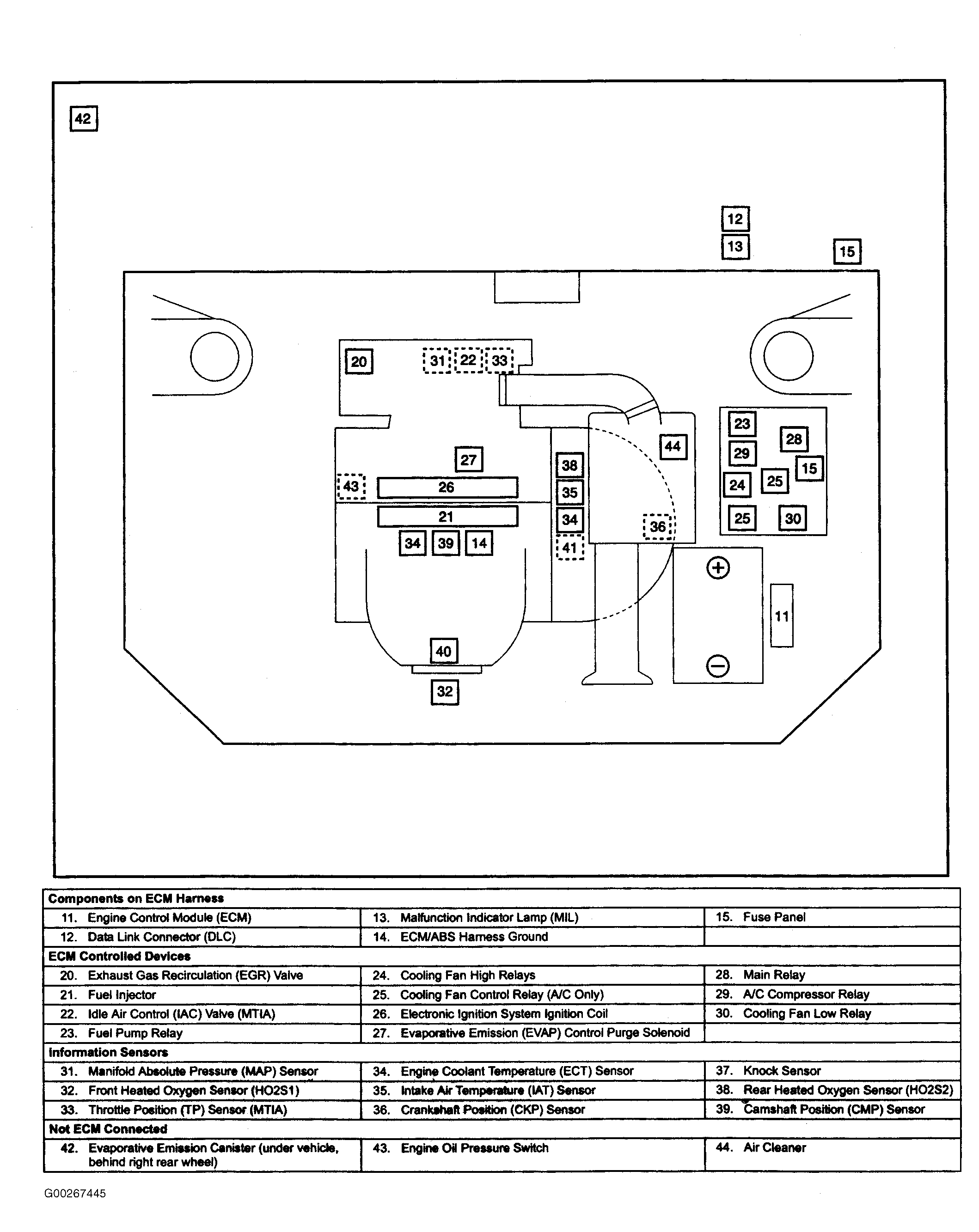

Fig 21: Engine Compartment

G00267445

Courtesy of SUZUKI OF AMERICA CORP.

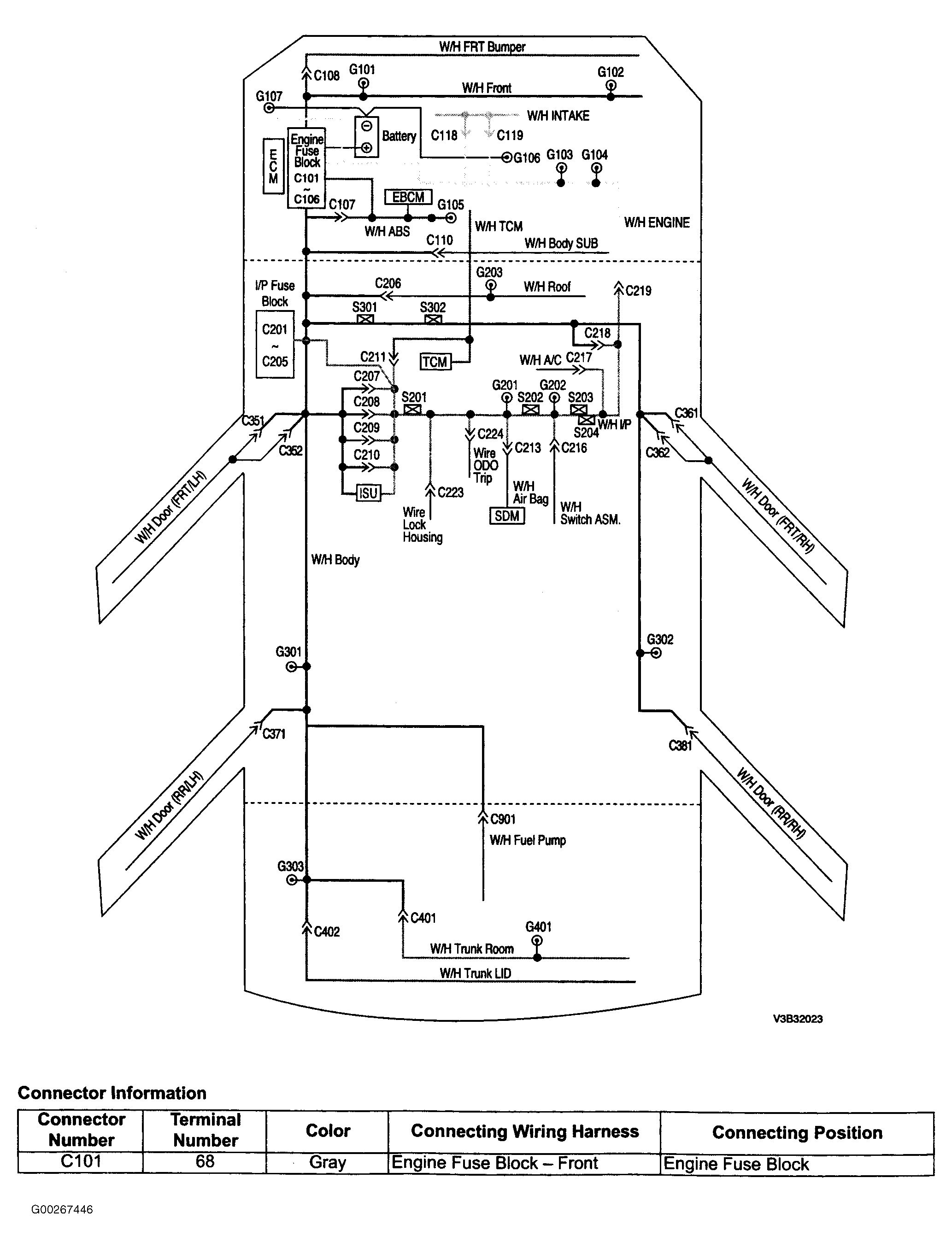

Fig 22: Vehicle Overview

G00267446

Courtesy of SUZUKI OF AMERICA CORP.
