DTC P0564: Cruise Control Multi-Function Switch Circuit: Notes

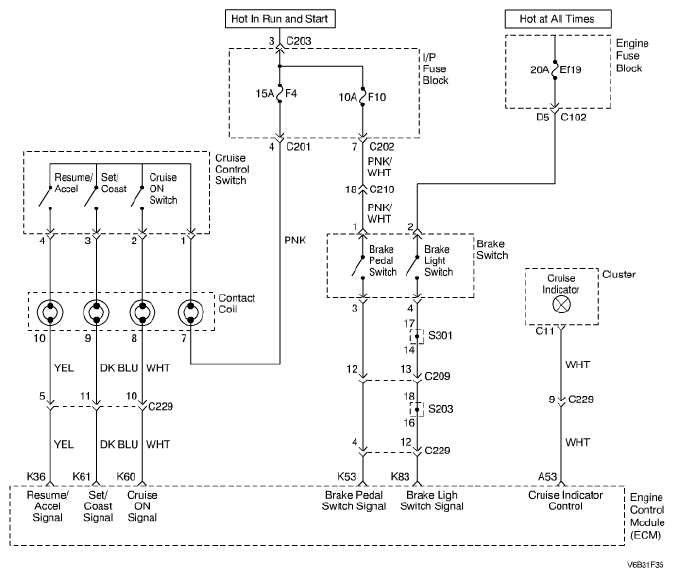

Fig 1: Cruise Control Multi-Function Switch Circuit - Wiring Diagram
G04718747Courtesy of SUZUKI OF AMERICA CORP.
