DTC P1629: Wrong Code Received from Immobilizer Control Unit: Notes

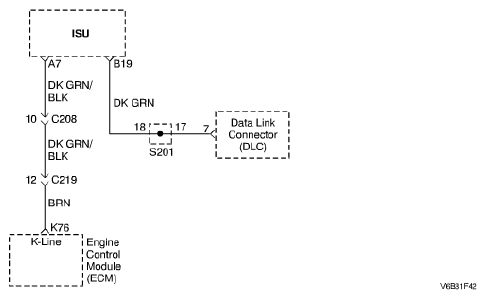

Fig 1: Wrong Code Received From Immobilizer Control Unit - Wiring Diagram
G04718762Courtesy of SUZUKI OF AMERICA CORP.
