DTC U0073: Control Module Communication Bus OFF: Notes

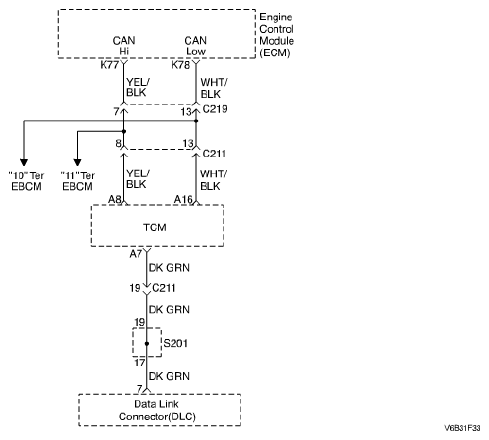

Fig 1: Control Module Communication Bus OFF - Wiring Diagram
G04718780Courtesy of SUZUKI OF AMERICA CORP.
