4WD Control System Components
WARNING:
This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

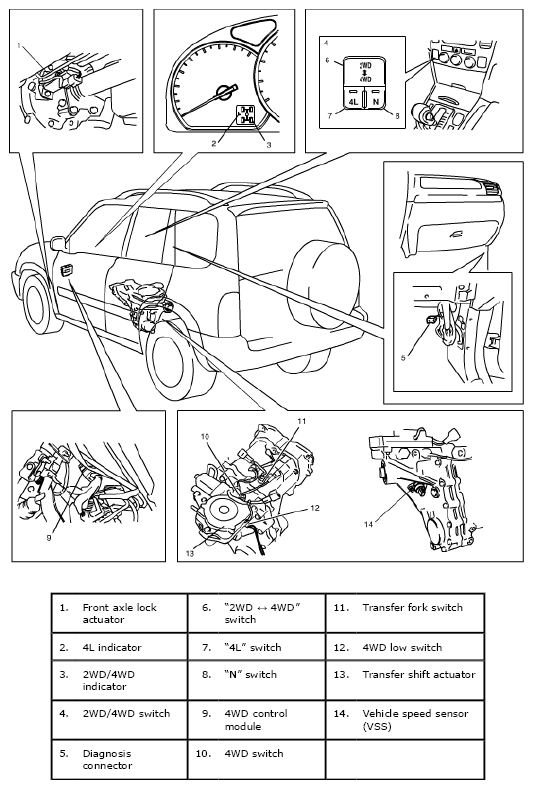

Fig 1: Identifying 4WD Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
