DTC P0606: Transaxle Control Module Processor Fault: Notes

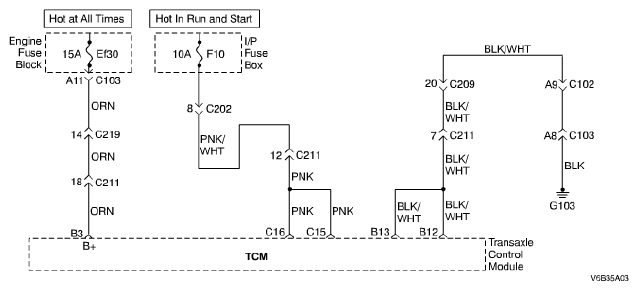

Fig 1: Transaxle Control Module Processor Fault - Circuit Diagram
G04719648Courtesy of SUZUKI OF AMERICA CORP.
