Transaxle Components Description

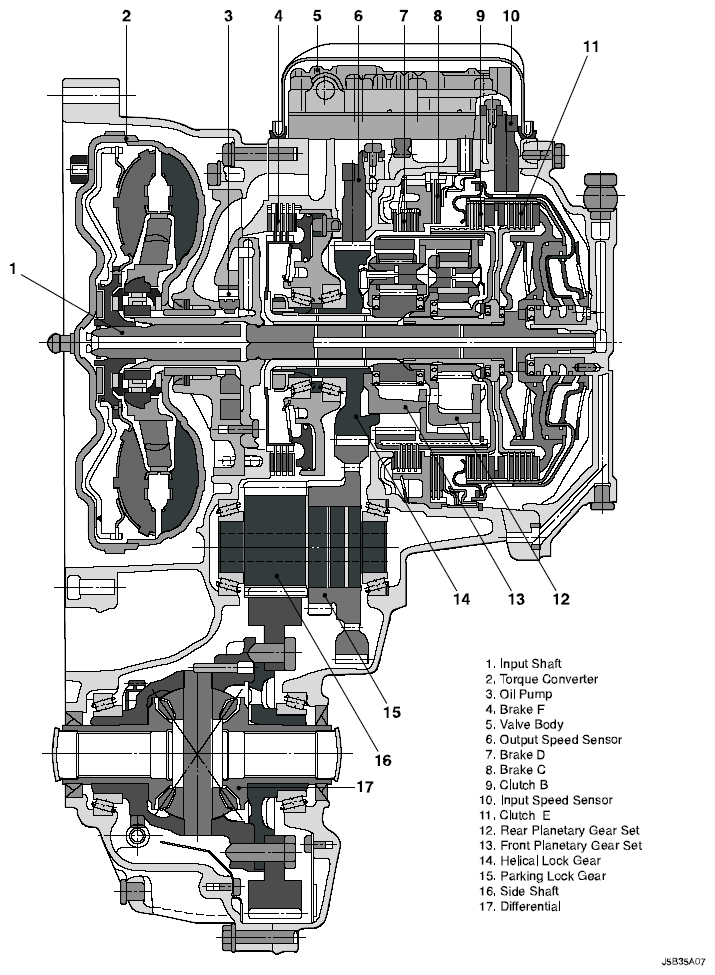

Fig 1: Identifying Transaxle Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
