Shift Control Cable Installation

Install the shift control cable into the fire wall of the vehicle.
Install the shift control cable onto the transaxle mount.

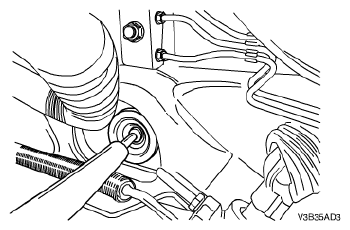

Fig 1: Identifying Shift Control Cable & Transaxle Mount
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable onto the shift control assembly.
Tighten the nut on the cable bracket.
Install the shift control cable adjuster pinch nut.
Tighten:

Tighten the nut to 8 N.m (71 lb-in.).

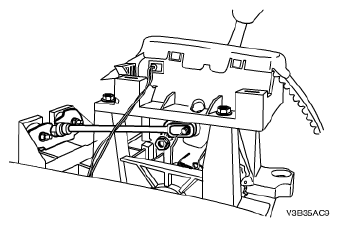

Fig 2: Identifying Shift Control Cable & Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the clip to the shift control cable at the transaxle mount connection.
Install the clip to the select lever connection on the transaxle case.
Adjust the shift control cable. Refer to Shift Control Cable Adjustment .
Install the air filter housing assembly and bolts.
Tighten:

Tighten the bolts to 10 N.m (89 lb-in.).
Connect the negative battery cable.

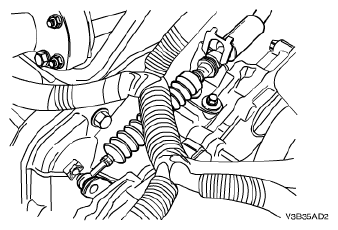

Fig 3: Identifying Shift Control Cable & Clip

Courtesy of SUZUKI OF AMERICA CORP.
