Shift Control Lever Assembly Removal

Disconnect the negative battery cable.
Remove the floor console. Refer to FLOOR CONSOLE REMOVAL .
Disconnect the electrical switch connectors.

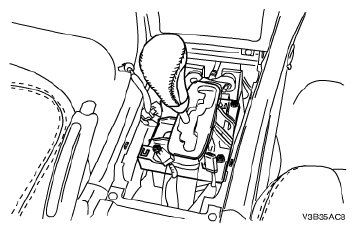

Fig 1: Identifying Electrical Switch Connectors
Courtesy of SUZUKI OF AMERICA CORP.
Remove the shift control cable adjuster pinch nut.
Loosen the nut from the shift control cable mounting bracket on the shift control assembly.
Remove the cable from the bracket.

Fig 2: Identifying Shift Control Cable & Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bolt holding the shift control assembly to the floor panel.
Remove the shift control assembly.

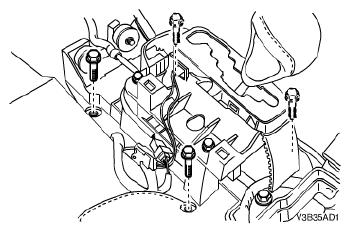

Fig 3: Identifying Shift Control Assembly & Bolts

Courtesy of SUZUKI OF AMERICA CORP.
