Torque Converter Components

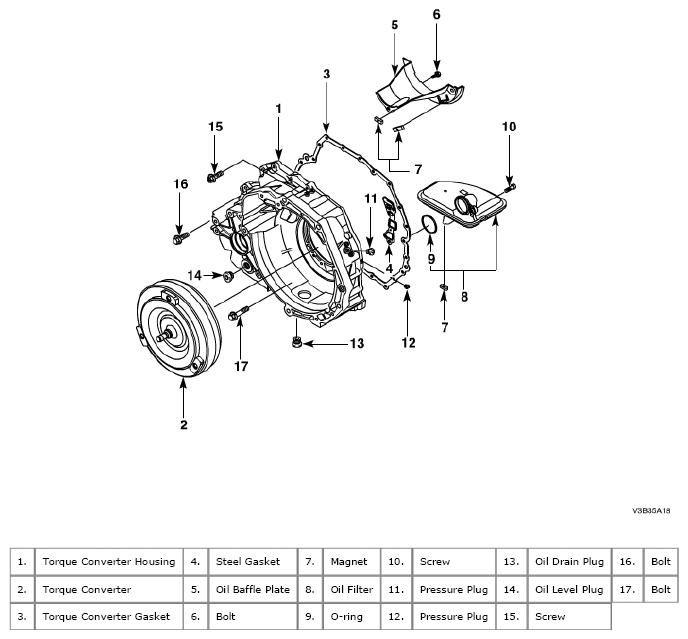

Fig 1: Identifying Torque Converter Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
