Transaxle Control Module (TCM) Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the wiring connectors.
  3. Remove the transaxle control module (TCM) and nuts.

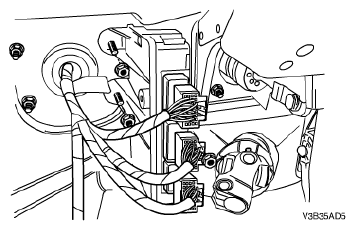

    Fig 1: Identifying Transaxle Control Module & Nuts
    G04719714Courtesy of SUZUKI OF AMERICA CORP.
