Transaxle Fluid Level Check

Tools Required:

DW260-070 Transaxle Fluid Plug Remover/Installer

Start the engine and allow the engine to idle for approximately 5 minutes, or if possible, drive the vehicle for a few kilometers (miles) to warm the transaxle fluid. Check the fluid level when the transaxle is over 30 °C (86 °F).

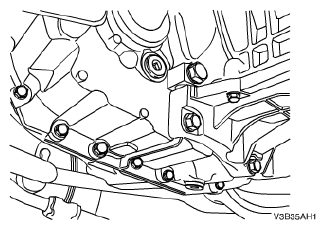

Fig 1: Identifying Transaxle Fluid Plug
Courtesy of SUZUKI OF AMERICA CORP.
Press the brake pedal and move the shift lever through the gear ranges, pausing a few seconds in each range. Return the shift lever to the park position. (Left-Hand Drive Shown, Right-Hand Drive Similar.)

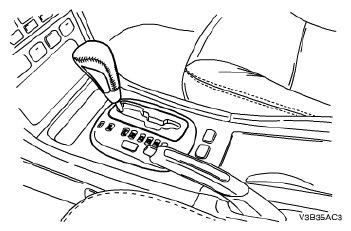

Fig 2: Identifying Shift Lever Gear Ranges
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.
Place a fluid container below the fluid level plug.
Remove the fluid level plug using the plug remover/installer DW260-070. Because the transaxle operates correctly over a range of levels, fluid may or may not drain out of the plug hole when the plug is removed.
WARNING: Do not remove the fluid level plug if the transaxle fluid is hot. This may cause injury if the fluid drains from the plug hole.

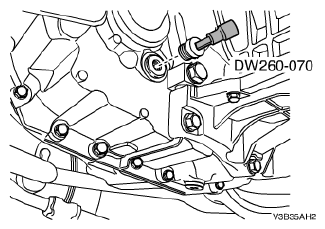

Fig 3: Identifying Fluid Level Plug & Plug Remover/Installer DW260-070
Courtesy of SUZUKI OF AMERICA CORP.
Check the oil fluid level. If fluid does not drain through the plug hole after adding a total of 4 liters, then the transaxle was either underfilled or the transaxle is leaking fluid. Inspect the transaxle for fluid leaks. Fix any leaks before setting the transaxle fluid level.

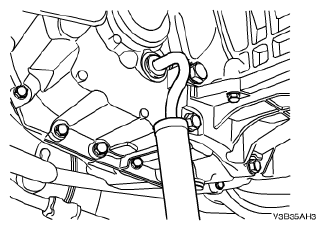

Fig 4: Filling Transaxle Fluid
Courtesy of SUZUKI OF AMERICA CORP.
Install the fluid level plug using the plug remover/installer DW260-070.
Tighten:

Tighten the Plug to 45 N.m (33 lb-ft).
When the fluid level checking procedure is completed, wipe any fluid from the transaxle case with a rag or shop towel. Also, check that the fluid fill cap and the vent tube are properly installed.

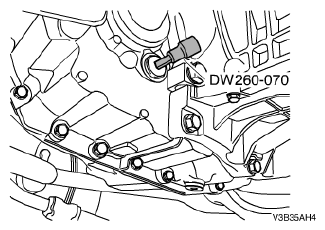

Fig 5: Identifying Fluid Level Plug & Plug Remover/Installer DW260-070

Courtesy of SUZUKI OF AMERICA CORP.
