Home >> Suzuki >> 2006 >> XL-7 4WD V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case
April 5, 2026: LEMON Manuals is launched! Read the announcement.

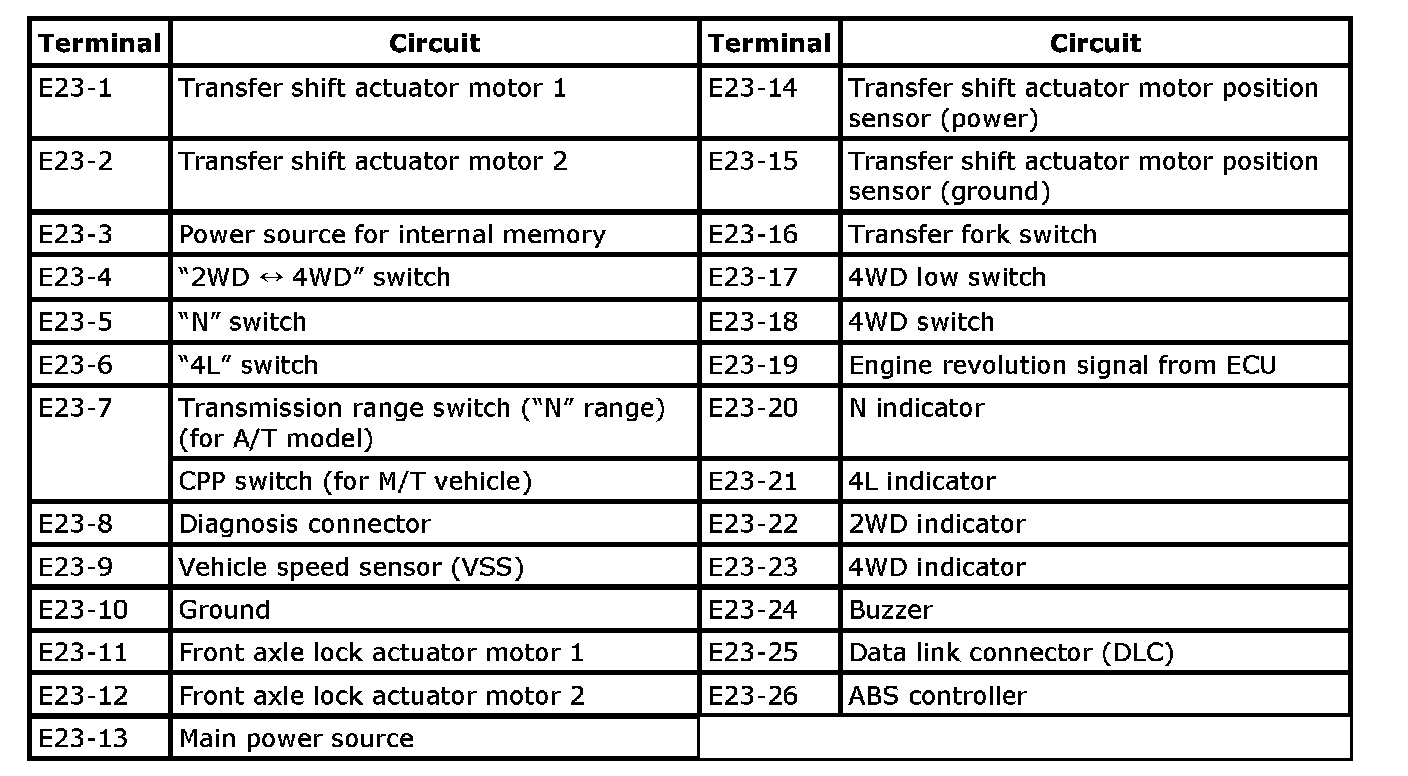

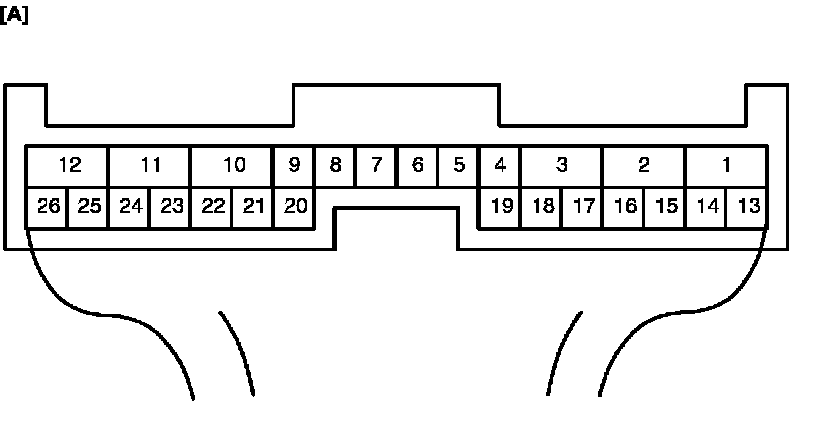

Control Module, Transfer Case
